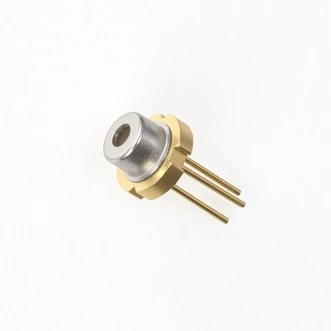

USHIO HL40033G 405nm 1000mW Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
The HL400 Violet Laser Diode is a cutting-edge component designed to deliver exceptional performance in a variety of applications. Operating at a wavelength of 405nm, this laser diode is engineered to provide a powerful optical output of up to 1,000mW, making it an ideal choice for industries requiring high precision and reliability. Its compact design, featuring a 9.0mm package, ensures easy integration into existing systems while maintaining optimal functionality.
One of the standout characteristics of the HL400 is its low operating current and voltage, which not only enhances efficiency but also reduces energy consumption. This makes it a sustainable option for businesses looking to minimize their environmental impact without compromising on performance. The laser diode's ability to operate in multiple transverse modes and its TE mode oscillation further contribute to its versatility and adaptability in various settings.
Designed for robustness, the HL400 can withstand a wide range of operating temperatures, ensuring consistent performance even in challenging environments. Its precise engineering and high-quality materials make it a reliable component for long-term use, providing users with peace of mind and a high return on investment. Whether used in direct imaging for PCBs, displays, or bio-medical applications, the HL400 Violet Laser Diode stands out as a superior choice for professionals seeking excellence in laser technology.
USHIO HL40033G 405nm 1000mW Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.405 um |
| Output Power: | 1000 mW |
| Package: | f9.0 mm |
| Operating Temperature: | 0 ~ +30 °C |
| Storage Temperature: | -40 ~ +85 °C |
| Threshold Current: | 250 - 400 mA |
| Operating Current: | 1,000 - 1,300 mA |
| Operating Voltage: | 5.0 V Max. |
| Beam Divergence Parallel To The Junction: | 5 - 25 ° |
| Beam Divergence Perpendicular To The Junction: | 30 - 50 ° |
| Lasing Wavelength: | 400 - 410 nm |
Features
- High Optical Output Power: Delivers up to 1,000 mW CW at 405 nm for demanding optical applications.
- Low Operating Current: Typical operating current of 1,000 mA for efficient power usage.
- Low Operating Voltage: Operates at a maximum of 5.0 V for reduced energy consumption.
- TE Mode Oscillation: Ensures stable polarization and beam quality.
- Multiple Transverse Mode: Provides uniform beam profile for precise applications.
- Compact φ9.0 mm Package: Facilitates easy system integration and thermal management.
Applications
- Direct Imaging for PCB: Provides precision violet laser output for high-resolution printed circuit board imaging.
- Industrial Processing: Suitable for material marking, inspection, and micro-fabrication.
- Display Systems: Enables vivid, high-definition projection and display applications.
- Bio & Medical Equipment: Supports fluorescence excitation and biomedical imaging.
Frequently Asked Questions
The applications of the USHIO HL40033G laser diode include direct imaging for PCB, industry, display, and bio & medical.
The lasing wavelength of the USHIO HL40033G laser diode is 405nm Typ.
The operating current of the USHIO HL40033G laser diode is 1,000mA Typ.
The operating voltage of the USHIO HL40033G laser diode is 5.0V Max.
The optical output power of the USHIO HL40033G laser diode is 1,000mW (CW).
