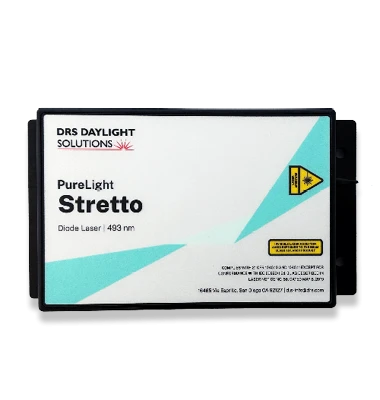

Stretto - External Cavity Diode Laser

Visit the DRS Daylight Solutions Store

Specifications

Center Wavelength: Not Specified
Output Power: Not Specified
Wavelength Coverage: 369 - 1800 nm
Typical Power Range: 10 – 300 mW
Typical Mode-hop Free Tuning Range: ≥ 50 GHz
Typical Free-running Linewidth (5 µs Integration Time): 100 kHz FWHM
Typical Output Beam Characteristics: Fiber-coupled: SM/PM fiber or Free-space: Circular, 1 mm FW @ 1 e2 diameter
Document icon Download Data Sheet Download icon

Features


  • Wide Wavelength Coverage: From 369 nm to 1800 nm, with options for free space and fiber-coupled outputs

  • Superior Frequency Tuning: Offering mode-hop-free tuning over > 50GHz

  • Ultra-Narrow Linewidth: Achieving a free-running linewidth of  100 kHz and closed-loop linewidths of < 1 kHz

  • Ease of integration: World-class current, piezo and temperature driver noise performance, combined with well-characterized servo behavior enables customers to lock the Stretto to their reference quickly and with confidence.

Applications


  • Quantum Computing

  • Optical Clocks

  • Quantum Sensing

  • Precision Spectroscopy

  • Quantum Defect Centers

  • Qubit Transduction

  • Quantum Networking
