Description
The RIO019X-X-XX-X devices are high-performance cost effective External Cavity Laser (ECL). The design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.
PLANEX™ laser combines high performance, comparable with long cavity fiber lasers, with the low cost, simplicity, small size and reliability of semiconductor lasers.
PLANEX™ laser is an ideal source for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing. Laser is available with various wavelength and output power options.

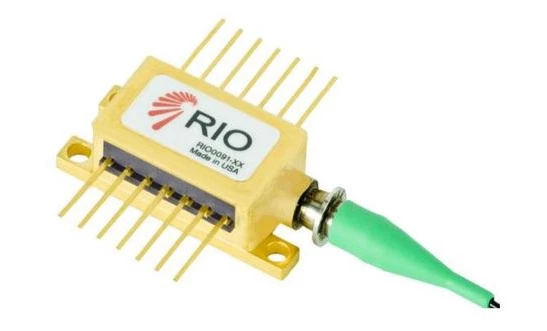

RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser (20mW)
RIO (OptaSense, Inc)
Specifications
| Center Wavelength: | 1.064 um |
|---|---|
| Output Power: | 20 mW |
| Threshold Current (typ.): | 30 mA |
| Laser Bias Current: | 100 mA |
| Wavelength Vs. TEC Temperature (Tset +/- 1 ºC): | 14 pm/ºC |
| Wavelength Tunability: | 20 pm |
| Relative Intensity Noise (>/= 1kHz): | -135 db/Hz |
Download Data Sheet
Features
- Single Longitudinal Mode: Ensures high precision and stability in laser operations.
- Center Wavelength: 1061nm-1067nm for specialized applications.
- Narrow Linewidth, Long Coherence Length: Provides exceptional performance in demanding environments.
- Low Phase Noise: Ideal for applications requiring high signal integrity.
- Wavelength Tunability: Offers flexibility for various applications.
- Very Low RIN: Reduces noise for clearer signal output.
- Excellent SMSR: Superior side-mode suppression ratio for enhanced performance.
- Excellent Wavelength Stability: Maintains performance over life and temperature variations.
- Low Sensitivity to Vibration and Acoustic Noise: Ensures reliability in dynamic environments.
- CW, Modulated, and Pulsed Operations: Versatile for different operational needs.
- Small Form Factor: Compact 14-pin butterfly package for easy integration.
- Low Power Dissipation: Energy-efficient design.
- SMF and PM Fiber Pigtail Options: Provides connectivity flexibility.
- Designed for Telcordia GR-468: Meets rigorous industry standards for reliability.
- RoHS Compliant: Environmentally friendly design.
Applications
- Seeding of fiber and solid state lasers
- Second Harmonic Generation (SHG)
- Optical Parametric Oscillators (OPOs)
- LIDAR
- Laser Spectroscopy
- Metrology
Frequently Asked Questions
What is the wavelength range of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser?
The center wavelength range of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is 1061 nm-1067 nm.
What are the applications of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser?
The RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is ideal for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing.
What are the features of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser?
The RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser features single longitudinal mode, narrow linewidth, long coherence length, low phase noise, wavelength tunability, very low RIN, excellent SMSR, excellent wavelength stability over life and temperature, low sensitivity to vibration and acoustic noise, CW, modulated and pulsed operations, small form factor, low power dissipation, SMF and PM fiber pigtail options, and is designed for Telcordia GR-468 and RoHS compliant.
What is the design of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser based on?
The design of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.
Is the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser available with various wavelength and output power options?
Yes, the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is available with various wavelength and output power options.
