Description
The RIO019X-X-XX-X devices are high-performance cost effective External Cavity Laser (ECL). The design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.
PLANEX™ laser combines high performance, comparable with long cavity fiber lasers, with the low cost, simplicity, small size and reliability of semiconductor lasers.
PLANEX™ laser is an ideal source for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing. Laser is available with various wavelength and output power options.
RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser (10mW)
Specifications |
|
|---|---|
| Center Wavelength: | 1.064 um |
| Output Power: | 10 mW |
| Threshold Current: | 30 mA |
| Laser Bias Current: | 100 mA |
| Wavelength Vs. TEC Temperature (Tset +/- 1 ºC): | 14 pm/ºC |
| Wavelength Tunability: | 20 pm |
| Relative Intensity Noise (>/= 1kHz): | -135 db/Hz |
Features
- Single Longitudinal Mode: Ensures high precision and stability for various applications.
- Center Wavelength: 1061nm-1067nm, ideal for a range of optical applications.
- Narrow Linewidth, Long Coherence Length: Provides superior performance in demanding environments.
- Low Phase Noise: Enhances signal clarity and reduces interference.
- Wavelength Tunability: Offers flexibility for different operational needs.
- Very Low RIN: Minimizes relative intensity noise for improved signal quality.
- Excellent SMSR: High side-mode suppression ratio ensures a clean signal.
- Excellent Wavelength Stability: Maintains performance over life and temperature variations.
- Low Sensitivity to Vibration and Acoustic Noise: Ensures stable operation in various environments.
- CW, Modulated and Pulsed Operations: Versatile for different application requirements.

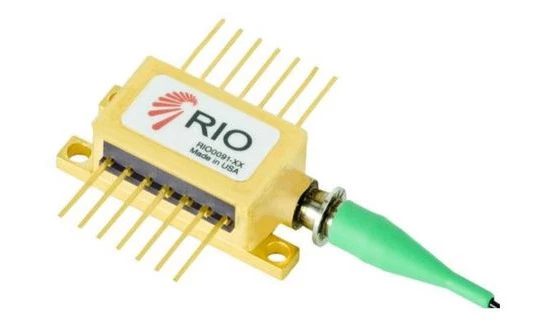

- Small Form Factor: 14-pin butterfly package for compact integration.
- Low Power Dissipation: Energy-efficient design reduces operational costs.
- SMF and PM Fiber Pigtail Options: Provides flexibility in fiber connectivity.
- Designed for Telcordia GR-468: Ensures high reliability and performance standards.
- RoHS Compliant: Environmentally friendly and adheres to safety standards.
Applications
- Seeding of fiber and solid state lasers
- Second Harmonic Generation (SHG)
- Optical Parametric Oscillators (OPOs)
- LIDAR
- Laser Spectroscopy
- Metrology
Frequently Asked Questions
The center wavelength of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is between 1061 nm-1067 nm.
The RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is ideal for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing.
The features of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser include single longitudinal mode, narrow linewidth, long coherence length, low phase noise, wavelength tunability, very low RIN, excellent SMSR, excellent wavelength stability over life and temperature, low sensitivity to vibration and acoustic noise, CW, modulated and pulsed operations, small form factor, 14 pin butterfly, low power dissipation, SMF and PM fiber pigtail options, and designed for Telcordia GR-468.
The design of the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.
Yes, the RIO PLANEX™ 1064nm Narrow Linewidth External Cavity Laser is RoHS compliant.
