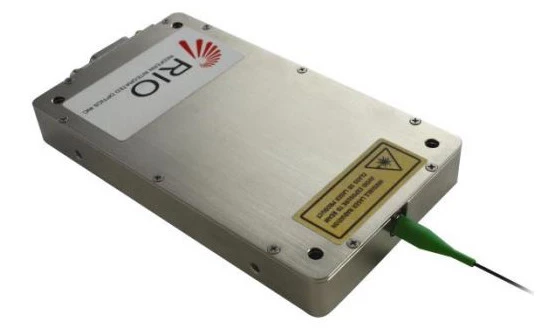

RIO ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module (20mW)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
RIO (OptaSense, Inc) -
On FindLight:
since 2015
Description
The ORION™ devices are compact laser modules employing the RIO high-performance External Cavity Laser (ECL). This laser design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages. The ORION™ modules provide a stable, self-contained, easy-to-use alternative to complicated, sensitive to the ambient environment and expensive fiber laser sources, or other narrow linewidth laser alternatives.
The ORION™ module uses reliable, Telcordia qualified and industry proven components, and employs low noise, digital laser bias current and temperature control circuitry to set and monitor laser performance. External monitoring and control can be accomplished via standard interfaces, using RIO-supplied software.
The ORION™ module is an ideal source for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing.
RIO ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module (20mW)
Specifications |
|
|---|---|
| Center Wavelength: | 1.064 um |
| Output Power: | 20 mW |
| Power Stability Over Case Temperature Range (5 To +50 ºC): | +/- 20 % |
| Wavelength Tuning Range:: | 20 pm |
| Wavelength Stability Over Case Temperature Range (5 To +50 ºC): | ±50 pm |
| Relative Intensity Noise (>1kHz): | -135 dB/Hz |
| Side Mode Suppression Ratio: | 50 dB |
| Optical S/N Ratio: | 60 dB |
Features
- Single Longitudinal Mode: Ensures a stable and precise laser output.
- Center Wavelength: 1061nm-1067nm, ideal for various applications.
- Very Low Phase Noise: Enhances performance in sensitive applications.
- Very Narrow Linewidth: Provides a long coherence length for improved accuracy.
- Ultra Low RIN: Reduces noise for clearer signals.
- Excellent SMSR: Ensures high signal-to-noise ratio.
- Unmatched Wavelength Stability: Maintains performance over life and temperature variations.
- Wavelength Tunability: Offers flexibility for different applications.
- Direct Power Modulation: Allows for precise control of laser output.
- Low Sensitivity to Vibration and Acoustic Noise: Ensures stable operation in various environments.
- SMF and PM Fiber Pigtail Options: Provides versatility in fiber connections.
- Compact Size, Low Power Dissipation: Ideal for space-constrained and energy-efficient setups.
- Easy to Set-Up and Use: Simplifies integration into existing systems.
- Digital Controller and Firmware: Offers multiple interface options (SPI, RS-232, RS-485) for ease of use.
- Telcordia GR-468 Qualified: Ensures reliability and quality.
- RoHS Compliant: Meets environmental and safety standards.
Applications
- Seeding of fiber and solid state lasers
- Second Harmonic Generation (SHG)
- Optical Parametric Oscillator (OPOs)
- LIDAR
- Laser Spectroscopy
- Metrology
Frequently Asked Questions
The center wavelength of the ORION™ laser module is between 1061nm-1067nm.
The ORION™ laser module is ideal for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing.
The ORION™ laser module has unmatched wavelength stability over life and temperature.
The ORION™ laser module comes with a digital controller and firmware with multiple interface options such as SPI, RS-232, and RS-485.
The ORION™ laser module has a power output of 20mW.
