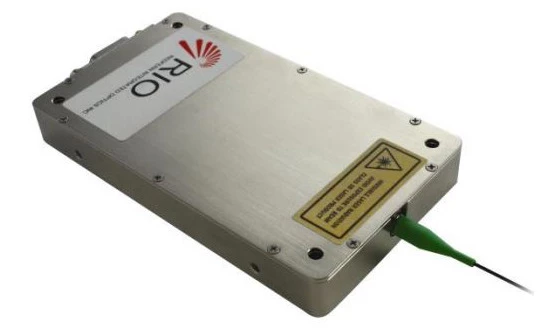

RIO ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module (10mW)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
RIO (OptaSense, Inc) -
On FindLight:
since 2015
Description
The ORION™ devices are compact laser modules employing the RIO high-performance External Cavity Laser (ECL). This laser design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages. The ORION™ modules provide a stable, self-contained, easy-to-use alternative to complicated, sensitive to the ambient environment and expensive fiber laser sources, or other narrow linewidth laser alternatives.
The ORION™ module uses reliable, Telcordia qualified and industry proven components, and employs low noise, digital laser bias current and temperature control circuitry to set and monitor laser performance. External monitoring and control can be accomplished via standard interfaces, using RIO-supplied software. T
he ORION™ module is an ideal source for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing.
RIO ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module (10mW)
Specifications |
|
|---|---|
| Center Wavelength: | 1.064 um |
| Output Power: | 10 mW |
| Power Stability Over Case Temperature Range (5 To +50 ºC): | +20 % |
| Wavelength Tuning Range: | 20 pm |
| Wavelength Stability Over Case Temperature Range (5 To +50 ºC): | ±50 pm |
| Relative Intensity Noise (>1kHz): | dB/Hz |
| Side Mode Suppression Ratio: | 50 dB |
| Optical S/N Ratio: | 60 dB |
Features
- Single Longitudinal Mode: Ensures stable laser performance with minimal interference.
- Center Wavelength: Ranges from 1061nm to 1067nm, ideal for various applications.
- Very Low Phase Noise: Enhances signal quality and precision.
- Very Narrow Linewidth: Provides long coherence length for accurate measurements.
- Ultra Low RIN: Reduces intensity noise for improved performance.
- Excellent SMSR: Superior side mode suppression ratio for clear signal output.
- Unmatched Wavelength Stability: Maintains consistent performance over time and temperature changes.
- Wavelength Tunability: Allows for precise adjustments to meet specific needs.
- Direct Power Modulation: Offers control over output power for dynamic applications.
- Very Low Sensitivity to Vibration and Acoustic Noise: Ensures stable operation in varying environments.
- SMF and PM Fiber Pigtail Options: Provides flexibility for different fiber optic setups.
- Compact Size and Low Power Dissipation: Ideal for space-constrained applications.
- Easy to Set-Up and Use: User-friendly design for quick deployment.
- Digital Controller and Firmware: Multiple interface options including SPI, RS-232, RS-485 for versatile connectivity.
- Telcordia GR-468 Qualified: Meets industry standards for reliability and performance.
- RoHS Compliant: Environmentally friendly design adhering to regulations.
Applications
- Seeding of fiber and solid state lasers
- Second Harmonic Generation (SHG)
- Optical Parametric Oscillator (OPOs)
- LIDAR
- Laser Spectroscopy
- Metrology
Frequently Asked Questions
The center wavelength of the ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module is between 1061nm-1067nm.
What are the applications of the ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module?
The ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module is ideal for seeding of high power fiber and solid state lasers, second harmonic generation and optical parametric oscillators, spectroscopy and other industrial and scientific applications, coherent Doppler LIDAR, metrology and optical sensing.
The ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module features single longitudinal mode, very low phase noise, very narrow linewidth, long coherence length, ultra-low RIN, excellent SMSR, unmatched wavelength stability over life and temperature, wavelength tunability, direct power modulation, very low sensitivity to vibration and acoustic noise, SMF and PM fiber pigtail options, compact size, low power dissipation, and easy to set-up and use.
The ORION™ Series 1064nm Low Phase Noise Narrow Linewidth Laser Module employs low noise, digital laser bias current and temperature control circuitry to set and monitor laser performance.
External monitoring and control can be accomplished via standard interfaces, using RIO-supplied software. The digital controller and firmware have multiple interface options (SPI, RS-232, RS-485).
