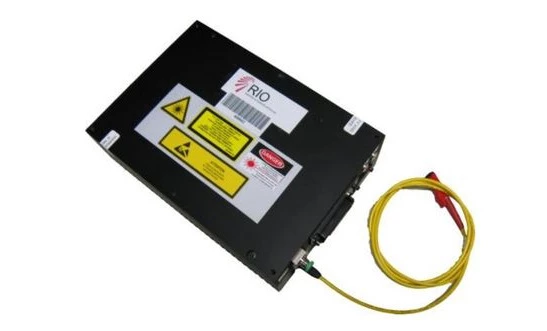

RIO GRANDE 1550 nm High Power Low Phase Noise Narrow Linewidth Laser Module (2W)

Name: RIO GRANDE 1550 nm High Power Low Phase Noise Narrow Linewidth Laser Module (2W)
Brand: RIO (OptaSense, Inc)
Availability: InStock

Description

The RIO GRANDE devices are high power laser modules employing the RIO high-performance External Cavity Laser (ECL). This laser design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.

RIO high power narrow linewidth laser is integrated with high performance low noise EDFA. It provides narrow linewidth, low phase noise, ultra low RIN, high output power and exceptionally reliable performance. An integrated RS232 interface enables easy control, diagnostic functions and data acquisition. The RIO high power module is an ideal candidate for OEM commercial and military fiber optic sensing, such as interferometric and Brillouin sensing systems for oil & gas, security, and also for metrology, LIDAR and other applications.

Specifications

Center Wavelength:	1.55 um
Output Power:	2000 mW
Output Power Adjustment Range:	%
Wavelength Stability:	+/- 10 pm
Relative Intensity Noise (>/= 100Hz):	-110 db/Hz
Relative Intensity Noise (>/= 10kHz):	-125 dB/Hz
Relative Intensity Noise (800kHz To 50MHz):	-157 dB/Hz
Side Mode Suppression Ratio:	50 dB
Optical S/N Ratio:	55 dB

Download Data Sheet

Features

Single Longitudinal Mode: Ensures high precision and stability
Center Wavelength: 1545nm-1565nm, ITU-T DWDM 100 GHz C-band or custom options available
Very Low Phase Noise: Minimizes signal distortion for clearer transmission
Ultra Low RIN: Provides superior noise performance
Narrow Linewidth: Offers enhanced resolution and accuracy
High SMSR: Ensures high spectral purity
High OSNR: Delivers excellent signal quality
Excellent Wavelength Stability: Maintains performance over life and temperature variations
SMF and PM Fiber Options: Flexible integration with various fiber types
Easy to Set-up and Use: User-friendly design for quick deployment
Digital Controller and Firmware with RS-232: Simplifies control and diagnostics
ROHS Compliant: Environmentally friendly and safe

Applications

Acoustic & seismic interferometric fiber optic sensing
Defense and security
Oil & Gas – exploration and production
LIDAR
Metrology

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RIO (OptaSense, Inc)

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the center wavelength of the RIO GRANDE laser module?

The center wavelength of the RIO GRANDE laser module is 1545nm-1565nm, ITU-T DWDM 100 GHz C-band or custom.

What are the applications of the RIO GRANDE laser module?

The RIO GRANDE laser module is suitable for acoustic & seismic interferometric fiber optic sensing, defense and security, oil & gas exploration and production, LIDAR, and metrology.

What are the key features of the RIO GRANDE laser module?

The key features of the RIO GRANDE laser module include single longitudinal mode, very low phase noise, ultra low RIN, narrow linewidth, high SMSR, high OSNR, excellent wavelength stability over life and temperature, SMF and PM fiber options, easy to set-up and use, digital controller and firmware with RS-232, and ROHS compliant.

What is the technology used in the RIO GRANDE laser module?

The RIO GRANDE laser module is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.

What is the output power of the RIO GRANDE laser module?

The RIO GRANDE laser module provides high output power and exceptionally reliable performance. However, the output power is not specified in the product description.
