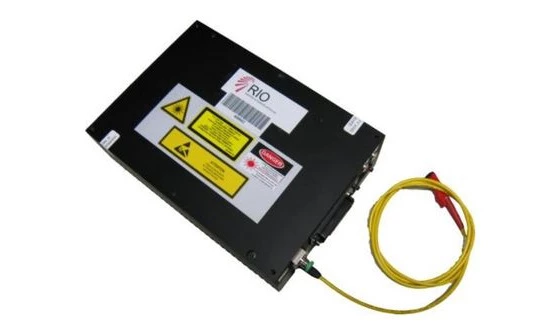

RIO GRANDE 1550 nm High Power Low Phase Noise Narrow Linewidth Laser Module (1W)

Name: RIO GRANDE 1550 nm High Power Low Phase Noise Narrow Linewidth Laser Module (1W)
Brand: RIO (OptaSense, Inc)
Availability: InStock

Description

The RIO GRANDE devices are high power laser modules employing the RIO high-performance External Cavity Laser (ECL). This laser design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.

RIO high power narrow linewidth laser is integrated with high performance low noise EDFA. It provides narrow linewidth, low phase noise, ultra low RIN, high output power and exceptionally reliable performance. An integrated RS232 interface enables easy control, diagnostic functions and data acquisition. The RIO high power module is an ideal candidate for OEM commercial and military fiber optic sensing, such as interferometric and Brillouin sensing systems for oil & gas, security, and also for metrology, LIDAR and other applications

Specifications

Center Wavelength:	1.55 um
Output Power:	1000 mW
Output Power Adjustment Range:	%
Wavelength Stability:	+/- 10 pm
Relative Intensity Noise (>/= 100Hz):	-110 dB/Hz
Relative Intensity Noise (>/= 10kHz):	-125 dB/Hz
Relative Intensity Noise (800kHz To 50MHz):	-157 db/Hz
Side Mode Suppression Ratio:	50 dB
Optical S/N Ratio:	55 dB

Download Data Sheet

Features

Single Longitudinal Mode: Ensures precision and stability in laser applications
Center Wavelength: 1545nm-1565nm, ITU-T DWDM 100 GHz C-band or custom configurations available
Very Low Phase Noise: Provides superior signal integrity and performance
Ultra Low RIN (Relative Intensity Noise): Enhances signal quality and reliability
Narrow Linewidth: Ideal for applications requiring high spectral purity
High SMSR (Side Mode Suppression Ratio): Ensures clear signal transmission with minimal interference
High OSNR (Optical Signal-to-Noise Ratio): Delivers excellent signal clarity
Excellent Wavelength Stability: Maintains performance over the device's lifetime and across temperature variations
SMF and PM Fiber Options: Provides flexibility for different application needs
Easy to Set-Up and Use: Simplifies integration into existing systems
Digital Controller and Firmware with RS-232: Facilitates easy control and diagnostics
ROHS Compliant: Meets environmental and safety standards

Applications

Acoustic & seismic interferometric fiber optic sensing
Defense and security
Oil & Gas – exploration and production
LIDAR
Metrology

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RIO (OptaSense, Inc)

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the center wavelength of the RIO GRANDE laser module?

The center wavelength is 1545nm-1565nm, ITU-T DWDM 100 GHz C-band or custom.

What are the applications of the RIO GRANDE laser module?

The RIO GRANDE laser module is ideal for acoustic & seismic interferometric fiber optic sensing, defense and security, oil & gas exploration and production, LIDAR, and metrology.

What are the key features of the RIO GRANDE laser module?

The key features of the RIO GRANDE laser module include single longitudinal mode, very low phase noise, ultra low RIN, narrow linewidth, high SMSR, high OSNR, excellent wavelength stability over life and temperature, and SMF and PM fiber options.

What is the output power of the RIO GRANDE laser module?

The RIO GRANDE laser module provides high output power.

What is the control interface for the RIO GRANDE laser module?

The RIO GRANDE laser module has an integrated RS232 interface for easy control, diagnostic functions, and data acquisition.
