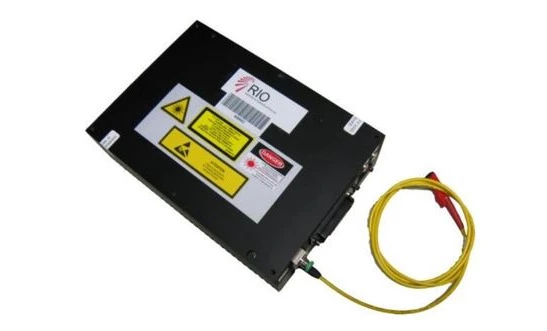

RIO GRANDE 1550 nm High Power Low Phase Noise Narrow Linewidth Laser Module (0.2W)

RIO (OptaSense, Inc)
REQUEST QUOTE
RIO GRANDE 1550 nm High Power Low Phase Noise Narrow Linewidth Laser Module (0.2W)

OVERVIEW

The RIO GRANDE devices are high power laser modules employing the RIO high-performance External Cavity Laser (ECL). This laser design is based on RIO’s proprietary planar technology (PLANEX™) and consists of a gain chip and a planar lightwave circuit including waveguides with Bragg gratings, forming a laser cavity with significant advantages.


RIO high power narrow linewidth laser is integrated with high performance low noise EDFA. It provides narrow linewidth, low phase noise, ultra low RIN, high output power and exceptionally reliable performance. An integrated RS232 interface enables easy control, diagnostic functions and data acquisition. The RIO high power module is an ideal candidate for OEM commercial and military fiber optic sensing, such as interferometric and Brillouin sensing systems for oil & gas, security, and also for metrology, LIDAR and other applications

SPECIFICATION

  • Center Wavelength: 1.550 um
  • Output Power: 200 mW
  • Optical S/N Ratio: 55 dB
  • Output Power Adjustment Range: 10 - 100 %
  • Wavelength Stability: +/- 10 pm
  • Relative Intensity Noise (>/= 100Hz): -110 db/Hz
  • Relative Intensity Noise (>/= 10kHz): -125 dB/Hz
  • Relative Intensity Noise (800kHz To 50MHz): -157 dB/Hz
  • Side Mode Suppression Ratio: 50 dB
Download Data Sheet

Applications

* Acoustic & seismic interferometric fiber optic sensing
* Defense and security
* Oil & Gas – exploration and production
* LIDAR
* Metrology

KEY FEATURES

* Single longitudinal mode
* Center wavelength: 1545nm-1565nm, ITU-T DWDM 100 GHz C-band or custom
* Very low phase noise
* Ultra low RIN
* Narrow linewidth
* High SMSR
* High OSNR
* Excellent wavelength stability over life and temperature
* SMF and PM fiber options
* Easy to set-up and use
* Digital controller and firmware with RS-232
* ROHS compliant
