Description
The RIO COLORADO widely tunable laser sources are compact benchtop lasers sources based on semiconductor external cavity laser technology.
Key characteristics:
* Wavelength tuning range: C-band, 1530nm-1565nm, including ITU wavelength
* L-band available
* Low phase / frequency noise
* Narrow linewidth, long coherence length
* Low relative intensity noise (RIN)
* High wavelength stability
* Frequency modulation
* AM trace tone
The RIO COLORADO laser source’s features provide end users with a stable, self-contained, easy-to-use alternative to complicated and expensive fiber laser or SSL sources. The RIO COLORADO laser source uses reliable, Telcordia qualified and industry proven components, and includes low noise laser bias current and temperature control circuitry and controllers to set and monitor laser performance.
External monitoring and control can be employed via a standard USB interface, using RIO-supplied software and GUI. The RIO COLORADO laser source is an ideal source for R&D and development of advanced fiber optic sensing and metrology applications, such as laser spectroscopy, interferometric/acoustic sensing, coherent communications, LIDAR and others.

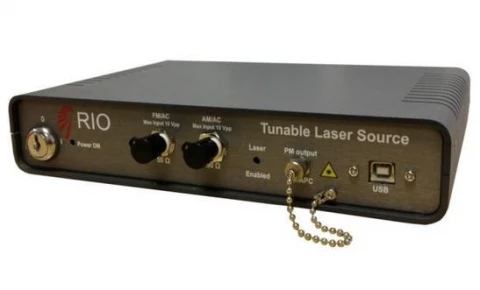

RIO COLORADO Widely Tunable 1550nm Narrow Linewidth Laser Source (C-Band)
Specifications |
|
|---|---|
| Center Wavelength: | 1.55 um |
| Output Power: | 20 mW |
| Output Power Range: | 5 – 20 mW |
| Wavelength Tuning Range (C-Band): | 1527.6 – 1565.6 |
| Side Mode Suppression Ratio: | 55 dB |
| Optical Signal To Noise Ratio: | 60 dB |
| Relative Intensity Noise (> 10kHz): | -140 db/Hz |
| Relative Intensity Noise (25MHz To 1GHz): | -165 db/Hz |
| Optical Isolation: | 30 dB |
| Linewidth, FWHM: | 25 kHz |
Features
* Wide wavelength tuning range across Cor L- band
* Single longitudinal mode
* Low phase and frequency noise
* Narrow linewidth, long coherence length
* Ultra low RIN
* Excellent SMSR
* PM output
* Fast FM modulation
* Compact size, low power consumption
* Easy to set-up and use
* Digital controller and firmware, USB interface, GUI
Applications
* Interferometric fiber optic sensing
* Acoustic sensing
* LIDAR
* Laser spectroscopy
* Metrology
* Coherent Communication
* Test & Measurement
Frequently Asked Questions
The wavelength tuning range is C-band, 1530nm-1565nm, including ITU wavelength. L-band is also available.
The key characteristics include low phase/frequency noise, narrow linewidth, long coherence length, low relative intensity noise (RIN), high wavelength stability, frequency modulation, and AM trace tone.
The applications include interferometric fiber optic sensing, acoustic sensing, LIDAR, laser spectroscopy, metrology, coherent communication, and test & measurement.
Yes, it comes with a digital controller and firmware, USB interface, and GUI.
The RIO COLORADO laser source has a compact size, low power consumption, and is easy to set up and use.
