OL(S) Series, Micro Channel Cooling, Housed Vertical Diode Stacks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Oriental-Laser (Beijing) Technology Co., Ltd. -
On FindLight:
since 2025
Description

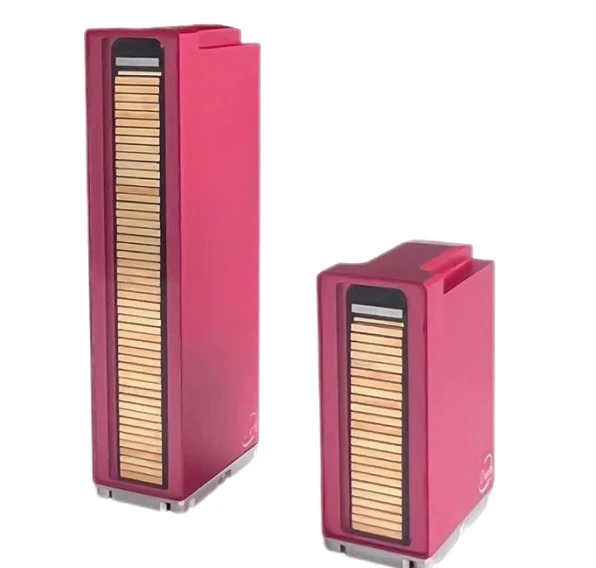

OL(S) Series Microchannel Cooling Housed Vertical Diode Stacks
The OL(S) Series by Oriental-laser (Beijing) Co., Ltd is a revolutionary advancement in diode stack technology, offering unparalleled performance and reliability. These diode stacks are engineered with cutting-edge microchannel cooling technology, ensuring optimal thermal management and enhanced durability. The fully sealed structure is designed to resist dust and water condensation, making it an ideal choice for demanding environments. With a capacity to support up to 64 bars vertically, the OL(S) Series provides flexibility and scalability for various industrial applications. Each device in the OL(S) Series delivers impressive continuous optical output power, ranging from 960W to 3000W per single device, with single-bar output power reaching up to 500W. This robust performance is complemented by the series' ability to achieve a maximum power of 25kW per device. The OL(S) Series is available in both continuous wave (CW) and quasi-continuous wave (QCW) operation modes, offering peak power levels from 2.4KW to 25KW with high duty cycles. Oriental-laser's commitment to quality and innovation is evident in the meticulous design and engineering of the OL(S) Series. The products are manufactured in a controlled environment to ensure the highest standards of performance and longevity, with an expected lifetime of 10,000 hours or 10⁹ shots. Whether you require standard configurations or customized solutions, Oriental-laser provides versatile options to meet specific customer requirements, ensuring that each product is tailored to deliver optimal results in its intended application.
OL(S) Series, Micro Channel Cooling, Housed Vertical Diode Stacks
Specifications |
|
|---|---|
| Center Wavelength: | 0.808 um |
| Output Power: | 40000 mW |
| Operation Mode: | CW |
| Power Per Sub-mounts: | 40 W |
| Central Wavelength³ At 25℃: | 808 ±3 nm |
| Number Of Sub-mounts In One Stack²: | 24 to 50 |
| Typical Pitch Per Bar: | 1.8 mm |
| Fast Axis Divergence (90%): | <70 or FAC <1 degrees |
| Slow Axis Divergence (90%): | <10 degrees |
| Spectral Width (FWHM): | <3 nm |
| Operating Current: | <40 A |
| Operating Voltage Per Bar: | <2 V |
| Expected Lifetime: | 10000 hours |
Features
- Microchannel Cooling Technology: Utilizes advanced microchannel cooling for efficient heat dissipation.
- Sealed Structure: Fully sealed against dust and water condensation for enhanced durability.
- Customizable Bar Configuration: Up to 64 bars vertically, with other quantities available upon request.
- High Optical Output Power: Continuous optical output power ranging from 960W to 3000W per single device.
- Powerful Single Bar Output: Single bar output power up to 500W, with maximum power of a single device reaching up to 25KW.
- Wide Range of Models: Various models available to suit different power and duty cycle requirements, including CW and QCW operation modes.
- Central Wavelength: 808±3 nm, with rainbow wavelengths selectable from 792 nm to 814 nm upon request.
- Efficient Cooling Requirements: Requires a flow rate of 1.5 L/min with deionized water, ensuring optimal performance.
- Long Lifetime: Expected lifetime of 10,000 hours or 10⁹ shots, providing reliable and long-lasting performance.
- Customizable Structural Options: Based on OL(S)-24 and OL(S)-50 structural designs, with customized options available for specific needs.
Applications
- Medical Applications: The diode stacks are suitable for various medical laser systems that require high precision and reliability.
- Industrial Applications: Ideal for materials processing, including cutting, welding, and engraving due to their high power output and durability.
- Scientific Research: Used in laboratories for experiments requiring consistent and precise optical power.
- Defense and Aerospace: Applicable in systems needing robust and reliable laser sources for targeting and communication.
- Telecommunications: Utilized in fiber optic communication systems for efficient signal transmission.
- Entertainment and Display: Suitable for laser shows and projection systems requiring high brightness and color precision.
Frequently Asked Questions
The peak power output can range from 2.4KW to 25KW depending on the model.
The OL(S) Series diode stacks use microchannel cooling technology.
The operating temperature range is +20 to 30°C, and the storage temperature range is 0 to 55°C.
The expected lifetime is 10,000 hours or 10⁹ shots.
Deionized water with 2-10 µs/cm conductivity and a particle filter of
Yes, custom configurations with different bar counts and structural options are available upon request.
The central wavelength is 808±3 nm, with selectable rainbow wavelengths from 792 nm to 814 nm upon request.
