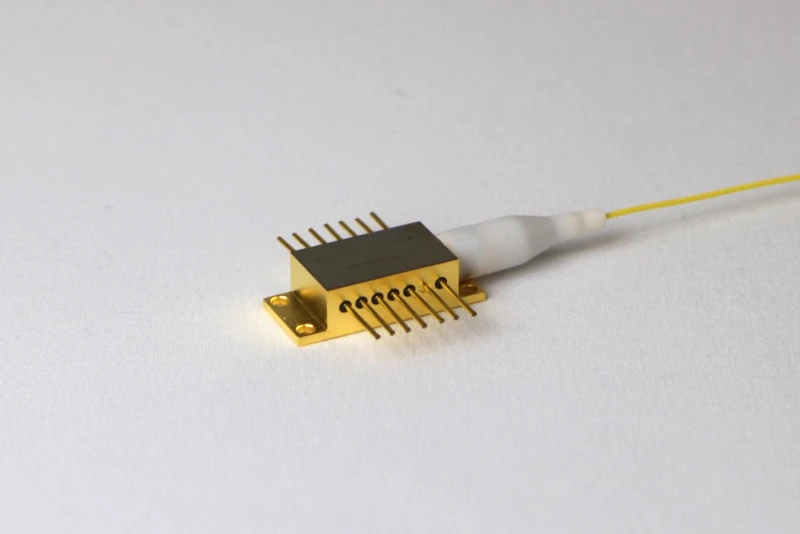

808nm wavelength-stabilized diode in 14-pins butterfly package

Name: 808nm wavelength-stabilized diode in 14-pins butterfly package
Brand: PhotonTech Berlin GmbH
Availability: InStock

Description

Wavelength stabilized diode provides narrow linewidth and very small wavelength drift against current and temperature. This 808nm laser diode comes in a 14-pin hermetically sealed butterfly package with built-in TEC, thermistor and photodiode. It emits max. 3.5W CW from a 105µm core and 0.22NA fiber. The wavelength starts to be locked typically from 1W at 30°C.

Specifications

Center Wavelength:	0.808 um
Output Power:	3500 mW
Wavelength Tolerance:	+/- 1.0 nm
Spectral Linewidth (FWHM):	1.0 nm
Fiber Core Diameter:	105 µm
Numerical Aperture:	0.22 -
Typical Threshold Current:	0.9 A
Typical Operating Current:	4.5 A
Typical Operating Voltage:	1.82 V
Maximum TEC Curent, Voltage:	2.2A, 8.7V
Fiber Connector (optional):	SMA905, FC/PC, FC/APC
Operating Temperature (built-in Thermistor):	25 - 40 °C
MTTF (100% -> 80% Power):	>10,000 hours (under normal operation)

Download Data Sheet

Features

Large wavelength range: typically starting from 1W to full 3.5W at 30°C (thermistor)

Small fiber core: 105µm

Fiber connector: SMA, FC/PC or FC/APC

Accessories: TEC, thermistor and photodiode

Compact size: 14-pin butterfly with dimension 30x12.7x8.0mm

Applications

Solid-state laser pumping

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Germany

Sold by:

PhotonTech Berlin GmbH

On FindLight:

since 2018

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the output power of the 808nm Wavelength Stabilized Laser Diode?

The output power of the laser diode is 3.5W.

What is the central wavelength of the laser diode?

The central wavelength of the laser diode is 808nm, with a range from 807.0nm to 809.0nm.

What is the core diameter of the fiber used in the laser diode?

The core diameter of the fiber is 105µm, with a range from 102µm to 108µm.

What are the operating temperature and humidity conditions for the laser diode?

The operating temperature for the thermistor is between 30°C and 40°C, and the operating humidity should be less than 75%.

What applications is the 808nm Wavelength Stabilized Laser Diode suitable for?

The laser diode is suitable for solid-state laser pumping applications.

Does the 808nm Wavelength Stabilized Laser Diode comply with IEC and CDRH requirements?

No, this laser is an OEM version and does not comply with IEC and CDRH requirements. The customer is responsible for certifications of the system that incorporates this laser.

What are the optional connectors available for the laser diode?

The optional connectors available are SMA905 and FC/PC.
