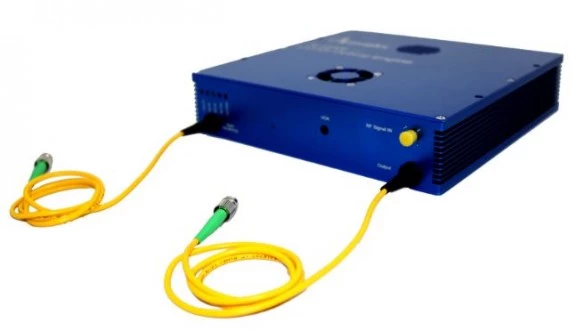

Amonics - Nanosecond Fiber Laser - ALiDAR-40-M-FA
Description
Amonics’ ALiDAR series is an eye-safe, single-mode, linearly polarized nanosecond, all fiber laser source with master-oscillator-power-amplifier. It is an ideal candidate for three dimensional imaging, wind detection and ranging (LiDAR) system. ALiDAR series is maintenance free. No after installation service is required. ALiDAR is ideal candidate for LIDAR applications.
Amonics - Nanosecond Fiber Laser - ALiDAR-40-M-FA
Specifications |
|
|---|---|
| Wavelength: | 1550 nm |
| Average Output Power: | 0.8 W |
| Pulse Duration: | 100-1000ns |
| Beam Quality (M^2): | 1.3 |
| Max Pulse Repetition Rate: | 20 kHz |
Features
- Pulse energy up to 150μJ
- Eye-safe 1550nm operation wavelength
- Linear polarization emission
- Pulse duration from 100 to 1,000ns
- Pulse repetition rate from 10 to 20kHz
- Narrow linewidth available, down to 1.6kHz
- Low RIN & phase noise
- Wide operating temperature range from -10 to +65 oC
- Maintenance free
Applications
- Wind-speed measurement
- Range finder
- Pollution monitoring
- 3D imaging
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The ALiDAR series is an eye-safe, single-mode, linearly polarized nanosecond, all fiber laser source with master-oscillator-power-amplifier. It is designed for three dimensional imaging, wind detection and ranging (LiDAR) system.
The ALiDAR series has pulse energy up to 150μJ, eye-safe 1550nm operation wavelength, linear polarization emission, pulse duration from 100 to 1,000ns, pulse repetition rate from 10 to 20kHz, narrow linewidth available down to 1.6kHz, low RIN & phase noise, wide operating temperature range from -10 to +65 oC, and is maintenance free.
The ALiDAR series is ideal for wind-speed measurement, range finder, pollution monitoring, and 3D imaging.
The product is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2015 certification applies to the Hong Kong production site only.
The specifications of the ALiDAR series include operation case temperature, storage case temperature, power supply, dimensions, power consumption, LED status indicators, remote control port, protection, cooling, output termination, and product code.
