Nanosecond Fiber Laser - ALiDAR-10-M-FA
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
The Amonics high-power fiber laser (ALiDAR) series is a cutting-edge solution designed to meet the demands of modern LiDAR systems. This series offers eye-safe, single-mode, linear polarized nanosecond-pulsed all-fiber laser sources with a master-oscillator-power-amplifier configuration. It is specifically crafted to enhance performance in three-dimensional imaging, wind detection, and ranging LiDAR applications. The ALiDAR series stands out for its maintenance-free operation, ensuring that no post-installation service is required, making it a versatile and durable choice for various LiDAR needs.
Manufactured under a stringent HKQAA ISO 9001 certified quality management system, the ALiDAR series guarantees high reliability and exceptional performance. The ISO 9001:2015 certification is applicable to the Hong Kong production site, ensuring that each unit is crafted with precision and quality. This series is ideal for those seeking a ready-to-use laser source that combines innovation with functionality.
With its robust design, the ALiDAR series operates efficiently across a wide temperature range, making it suitable for diverse environments. It is engineered to provide consistent performance with low relative intensity noise (RIN) and phase noise, ensuring precise and reliable measurements. The product's design emphasizes user convenience with remote control capabilities via RS232 and built-in protection features such as overheat auto shutdown, enhancing safety and ease of use.

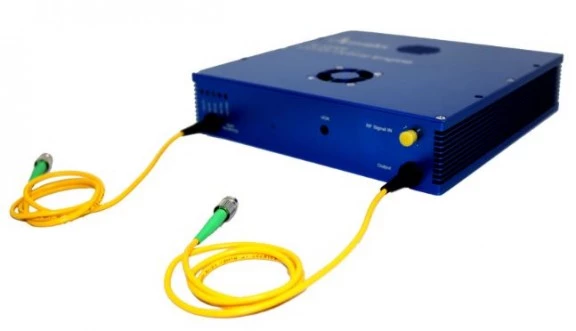

Nanosecond Fiber Laser - ALiDAR-10-M-FA
Specifications |
|
|---|---|
| Wavelength: | 1550 nm |
| Average Output Power: | 0.2 W |
| Pulse Duration: | 100 – 1000 ns |
| Beam Quality (M^2): | 1.1 |
| Max Pulse Repetition Rate: | 20 kHz |
Features
- Pulse Energy: Up to 150μJ
- Eye-Safe Wavelength: 1550nm
- Linear Polarization Emission: Ensures high-quality signal transmission
- Pulse Duration: From 100 to 500ns
- Pulse Repetition Rate: From 10 to 20kHz
- Narrow Linewidth: Down to 1.6kHz
- Low RIN & Phase Noise: For optimal performance
- Wide Operating Temperature: From -10 to +60°C
- Maintenance Free: No post-installation service required
- High Reliability: Designed for consistent performance
- Fiber Laser Module: Manufactured under a HKQAA ISO 9001 certified quality management system
- ISO 9001:2015 Certification: Applies to the Hong Kong production site only
Applications
- Wind-Speed Measurement: Ideal for Doppler LiDAR systems to measure atmospheric wind profiles accurately.
- Range Finder: Provides precise distance measurement capabilities for surveying and mapping.
- Pollution Monitoring: Enables accurate detection and measurement of pollutants in environmental monitoring.
- 3D Imaging: Supports high-resolution 3D scanning and imaging applications in industrial and research settings.
Frequently Asked Questions
The ALiDAR series is an eye-safe, single-mode, linearly polarized nanosecond, all fiber laser source with master-oscillator-power-amplifier. It is an ideal candidate for three dimensional imaging, wind detection and ranging (LiDAR) system.
The features of the ALiDAR series include pulse energy up to 150μJ, eye-safe 1550nm operation wavelength, linear polarization emission, pulse duration from 100 to 1,000ns, pulse repetition rate from 10 to 20kHz, narrow linewidth available down to 1.6kHz, low RIN and phase noise, wide operating temperature range from -10 to +65 oC, and maintenance-free.
The applications of the ALiDAR series include wind-speed measurement, range finder, pollution monitoring, and 3D imaging.
Yes, the ALiDAR series is versatile, ready-to-use, and durable laser source for various LiDAR applications. It is maintenance-free with no post-installation service required.
The product is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2015 certification applies to the Hong Kong production site only.
