Description

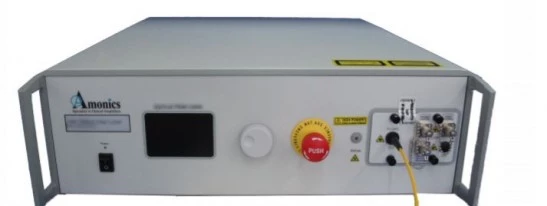

Introducing the Amonics Fiber Laser (AFL), a state-of-the-art, compact, standalone equipment engineered to deliver exceptional performance in various industrial applications. This high-power fiber laser offers up to 50W output power and 1mJ pulse energy, operating effectively in both continuous wave (CW) and pulse modes. Designed with a proprietary all-fiber architecture, the AFL ensures a maintenance-free experience, eliminating the need for post-installation servicing. The laser operates within the 1064nm and 1550nm wavelength ranges, making it versatile for a multitude of uses.
In pulse operation, the Amonics Fiber Laser achieves up to 20kW peak power with an adjustable pulse width ranging from 10ns to 1000ns. This flexibility is further enhanced by a pulse repetition rate that can be triggered externally via TTL signals, allowing for precise control and customization to suit specific application needs. The AFL’s robust design and high reliability make it an ideal choice for industries requiring precision and durability.
The Amonics Fiber Laser is manufactured under a HKQAA ISO 9001 certified quality management system, ensuring that each unit meets stringent quality standards. This certification applies specifically to the Hong Kong production site, underscoring Amonics' commitment to excellence. With features like optical feedback protection, back reflection monitoring, and turnkey operation, the AFL stands out as a superior solution for demanding environments. Whether used in micro-machining, marking, scribing, fiber optic sensing, or laboratory settings, the Amonics Fiber Laser delivers unparalleled performance and reliability.
1550nm 10W Pulsed Fiber Laser
Specifications |
|
|---|---|
| Wavelength: | 1550 nm |
| Average Output Power: | 10 W |
| Pulse Duration: | 10 – 1000 ns |
| Beam Quality (M^2): | 1.1 |
| Max Pulse Repetition Rate: | 100 kHz |
Features
- Compact and Standalone Design: The Amonics Fiber Laser (AFL) is a turnkey solution that offers a compact design suitable for various industrial applications.
- High Output Power: Delivers up to 50W output power and 1mJ pulse energy in the 1064nm and 1550nm range.
- CW and Pulse Operation: Supports both continuous wave (CW) and pulse operation modes.
- Tunable Pulse Width: Adjustable pulse width from 10ns to 1000ns, providing flexibility for different applications.
- Peak Power: Capable of delivering up to 20kW peak power in pulse operation.
- Optical Feedback Protection: Protects the laser from back reflections, ensuring stable performance.
- Back Reflection Monitoring: Continuous monitoring for enhanced reliability.
- Turnkey and Maintenance-Free: Designed for easy operation without the need for post-installation service.
- Polarization Options: Available with linear or random polarization to suit specific requirements.
- Highly Reliable and Durable: Built with a proprietary all-fiber design for long-lasting performance.
- ISO 9001 Certified: Manufactured under a HKQAA ISO 9001 certified quality management system.
- Wide Temperature Range: Operates efficiently within a temperature range of 0°C to +40°C.
- Remote Control Capability: Features RS232 and optional TCP/IP ethernet remote control ports.
- Versatile Output Termination: Offers collimator and bare fiber output terminations.
Applications
- Micro-machining: Ideal for precision cutting and structuring of materials.
- Marking: Provides high-quality laser marking for metals and polymers.
- Scribing: Enables fine scribing applications in manufacturing processes.
- Fiber Optic Sensing: Supports distributed and point fiber optic sensing systems.
- Laboratory Research: Suitable for experimental setups requiring tunable high power pulsed sources.
Frequently Asked Questions
The Amonics Fiber Laser can deliver up to 50W output power.
The Amonics Fiber Laser can deliver pulse energy up to 1mJ.
The Amonics Fiber Laser has an adjustable pulse width range from 10ns to 1000ns.
The Amonics Fiber Laser is suitable for a wide range of industrial applications such as micro-machining, marking, scribing, fiber optic sensing, and laboratory work.
Yes, the Amonics Fiber Laser is maintenance-free due to its proprietary all fiber design. No post-installation service is required.
