Description
Discover the cutting-edge technology of the Semiconductor Optical Amplifier (SOA), a pivotal component in modern optical communication systems. This advanced amplifier is meticulously engineered to enhance optical signal strength, ensuring robust performance in a variety of network environments. With its polarization maintaining capabilities, the SOA offers high fiber-to-fiber gain, making it an excellent choice for applications requiring increased optical launch power to offset losses from other optical components.

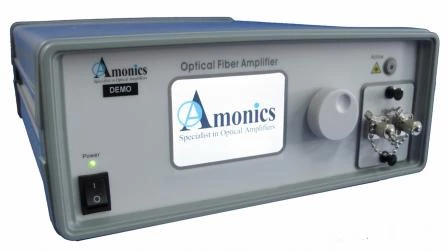

The SOA is available in a benchtop version, designed with user convenience in mind. It features a user-friendly front panel that includes an LCD monitor display, a key switch, a power control knob, and optical connectors, ensuring seamless operation and control. Additionally, the rear panel is equipped with an RS232 computer interface, providing enhanced connectivity options. This version supports 1MHz with 10ns pulse width intensity modulation, offering flexibility and precision for various applications. For system integrators, the SOA is also offered in an OEM module version, ideal for seamless integration into existing systems, especially in optical communication networks and CATV applications.
This compact module requires only a single +5V power supply, highlighting its efficiency and ease of use. Manufactured under a HKQAA ISO 9001 certified quality management system, the SOA guarantees reliability and quality, making it a trusted choice for professionals seeking dependable optical amplification solutions.
Semiconductor Optical Amplifier - ASOA98 - 20
Specifications |
|
|---|---|
| Amplifier Type: | SOA - Semiconductor Optical Amplifier |
| Wavelength Range: | 960 – 1000 nm |
| Max Output Power: | 11 dBm |
| Nominal Gain: | 20 dB |
| Output Fiber Type: | SMF-28 |
Features
- Wavelength Coverage: Supports 1310nm and 1550nm wavelengths for versatile applications.
- High Fiber-to-Fiber Gain: Ensures efficient signal amplification.
- Pulsed Operation: Operates at 1MHz with 10ns pulse width, suitable for various modulation needs.
- Modulation Capability: Offers intensity modulation for enhanced performance.
- PM Panda Fiber Input: Provides polarization maintaining fiber input for stable signal quality.
- Good Spectral Stability: Maintains consistent performance across the spectrum.
- Compact Size: Designed for space-constrained environments.
- Cost-Effective Performance: Delivers a good performance-to-cost ratio.
- User-Friendly Design: Benchtop version includes an LCD monitor display, key switch, and power control knob.
- OEM Module Option: Ideal for system integration with a single +5V power supply requirement.
- Quality Assurance: Manufactured under HKQAA ISO 9001 certified quality management system.
Applications
- Booster Amplification: Enhances signal power in WDM metro network systems for extended reach.
- In-Line Amplification: Compensates for network losses to maintain signal integrity over long distances.
- Network Loss Compensation: Supports stable optical communication by offsetting component insertion losses.
- CATV Systems: Ideal for integration in cable television networks requiring stable amplification.
- OEM System Integration: Compact module design suited for integration into customized optical devices and systems.
Frequently Asked Questions
The Amonics Semiconductor Optical Amplifier is used to increase optical launch power to compensate for the loss of other optical devices in transmitter applications.
The fiber-to-fiber gain of the Amonics Semiconductor Optical Amplifier varies depending on the model, but it ranges from 15dB to 20dB.
The Amonics Semiconductor Optical Amplifier has 1MHz with 10ns pulse width intensity modulation available.
The Amonics Semiconductor Optical Amplifier requires only a single +5V power supply with low power consumption.
The Amonics Semiconductor Optical Amplifier is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
