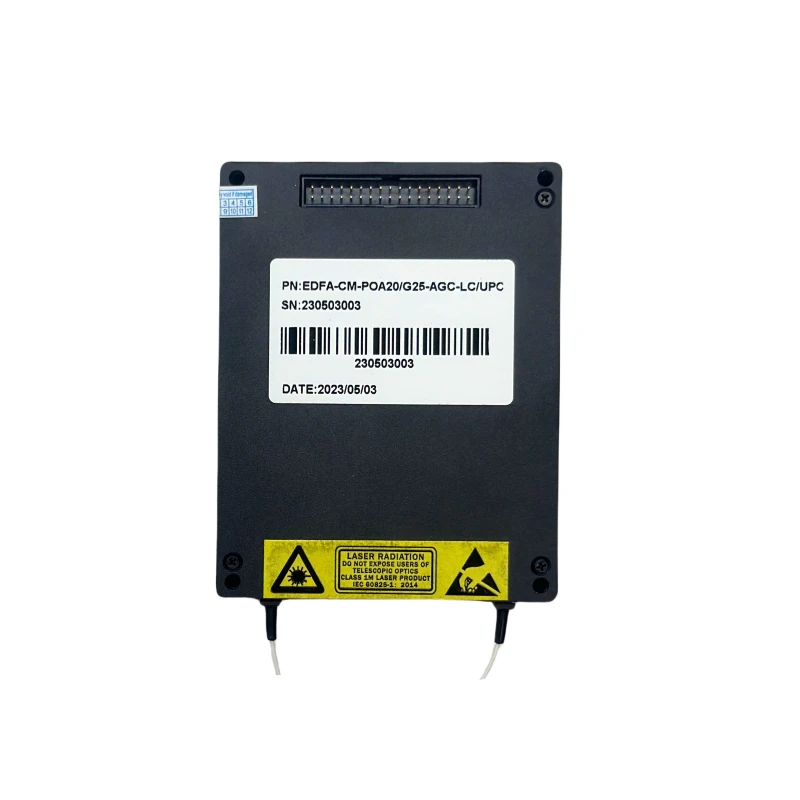

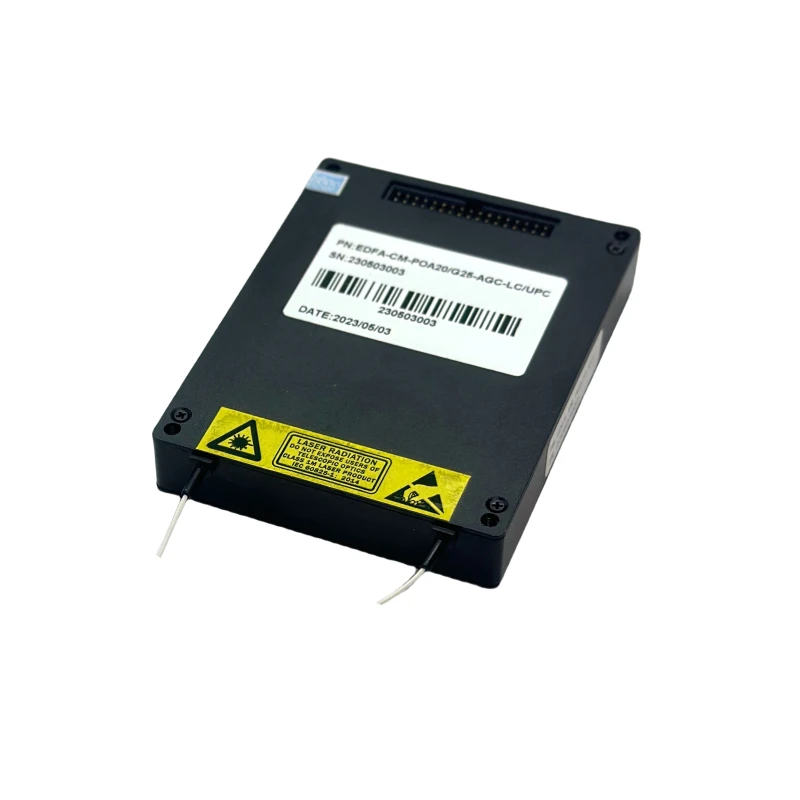

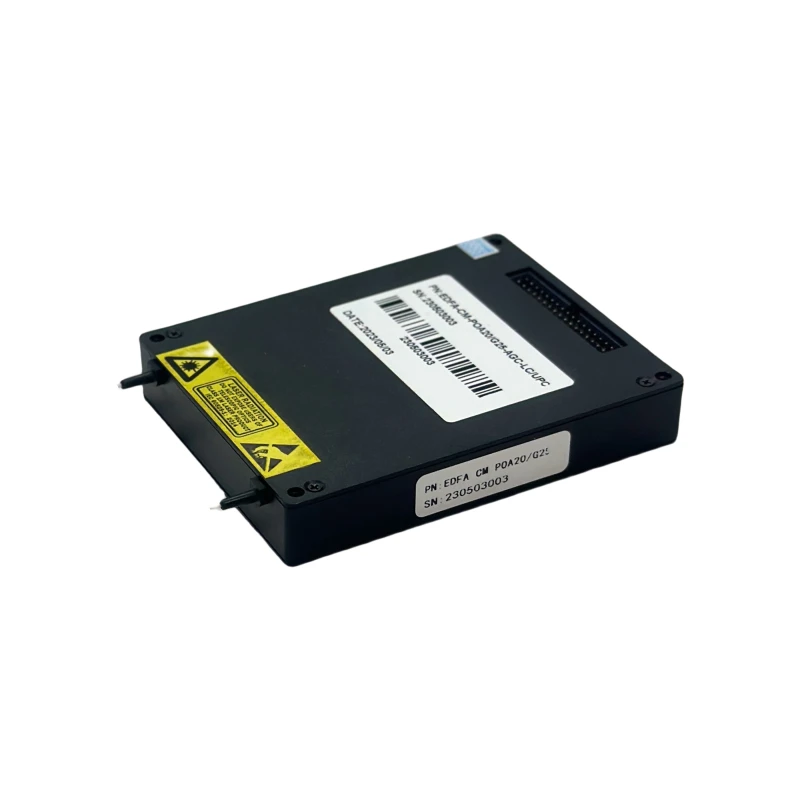

Compact DWDM EDFA Module for Transmission Systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Shandong Wanshuo Optoelectronic Equipment Co., Ltd. -
On FindLight:
since 2025
Description
The FGA-MSA-EDFA is a sophisticated optical amplifier designed specifically for Dense Wavelength Division Multiplexing (DWDM) transmission systems. This product is engineered to seamlessly integrate into EDFA cards or racks, offering flexibility to meet diverse customer application requirements. Its compatibility with compact MSA sizes ensures that it can be easily incorporated into existing systems without requiring significant modifications.
One of the standout features of the FGA-MSA-EDFA is its broad range of working wavelengths, which enhances its versatility in various optical networks. The device is capable of delivering high output optical power while maintaining low noise levels, making it an ideal choice for enhancing signal quality in demanding environments. Additionally, its low power consumption makes it an energy-efficient solution, aligning with modern sustainability goals.
Customizability is at the core of the FGA-MSA-EDFA, allowing it to be tailored to specific needs and preferences. This adaptability, combined with its adherence to industry standards such as Telcordia GR-1312-CORE and ROHS compliance, ensures that the product meets rigorous quality and safety benchmarks. The product's robust design is further complemented by its ability to operate efficiently across a wide temperature range, making it suitable for various climatic conditions.
The FGA-MSA-EDFA's compact size, measuring 90x70x15 mm, makes it an excellent choice for space-constrained environments. Its communication interface, featuring a 2.00 mm spacing male socket, facilitates easy integration and connectivity. The product's labeling and ordering options are customizable, providing additional flexibility to cater to specific operational requirements and preferences.
Compact DWDM EDFA Module for Transmission Systems
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1528 – 1565 nm |
| Min Input Power: | -33 dBm |
| Max Output Power: | 24 dBm |
| Nominal Gain: | 20 dB |
| Output Fiber Type: | PM980, PM980 Panda, PM1550-XP |
| Input Power: | -33 - +12 dBm |
| Output Power: | 10 - 24 dBm |
| Gain (electronics): | 10 - 33 dB |
| Noise Finger: | 5.5 6 dB |
| Gain Flatness: | 1.2 1.5 dB |
| Return Loss: | 45 - - dB |
| Polarization-Dependent Gain: | 0.5 dB |
| Operating Temperature: | -5 - +55 °C |
| Storage Temperature: | -40 - 85 °C |
| Relative Humidity (non-condensing): | 15 - 85 % |
| Product Size: | 90*70*15 mm |
| Power Consumption: | 10 W |
| Supply Voltage: | 4.75 5 5.25 V |
| Communication Level: | LVTTL/RS232 |
Features
- Product Overview: Designed for DWDM transmission systems, the FGA-MSA-EDFA can be integrated into EDFA cards or racks according to customer application requirements.
- Compact Compatibility: Compatible with compact MSA size.
- Wide Wavelength Range: Offers a wide range of working wavelengths from 1528 to 1565 nm.
- High Performance: Delivers high output optical power with low noise.
- Energy Efficient: Features low power consumption, operating at just 10 W.
- Customizable: Can be tailored to meet specific customer needs.
- Applications: Ideal for city area and access networks, as well as DWDM transmission systems.
- Industry Standards: Complies with Telcordia GR-1312-CORE and ROHS standards.
- Technical Parameters:
- Wavelength Coverage: 1528 - 1565 nm
- Input Power: -33 to +12 dBm
- Output Power: 10 to 24 dBm
- Gain (electronics): 10 to 33 dB
- Noise Figure: 5.5 to 6 dB
- Gain Flatness: 1.2 to 1.5 dB
- Return Loss: 45 dB
- Polarization-Dependent Gain: 0.5 dB
- Operating Temperature: -5 to +55 °C
- Storage Temperature: -40 to 85 °C
- Relative Humidity (non-condensing): 15 to 85%
- Product Size: 90 x 70 x 15 mm
- Supply Voltage: 4.75 to 5.25 V
- Communication Level: LVTTL/RS232
- Communication Pin Definition: Features a 2.00 mm spacing male socket with detailed pin descriptions for easy integration.
- Ordering Guide: Customize your order with specifications such as product model, output power, gain, wavelength range, fiber type, connector type, fiber length, and tube type.
- Customizable Labels: Product labels can be customized to suit your branding needs.
Applications
- Product Applications
- City area and access network
- DWDM, transmission system
Frequently Asked Questions
The FGA-MSA-EDFA is designed for DWDM transmission systems and can be integrated into EDFA cards or racks according to customer application requirements.
The key features include compatibility with compact MSA size, a wide range of working wavelengths, high output optical power, low noise, low power consumption, and customization options.
Typical applications include city area and access networks, as well as DWDM transmission systems.
The FGA-MSA-EDFA complies with Telcordia GR-1312-CORE and ROHS standards.
The wavelength coverage of the FGA-MSA-EDFA is from 1528 nm to 1565 nm.
The operating temperature range for the FGA-MSA-EDFA is from -5°C to +55°C.
The power consumption of the FGA-MSA-EDFA is 10 W.
