C-Band Erbium-Doped Fiber Booster Amplifier
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Shenzhen Box Optronics Technology Co.,Ltd. -
On FindLight:
since 2025
Description
BOX Optronics C-Band Erbium-doped Fiber Booster Amplifier squeezes up to 26 dBm of saturated power from a single 5 V supply while keeping noise below 5 dB.
Covering the full 1530-1565 nm window, the unit accepts -6 to +3 dBm input and delivers 15/17/20/23/25 or 26 dBm output simply by RS-232 command.

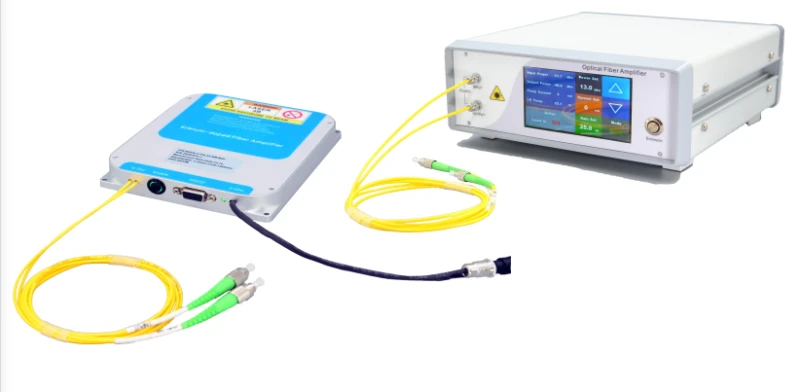

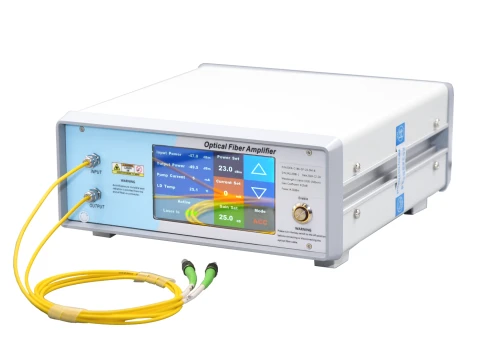

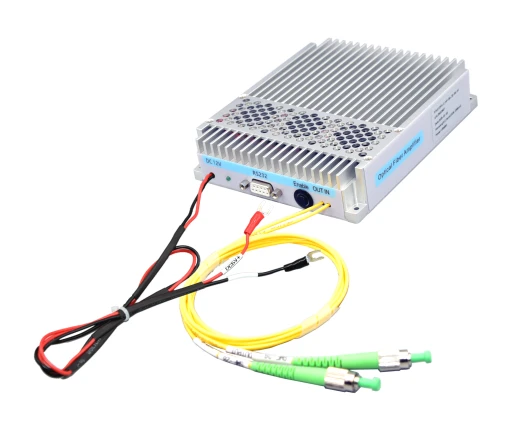

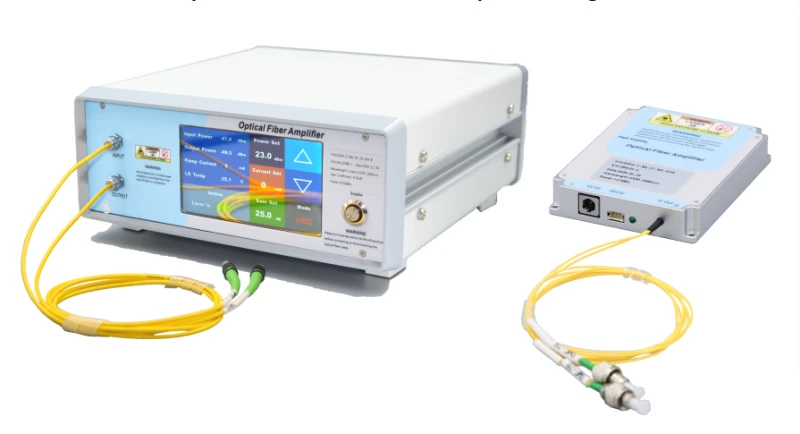

Packaged as a 125×150×20 mm plug-and-play module or a 260×280×120 mm benchtop box, it consumes <15 W and operates from -5 °C to +55 °C. APC and ACC loops hold power or current constant, PDG <0.3 dB and PMD <0.5 ps preserve signal integrity, and >35 dB isolation protects source and line.
SMF-28e fiber with FC/APC connectors, DB9 interface and AC/DC adapters are included. Use it as a booster after 10G/100G transceivers, a pre-amp for long-haul spans, or a gain block in fiber sensors and test beds where stable, high-power C-band light is demanded.
C-Band Erbium-Doped Fiber Booster Amplifier
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1530 – 1565 nm |
| Min Input Power: | -6 dBm |
| Max Output Power: | 26 dBm |
| Nominal Gain: | 23 dB |
| Output Fiber Type: | SMF-28 |
| Saturated Output Power: | 15/17/20/23/25/26 dBm |
| Noise Figure: | ≤5.0 dBm |
| Input/Output Isolation: | >35 dB |
| Fiber Type: | SMF-28e |
| Operating Mode: | ACC/APC |
| Dimensions 1.0: | Benchtop：260(W)×280(D)×120(H) mm |
Features
- Wide wavelength range;
- High output power;
- Low noise figure.
Applications
- Optical fiber communication;
- Optical fiber sensor;
- Fiber laser.
