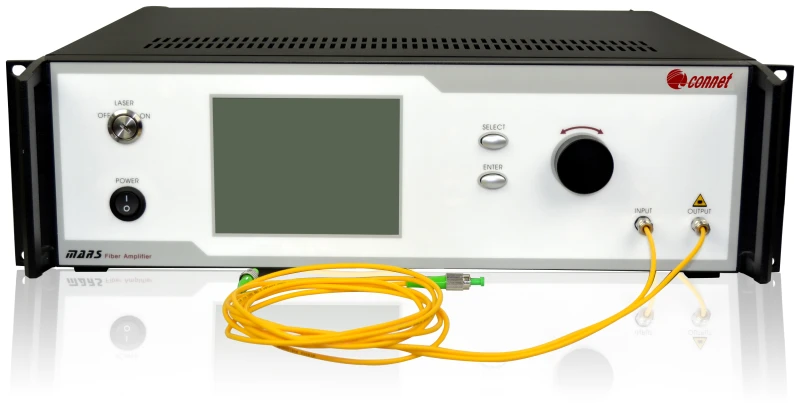

Thumbnail of MARS Series 1.5um High Power Pulsed Fiber Amplifier photo 1

Description

The MARS series 1.5um high power pulsed optical fiber amplifier of Connet Laser is an the eye-safe amplifier. The optical path structure is optimized according to short pulse signal amplification to suppress the generation of ASE efficiently. This series of amplifier employs the high-power, high-performance multi-mode pump laser inside.

The proprietary technology and peculiar devices guarantee the maximum optical-optical conversion efficiency and the minimum nonlinear effects during the process of amplification. The unique thermal treatment technology guarantees that the amplifiers can work stably for a long time.

The high-speed response protection circuit monitors the power of input and the output signal automatically to ensure the safety of the whole system. The MARS series high power pulse optical fiber amplifiers include the single-mode and the polarization output.

Different kinds of package types are available with benchtop or module. This series of amplifiers can be widely used in the areas of optical fiber communication, coherent combination and sensing and so on.

MARS Series 1.5um High Power Pulsed Fiber Amplifier

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Amplifier Type: YDFA - Ytterbium-Doped Fiber Amplifier
Wavelength Range: 1530 – 1561 nm
Max Output Power: 37 dBm
Nominal Gain: 30 dB
Output Fiber Type: PLMA, Single Mode, Other (see Data Sheet)
Part Number: MFAS-EY-C-PL (SM), MFAP-EY-C-PL (PM)
Average Power: 5 W
Peak Power: 30 kW
Pulse Width: 1 – 250 ns
Repetition Rate: 1-1000 kHz
Operation Mode: Pulse
Output Power Tunable Range: 10~100 %
Polarization: Random (SM) / Linear (PM)
Polarization Extinction Ratio (PER): ≥17 (PM version) dB
Output Power Stability (8h): ±1 %
Beam Quality (M²): <1.2
Input Isolation: >30 dB
Output Isolation: >30 dB
Output Fiber Type: SM or LMA Fiber (SM version); PM Fiber (PM version)
Output Fiber Length: >1 m
Optical Connectors: FC/APC (other options available)
Power Supply: 100 – 240 VAC
Operating Temperature: 0 to +30 °C
Storage Temperature: -40 to +85 °C
Cooling Mode: Air-cooling
Dimensions: 19”2U or 19”3U
Power Consumption: <150 W

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Output Peak Power: Achieves up to 30 kW for demanding applications
  • Short Pulse Amplification: Supports pulse widths from 10 ns at repetition rates up to 1 MHz
  • High Stability and Reliability: Advanced thermal management and protection circuitry for long-term operation
  • High Optical-to-Optical Efficiency: Proprietary technologies ensure maximum energy conversion
  • Output Power Tunable: Flexible adjustment to meet varied application requirements
  • Customized Versions Available: Tailored solutions for specific project needs

Applications

  • Optical Fiber Communication: Enhances signal strength for long-distance communication
  • Free Space Communication: Supports high-power free-space optical transmission systems
  • Atmospheric Monitoring: Ideal for environmental and climate sensing systems
  • Environmental Monitoring: Effective for detecting pollution and aerosol concentrations
  • Research & Development: Suitable for experimental setups requiring high-performance pulsed amplification

Frequently Asked Questions

What is the MARS series 1.5um high power pulsed optical fiber amplifier?
The MARS series 1.5um high power pulsed optical fiber amplifier is an eye-safe amplifier that employs high-power, high-performance multi-mode pump lasers inside.
What are the features of the MARS series 1.5um high power pulsed optical fiber amplifier?
The features of the MARS series 1.5um high power pulsed optical fiber amplifier include high output peak power up to 30kW, short pulse amplification of 10ns/1MHz, high stability, high reliability, high optical-to-optical efficiency, output power tunable, and customized versions available.
What are the applications of the MARS series 1.5um high power pulsed optical fiber amplifier?
The MARS series 1.5um high power pulsed optical fiber amplifier can be widely used in the areas of optical fiber communication, coherent combination, sensing, atmosphere monitoring, environment monitoring, and research & development.
What is the output power stability of the MARS series 1.5um high power pulsed optical fiber amplifier?
The output power stability is measured under 25℃, after 30 minutes' warm-up.
What is the ordering information for the MARS series 1.5um high power pulsed optical fiber amplifier?
The ordering information for the MARS series 1.5um high power pulsed optical fiber amplifier includes part no., wavelength range, average power, peak power, pulse width, repetition rate, operation mode, output power tunable range, polarization, polarization extinction ratio (PER), output power stability (8h), beam quality, input isolation, output isolation, output fiber type (SM), output fiber type (PM), length of the output fiber, optical connectors, power supply, power consumption, operating temperature, storage temperature, cooling mode, and dimension.
