Amonics - OEM EDFA Module - AEDFA-18 - Get a price quote from Amonics Limited

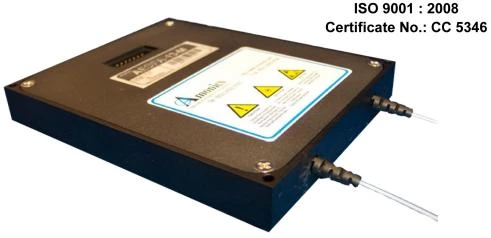

Name: Amonics - OEM EDFA Module - AEDFA-18
Brand: Amonics Limited
Availability: InStock

Description

Amonics EDFA module version is an ideal building block for OEM system integrators as it performs all the functions of an EDFA ready for system integration. This includes photodetection of output signal and /or input signal. Three different control modes including ACC, APC and AGC are offered to meet different requirements. Pump laser protection and alarm are equipped as well. It requires only a single +5V power supply.

Specifications

Amplifier Type:	EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range:	1528 – 1563 nm
Max Output Power:	18 dBm
Nominal Gain:	32 dB

Download Data Sheet

Features

- Gain Flattening Filtering
- APC or AGC Control Mode
- Input Power Monitoring

Applications

- SONET/SDH Systems
- LAN and MANs
- Fiber Optic Sensing
- CATV Networks
- Laboratory

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Amonics Limited

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the Amonics OEM EDFA Module?

The Amonics OEM EDFA Module is an ideal building block for OEM system integrators as it performs all the functions of an EDFA ready for system integration.

What are the different control modes offered by the Amonics OEM EDFA Module?

The Amonics OEM EDFA Module offers three different control modes including ACC, APC and AGC to meet different requirements.

What are the applications of the Amonics OEM EDFA Module?

The Amonics OEM EDFA Module is used in SONET/SDH Systems, LAN and MANs, Fiber Optic Sensing, CATV Networks, and Laboratory.

What is the power supply requirement for the Amonics OEM EDFA Module?

The Amonics OEM EDFA Module requires only a single +5V power supply.

What is the certification of the product?

The product is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
