C-Band Extended C-Band DWDM EDFA High Gain Low Noise Amplifier
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
The C-Band and Extended C-Band DWDM Erbium-Doped Fiber Amplifiers (EDFA) are premium products offered by Amonics, designed to enhance performance in optical communication systems. These amplifiers are engineered with a high-power pump laser and high-stability pump combiners, ensuring exceptional robustness in high power boosting. With a focus on delivering high output power and gain, these EDFAs maintain a very low noise figure, making them an optimal choice for demanding applications within the optical communication industry.

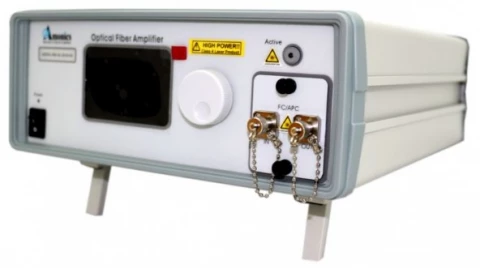

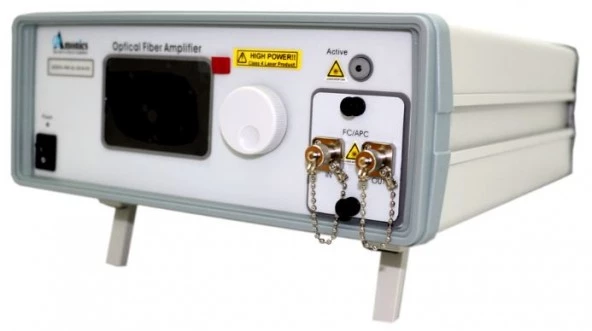

The EDFAs are integrated with a microprocessor-controlled system that offers intuitive alarms and status indicators, enhancing operational efficiency and reliability. The inclusion of an RS232 computer interface facilitates seamless control, diagnostic functions, and data acquisition, ensuring that users have comprehensive management capabilities. Available in both benchtop and rackmount configurations, these amplifiers provide flexibility to suit various operational environments and requirements.
Manufactured under an ISO 9001:2008 certified quality management system, the C-Band and Extended C-Band DWDM EDFAs uphold stringent quality standards, ensuring reliability and durability. This certification, applicable to the Hong Kong production site, underscores Amonics' commitment to quality and excellence. The EDFAs are designed to accommodate a wide range of input signal levels, further enhancing their versatility and applicability across different systems and networks.
C-Band Extended C-Band DWDM EDFA High Gain Low Noise Amplifier
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1529 – 1563 nm |
| Max Output Power: | 22 dBm |
| Nominal Gain: | 30 dB |
| Output Fiber Type: | SMF-28 |
Features
- Turnkey Device: Ready-to-use solution with integrated features for seamless operation.
- RS232/Ethernet Computer Interface: Enables easy control, diagnostic functions, and data acquisition.
- High Output Power: Designed with high-power pump laser for robust performance.
- High Gain: Provides significant amplification, ideal for demanding applications.
- Low Noise Figure: Ensures clear signal transmission with minimal interference.
- Highly Reliable and Durable: Built with high-stability pump combiners for long-term use.
- Customizable: Can accommodate a wide range of input signal levels to meet specific needs.
- Alarms and Status Indicators: Microprocessor-controlled EDFAs with illustrative alarms for monitoring.
- Available Configurations: Offered in both benchtop and rackmount casings to suit different setups.
- ISO Certified Manufacturing: Produced under an ISO 9001:2008 certified quality management system.
Applications
- DWDM Applications: Ideal for dense wavelength division multiplexing optical networks
- SONET/SDH Systems: Suitable for long-haul and metro SONET/SDH communication systems
- Optical Communication: Enhances signal power in various optical transmission systems
- Fiber Optic Sensing: Supports distributed sensing and monitoring with stable amplification
Frequently Asked Questions
Amonics' specialty product is C-band Erbium-doped Fiber Amplifiers (EDFA).
Amonics' EDFAs possess high output power, high gain with very low noise, and are ideal for high power EDFA applications. They also have gain flattening filtering, APC or AGC control mode, and input power monitoring.
Amonics' EDFAs are used in DWDM applications, SONET/SDH systems, optical communications, fiber optic sensing, booster, in-line & pre-amp, and scientific applications.
Amonics' EDFAs are manufactured under an ISO 9001:2008 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
The specifications of AEDFA-C-EX-DWDM-22 are saturation output power of +22dBm, wavelength of 1528-1567nm, gain of 21-30dB, input power of +1/-3/-8dBm, noise figure of 5.5dB, and gain flatness (peak to peak).
