Raman Fiber Laser - ARA-1100-05
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
The Raman Fiber Laser represents a significant advancement in fiber laser technology, offering exceptional performance and versatility for a variety of applications. Engineered with precision and built under a stringent quality management system, this laser is a testament to cutting-edge innovation and reliability. Its design is optimized to deliver high power output with remarkable stability, making it a preferred choice for professionals seeking efficiency and precision.
This laser system is manufactured at a Hong Kong facility that is HKQAA ISO 9001 certified, ensuring that every unit meets rigorous quality standards. The Raman Fiber Laser is available in different models, each tailored to meet specific needs. The models offer a range of output powers starting from a minimum of 1W, 5W, up to 10W, with a wavelength range from 1100 to 1650 nm. This flexibility allows users to select a configuration that best suits their operational requirements.

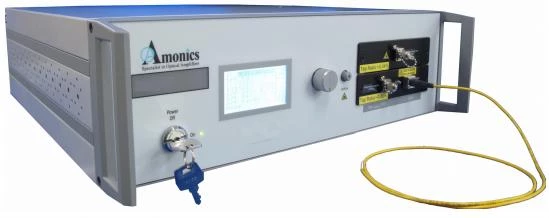

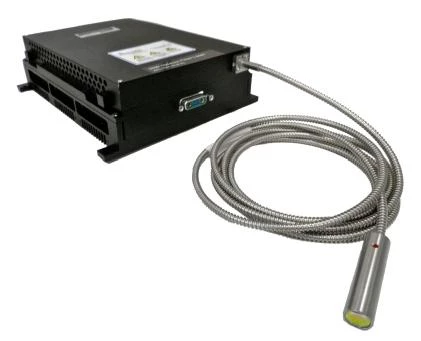

The laser is designed to operate under various conditions, with an operational temperature range from 0 to +40°C and a storage temperature range from -10 to +70°C. This adaptability ensures the laser's performance remains consistent across different environments. Additionally, the laser's compact design, available in both OEM module and 19” rackmount configurations, provides ease of integration and installation.
With its advanced control features, including a keylock switch and computer interface options such as RS232 and Ethernet, the Raman Fiber Laser offers unparalleled control and safety. The inclusion of a safety interlock and optical termination options further enhances its usability and safety. Whether for research, industrial, or other high-precision applications, this laser system stands out as a reliable and powerful tool.
Raman Fiber Laser - ARA-1100-05
Specifications |
|
|---|---|
| Center Wavelength: | 1100 nm |
| Output Power: | 5 W |
| Output Mode: | Single Longitudinal Mode |
| Beam Quality (M^2): | 1.1 |
| Output Power Stability: | 0.1% ~ 0.2% |
| Output Fiber Type: | SMF-28 |
| Interface: | RS-232 |
| Cooling: | Other |
| Electrical Requirements: | 240V - 50Hz |
| Available Wavelengths: | 1100-1650 nm |
Features
- Turnkey Operation: Ready-to-use design for seamless integration into systems.
- High Output Power: Provides up to 10W or higher upon request for demanding applications.
- Polarization Options: Offers linear or random polarized output for versatile use.
- Flexible Computer Interface: Supports RS232 and optional TCP/IP control with included LabVIEW software.
- Highly Reliable Design: Ensures stable performance without water cooling.
- Wide Wavelength Range: Operates from 1100 nm to 1650 nm for various optical requirements.
Applications
- Pump Source: Ideal as a remote pump laser for submarine and long-span transmission systems.
- Component Test & Characterization: Suitable for active and passive optical component testing within the 1100–1650 nm range.
- Optical Spectroscopy: Enables high-resolution optical spectroscopy with stable power and narrow linewidth output.
Frequently Asked Questions
The ARA series of Raman Fiber lasers is used for pump source, component test and characterization, and optical spectroscopy.
The ARA series of Raman Fiber lasers can deliver high power at any wavelength in the range between 1100nm and 1650nm.
The minimum laser output power for the ARA-xxxx-05 model is 5W.
The control mode for the ARA series of Raman Fiber lasers is ACC (standard), APC.
The product is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
