The L-Band ASE Broadband Light Source from BOX OptronicsTech is a cutting-edge optical fiber module that harnesses spectral flattening technology to provide a high output power across the L band wavelength range of 1567 to 1603 nm. This module is perfectly suited for applications such as optical fiber sensing, medical imaging, and fiber optic devices. It offers a stable power output, a flat spectrum, and the convenience of remote operation.

Key features include adjustable output power with options of 10mW, 20mW, 50mW, or 100mW, allowing for precise customization to specific application needs. The spectral flatness is maintained with typical values of 2dB and a maximum of 3dB, ensuring consistent performance. The light source also boasts excellent output isolation of over 35dB and low power instability, with short-term fluctuations of ≤±0.02 dB and long-term fluctuations of ≤±0.05 dB.

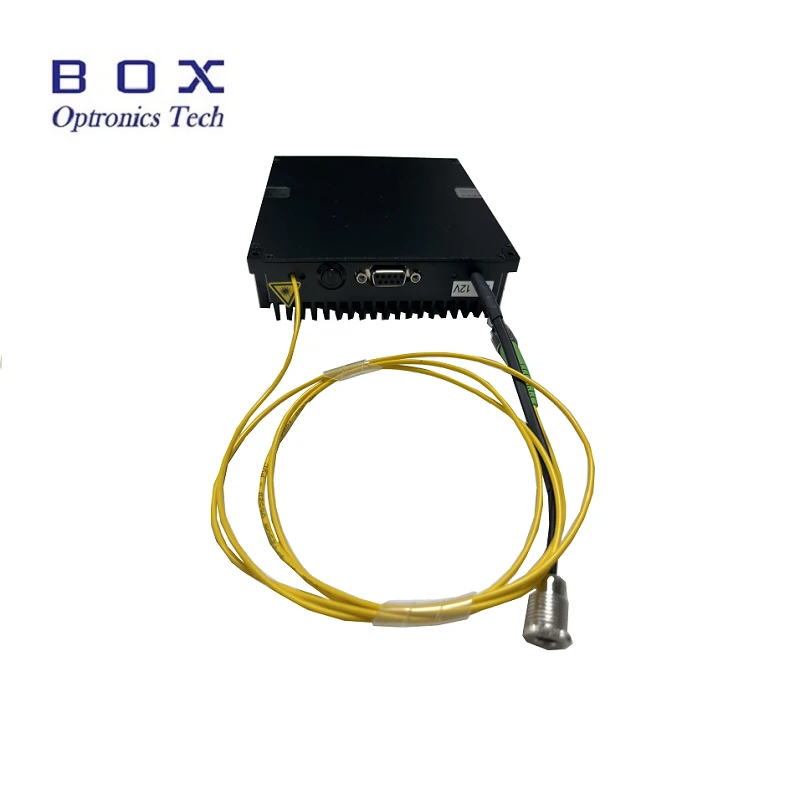

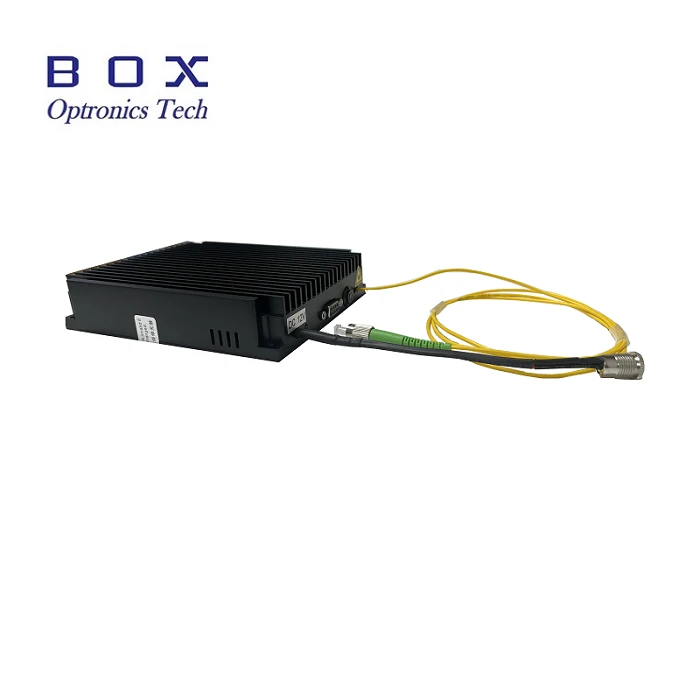

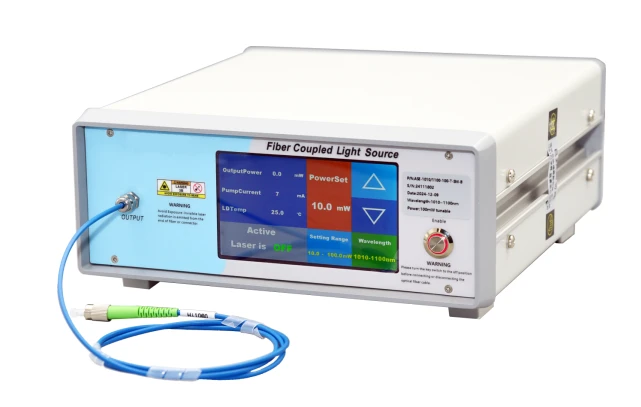

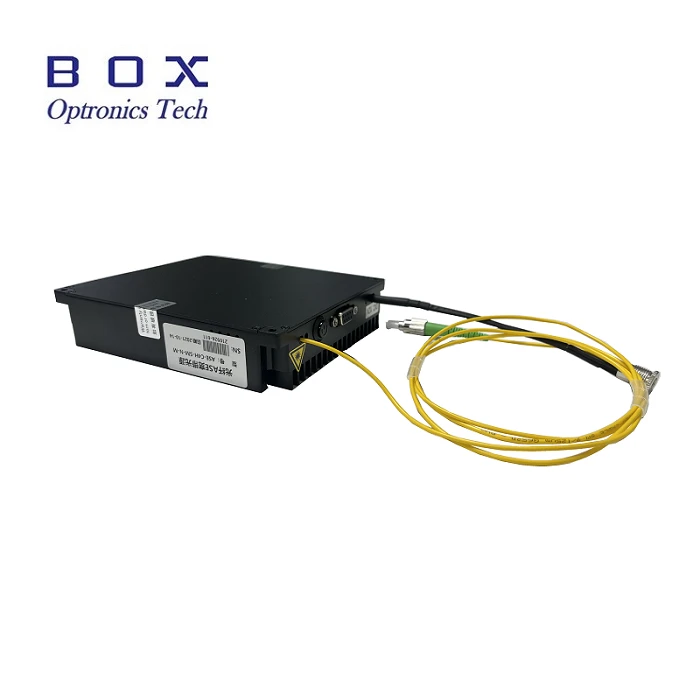

The module is designed for use with FC/APC connectors and SMF-28e fiber type. It comes in both benchtop and module dimensions, with the benchtop model measuring 260(W)×280(D)×120(H) mm and the module measuring 150(W)×125(D)×20(H) mm. The power supply requirements are AC 110~240V for the benchtop and DC 5V for the module, both with low power consumption. An RS232 communication interface is provided for easy monitoring and control. This L-Band ASE Light Source is an ideal choice for applications requiring high performance and reliability.
