Description

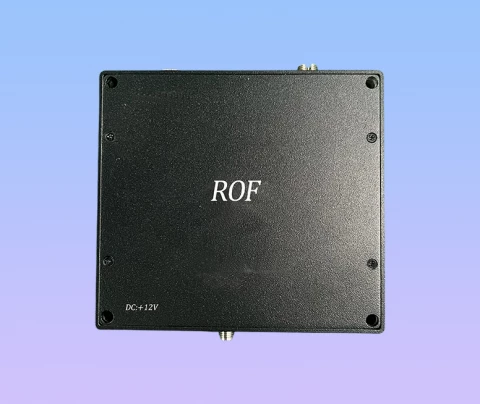

The ROF -DML -XX series of analog broadband direct-tuning transmitters use a highly linear microwave direct-coupled DFB laser (DML), a fully transparent operating mode without RF drive amplifiers and integrated automatic power control (APC) and automatic temperature control (ATC) circuit to ensures that the laser can transmit up to 18 GHz of microwave RF signals with long distances, high bandwidth and flat response, providing excellent linear optical fiber communication for a variety of analog broadband microwave applications.
Due to the avoidance of expensive coaxial cable or waveguide, the transmission distance limit is canceled, which greatly improves the signal quality and reliability of microwave communication, being widely used in remote wireless, timing and reference signal distribution, telemetry and delay lines and other communication field.

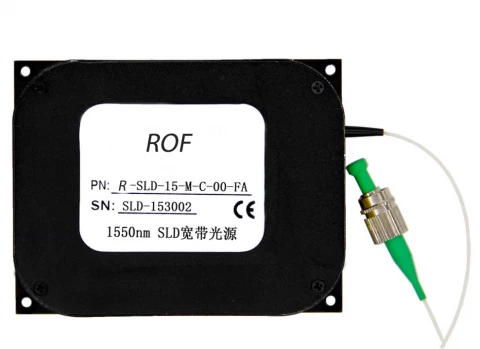

ROF directly modulated laser DML Laser Module ASE Laser SLD Laser Light Source
Specifications
| Bandwidth: | 1525 nm |
|---|---|
| Center Wavelength: | 1565 nm |
| Polarization: | Not Specified |
| Operating Wavelength: | 852/1064/1310/1550/1653/2000 nm |
| Output Optical Power: | 13 - 16 dBm |
| 3dB Spectral Width: | 0.2 - 10 MHz |
| SMSR: | 30 - 45 dB |
| Relative Noise Intensity: | -160 to -150 dB/Hz |
| Power Stability (PSS): | ±0.005 dB/5min |
| Power Stability (PLS): | ±0.01 dB/8h |
| Output Isolation: | 30 - 35 dB |
| Dimensions (Desktop): | 320×220×90 mm |
| Dimensions (Module): | 90×70×18 mm |
| Power Requirements (Desktop): | AC220V±10％ 30W |
| Power Requirements (Module): | DC+5V GND |
| Central Wavelength: | 851 - 853 nm |
| Peak Pulse Optical Power: | 50 mW |
| Spectral Linewidth: | 1 - 2 nm |
| Pulse Width: | 3 - 100 ns |
| Light Pulse Repetition Frequency: | 1 - 1000 KHz |
| Optical Power Stability: | <1 % |
| Wavelength Stability: | <0.01 nm |
| Pulse Width Adjustment Accuracy: | 1 ns |
| Pulse Width Adjustment Step Size: | 5 ns |
| Re-adjust The Step Size: | 5 KHz |
| Output Optical Isolation: | 30 dB |
| Wavelength (C-band): | 1524 - 1565 nm |
| Wavelength (L-band): | 1560 - 1620 nm |
| Wavelength Tuning Range: | 40 nm |
| Channel Spacing: | 50 GHz |
| Wavelength Conversion Speed: | 2 s |
| Wavelength Accuracy: | -1.5 to 1.5 GHz |
| Output Optical Power: | 10 dBm |
| 3dB Spectral Width: | 3 - 10 MHz |
| SMSR: | 40 - 50 dB |
| Polarization Extinction Ratio: | 20 dB |
| Relative Noise Intensity: | -145 to -135 dB/Hz |
Download Data Sheet
Features
- Excellent RF response flatness
- Wide dynamic range
- Entire transparent work applicable signal coding communication standard network protocols
- Wavelength options: 1550nm DWDM wavelength
- Integrate automatic power control and automatic temperature circuit
- No built-in drive RF amplifier, providing more flexibility
Applications
- Remote antenna
- Long-distance analog optical fiber communication
- Military three wave communication
- Tracking telemetry and control
- Delay lines
- Phased array
Frequently Asked Questions
What are the available operating wavelengths for the DFB Lasers?
The available operating wavelengths for the DFB Lasers are 852, 1064, 1310, 1550, 1653, and 2000 nm.
What is the minimum pulse width for the ns-Pulse Lasers?
The minimum pulse width for the ns-Pulse Lasers is 3 ns.
What is the output optical power for the Tunable Lasers?
The output optical power for the Tunable Lasers is 10 mW.
What are the package options available for the DFB Lasers?
The DFB Lasers are available in module package and desktop package options.
What is the wavelength tuning range for the Tunable Lasers?
The wavelength tuning range for the Tunable Lasers is 40 nm.
What are the bandwidth options for the Broadband Analog Direct-Modulation Lasers?
The bandwidth options for the Broadband Analog Direct-Modulation Lasers are 6, 10, and 18 GHz.
What is the power stability specification for the DFB Lasers?
The power stability for the DFB Lasers is ±0.005 dB over 5 minutes and ±0.01 dB over 8 hours.
