840nm SLD Broadband Light Source

Name: 840nm SLD Broadband Light Source
Brand: Shenzhen Box Optronics Technology Co.,Ltd.
Availability: InStock

Description

BOX Optronics 840 nm SLD Broadband Light Source employs a semiconductor super-luminescent diode to deliver a flat, low-ripple spectrum centered at 840 nm ± 20 nm with a 3 dB bandwidth > 30 nm (typ. 47 nm) and output powers of 5 mW or 10 mW, customizable on request.

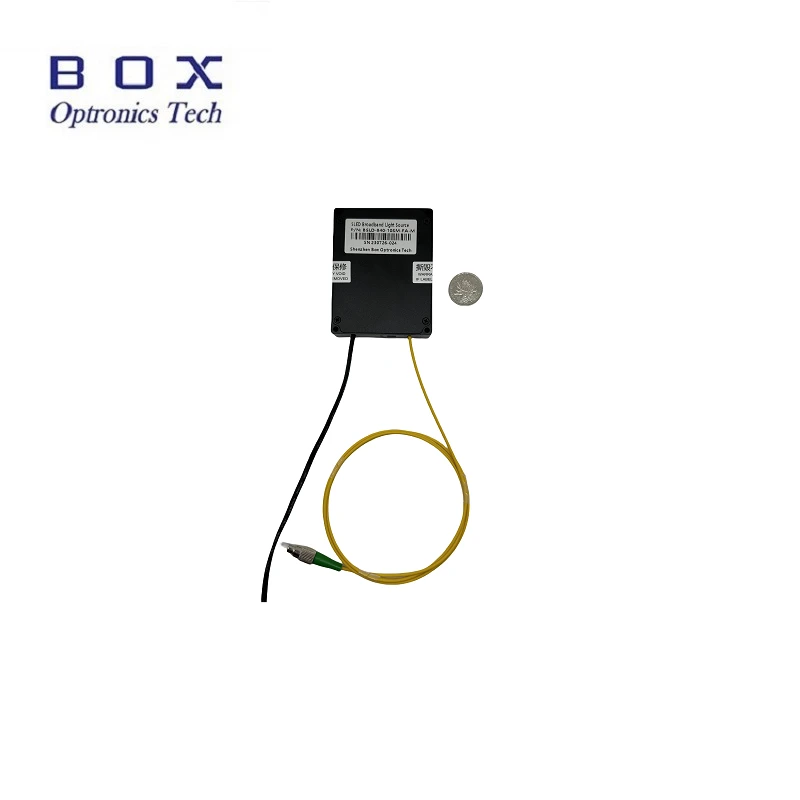

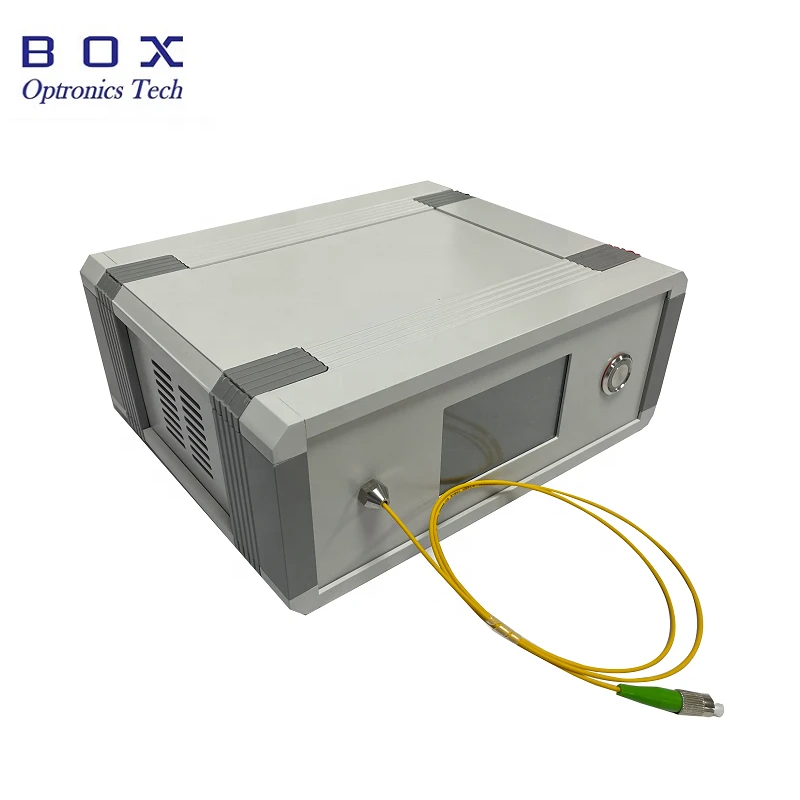

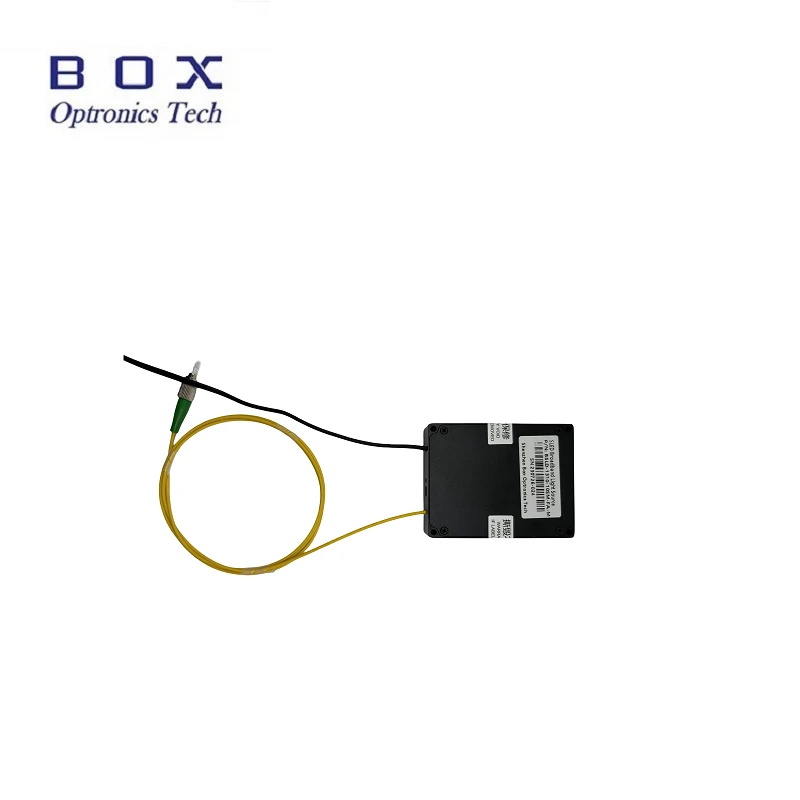

The rugged benchtop (195 × 220 × 120 mm) or compact 70 × 90 × 18 mm module packages integrate an optional optical isolator and terminate with FC/APC connectors on Hi780 single-mode or PM850 polarization-maintaining fiber.

RS-485 communication and PC software enable real-time monitoring; short-term stability is ≤ ±0.02 dB over 15 min, long-term ≤ ±0.05 dB over 8 h across -5 °C to +55 °C.

Ideal for fiber-optic sensing, OCT medical imaging, and component testing, with full OEM customization of wavelength, power, fiber, and mechanical format.

Specifications

Bandwidth:	30 nm
Center Wavelength:	840 nm
Output Power:	5 mW
Polarization:	Linear, Unpolarized
Output Power:	10 mW
Operating Temperature:	-5 ~ +55℃
Polarization:	Hi780（SM）/ PM850（PM）
Size:	195×220×120 mm / 70×90×18 mm

Download Data Sheet

Features

Ultra wide spectrum

Low spectral ripple

Flat spectrum

Customizable size

Applications

Optical fiber sensing

Medical imaging

Optical coherence tomography

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Shenzhen Box Optronics Technology Co.,Ltd.

On FindLight:

since 2025

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the 840nm SLD Broadband Light Source?

The 840nm SLD Broadband Light Source is a device that uses semiconductor superradiation diode technology to output a broadband spectrum with high output power, suitable for optical fiber sensing and other applications.

What are the key features of the 840nm SLD Broadband Light Source?

The key features include an ultra-wide spectrum, low spectral ripple, flat spectrum, and customizable size.

What applications is the 840nm SLD Broadband Light Source suitable for?

It is suitable for optical fiber sensing, medical imaging, and optical coherence tomography.

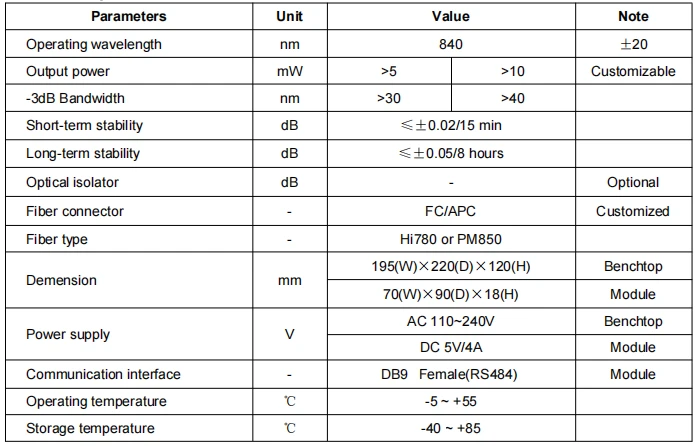

What are the electro-optical characteristics of the 840nm SLD Broadband Light Source?

The operating wavelength is 840 nm ±20, output power is customizable (>5 or >10 mW), -3dB bandwidth is >30 or >40 nm, short-term stability is ≤±0.02 dB/15 min, and long-term stability is ≤±0.05 dB/8 hours.

What are the power supply requirements for the 840nm SLD Broadband Light Source?

For the benchtop version, it requires AC 110~240V, and for the module version, it requires DC 5V/4A.

What are the available fiber types and connectors for the 840nm SLD Broadband Light Source?

The available fiber types are Hi780 and PM850, and the connectors can be customized to FC/APC or SC/APC.

What are the dimensions and operating conditions for the 840nm SLD Broadband Light Source?

The benchtop version dimensions are 195(W)×220(D)×120(H) mm, and the module version is 70(W)×90(D)×18(H) mm. The operating temperature range is -5 to +55°C, and the storage temperature range is -40 to +85°C.
