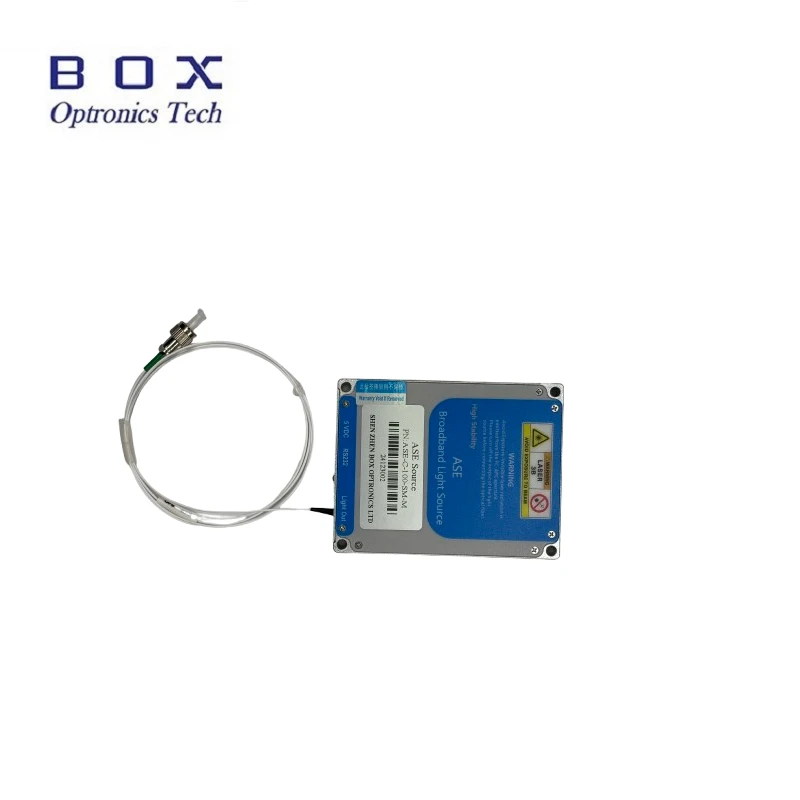

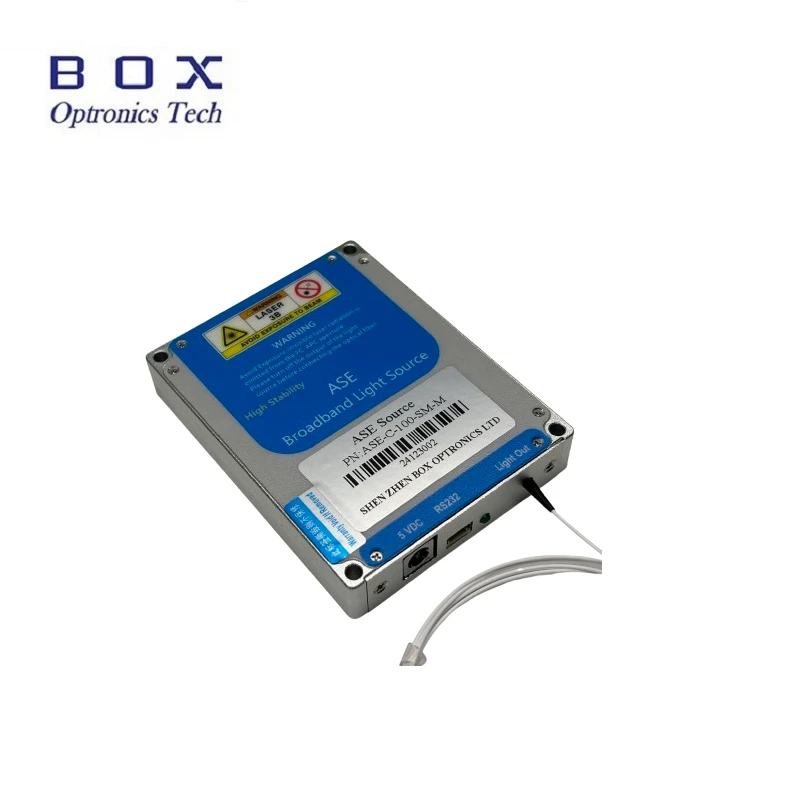

The C-Band ASE Broadband Light Source module by BOX OptronicsTech is engineered for applications in fiber optic sensing, medical imaging, and fiber optic devices. This module employs spectral flattening technology to deliver a high output power with a flat spectrum across the C-band wavelength range of 1528 to 1563 nm.

Key features include power stability, a flat spectrum, and the capability for remote operation. The output power is adjustable, offering options from 10mW to 100mW to accommodate various application requirements. The spectral flatness is typically 1.5 dB, with a maximum of 2 dB, ensuring consistent performance.

The light source boasts an output isolation of over 35 dB and a low degree of polarization (≤0.2 dB), making it suitable for applications with low polarization sensitivity. Short-term and long-term power instabilities are kept within ±0.02 dB and ±0.05 dB, respectively, ensuring reliability.

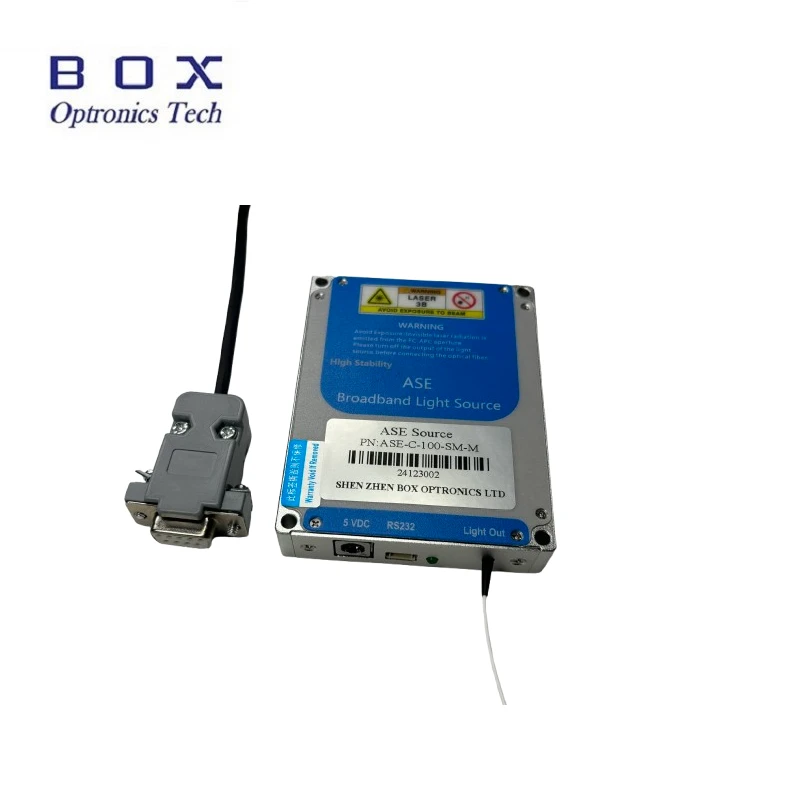

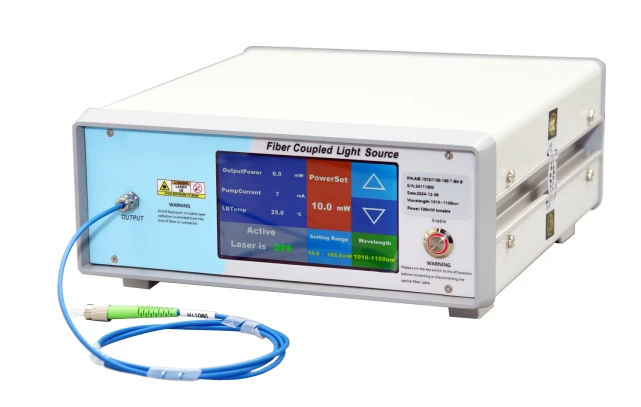

Compatible with FC/APC connectors and designed for use with SMF-28e fiber type, the module is available in both benchtop and module dimensions, with the benchtop model measuring 260(W)×280(D)×120(H) mm and the module measuring 150(W)×125(D)×20(H) mm. Power supply requirements are AC 110~240V for the benchtop and DC 5V for the module, both with low power consumption, and it includes an RS232 communication interface for easy monitoring.

This C-Band ASE Broadband Light Source is an ideal choice for applications where high performance and reliability are paramount.
