1060nm ASE Broadband Light Source

Name: 1060nm ASE Broadband Light Source
Brand: DK Photonics
Availability: InStock

Description

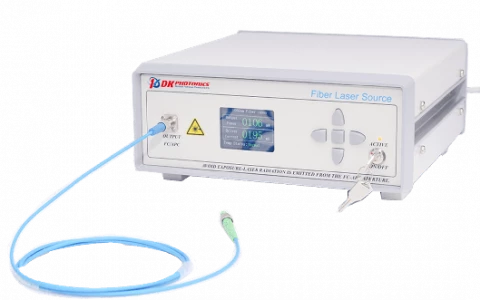

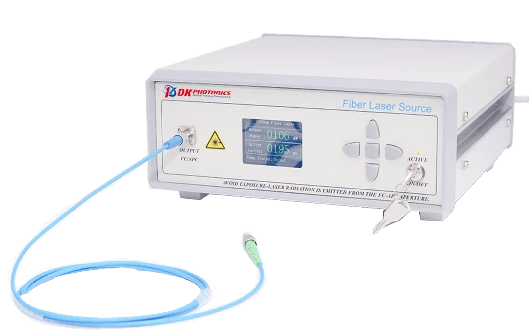

1060nm ASE Broadband Light Source – DK-XS-DT-006-A/2

The 1060nm ASE Broadband Light Source from DK Photonics is a high-performance optical source designed to deliver a flat and stable amplified spontaneous emission (ASE) spectrum. Utilizing advanced ytterbium-doped fiber technology and a high-quality pump laser, this light source achieves a broad spectral coverage from 1030 nm to 1080 nm, making it ideal for a wide range of precision applications. Its optimized internal structure ensures higher output power and superior spectral flatness, setting it apart from conventional broadband sources in the market.

This light source is engineered for demanding environments where reliability and consistency are paramount. It offers both module and desktop configurations, catering to various integration needs in laboratory and industrial settings. The output power is available in 10 mW, 20 mW, or 30 mW options, with an adjustable power feature (optional) that allows fine-tuning from 10% to 100% without compromising spectral flatness. The device maintains exceptional output stability, with short-term and long-term power fluctuations kept to a minimum, ensuring precise and repeatable measurements.

The 1060nm ASE Broadband Light Source is particularly well-suited for fiber optic device testing, fiber Bragg grating (FBG) production, optical component characterization, and advanced fiber sensor systems. Its high output isolation and low degree of polarization make it an excellent choice for sensitive measurement setups, while the use of HI1060 fiber and FC/APC connectors ensures compatibility with standard optical systems. The robust design, combined with user-friendly control interfaces (button or RS232), allows for seamless operation in both research and production environments.

With its broad wavelength range, high stability, and customizable output options, the DK Photonics 1060nm ASE Broadband Light Source stands out as a reliable and versatile solution for professionals in photonics research, medical imaging, and optical component manufacturing. Its performance and flexibility make it a valuable asset for any application requiring a stable, broadband near-infrared light source.

Specifications

Bandwidth:	50 nm
Center Wavelength:	1060 nm
Output Power:	10 mW
Polarization:	Not Specified
Wavelength Range:	1030~1080 nm
Output Power:	10/20/30 mW
Power Adjustable (optional):	Adjustment 10%~100%
Spectral Flatness:	10 dB (Type)
Output Isolation:	>35 dB
Short-Term Stability (15 Minutes):	≤ ±0.02 dB
Long-Term Stability (8 Hours):	≤ ±0.05 dB
Degree Of Polarization (DOP):	≤ 0.2 dB
Fiber Type:	HI1060
Optical Connector:	FC/APC
Control Mode (Desktop):	Button
Control Mode (Module):	RS232
Communication Interface:	DB9 Female (optional)
Power Supply (Desktop):	100~240V AC, <30W
Power Supply (Module):	5V DC, <15W
Dimensions (Desktop):	260(W)×280(D)×120(H)mm
Dimensions (Module):	125(W)×150(D)×20(H)mm
Operation Temperature Range:	-5~+55°C
Operation Humidity Range:	0~70%

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Broad Wavelength Range: 1030–1080 nm coverage, ideal for a variety of fiber optic applications.
Flat Spectrum Output: Delivers a highly uniform spectral profile with typical flatness of 10 dB, ensuring consistent performance across the entire wavelength range.
Adjustable Output Power: Optional adjustable power from 10% to 100% without affecting spectral flatness; available fixed output power options at 10 mW, 20 mW, or 30 mW.
High Output Stability: Exceptional short-term stability (≤ ±0.02 dB over 15 minutes) and long-term stability (≤ ±0.05 dB over 8 hours) for reliable operation.
Excellent Output Isolation: Output isolation greater than 35 dB protects against back reflections and ensures signal integrity.
Low Degree of Polarization (DOP): DOP ≤ 0.2 dB, suitable for sensitive measurement and testing applications.
Ytterbium-Doped Fiber Technology: Utilizes high-performance pump lasers and HI1060 fiber for superior efficiency and reliability.
Flexible Packaging: Available in both compact module and desktop configurations to suit various integration needs.
Easy Operation & Control: Desktop version features button control; module version supports RS232 interface for remote operation.
Wide Operating Conditions: Operates in temperatures from -5°C to +55°C and humidity from 0% to 70%.
Standard Optical Connector: Equipped with FC/APC connector for easy integration with existing fiber optic systems.
Low Power Consumption: Desktop: <30W (100–240V AC); Module: <15W (5V DC), suitable for laboratory and field use.
Compact Dimensions: Desktop: 260×280×120 mm; Module: 125×150×20 mm, saving valuable workspace.
Versatile Applications: Ideal for fiber sensor systems, medical imaging, passive optical component testing, FBG grating production, and more.
Customizable Options: Custom wavelength ranges, output powers, and package types available upon request.

Applications

Fiber Optic Sensing: Ideal for distributed and point fiber optic sensor systems, including strain, temperature, and acoustic sensing in structural health monitoring, oil & gas pipelines, and civil engineering.
Medical Imaging: Used as a broadband light source in Optical Coherence Tomography (OCT) and other biomedical imaging modalities for high-resolution, non-invasive diagnostics.
Passive Optical Component Testing: Provides a stable, flat-spectrum source for accurate testing and characterization of passive fiber optic components such as couplers, isolators, filters, and WDM devices.
FBG (Fiber Bragg Grating) Production and Testing: Essential for the inscription and spectral analysis of FBGs, ensuring precise wavelength calibration and reflection measurements.
Optical Device R&D: Supports research and development of new fiber optic devices, including amplifiers, sensors, and photonic integrated circuits.
Metrology and Spectroscopy: Serves as a broadband source for high-precision optical metrology, spectroscopy, and wavelength calibration applications.
Telecommunications: Used in the development and testing of telecommunication components and systems operating in the 1060nm band.
Optical Coherence Tomography (OCT) Systems: Provides the necessary broadband illumination for OCT imaging in ophthalmology, cardiology, and industrial inspection.
Laser Seeding and Pumping: Acts as a seed source for fiber lasers and amplifiers, or as a pump source in specialty laser systems.
Educational and Laboratory Use: Suitable for university laboratories and educational institutions for demonstrations and experiments in photonics and fiber optics.

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:: China
Sold by:: DK Photonics ✓ Verified Supplier
On FindLight:: since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the 1060nm ASE Broadband Light Source from DK Photonics?

The 1060nm ASE Broadband Light Source from DK Photonics is a high-performance light source based on ytterbium-doped fiber and a high-quality pump laser. It provides a flat spectrum across the 1030-1080nm wavelength range, with adjustable output power and high stability, making it ideal for applications such as fiber sensor testing, medical imaging, and passive optical component testing.

What are the main applications of the 1060nm ASE Broadband Light Source?

This broadband light source is commonly used in fiber optic device testing, fiber Bragg grating (FBG) production, fiber sensor applications, medical imaging, and testing of passive optical components due to its flat spectrum and stable output.

What output power options are available for the DK Photonics 1060nm ASE Broadband Light Source?

The DK Photonics 1060nm ASE Broadband Light Source is available with output power options of 10mW, 20mW, or 30mW. An adjustable power version is also available, allowing continuous adjustment from 10% to 100% of the rated output without affecting spectral flatness.

How stable is the output of the 1060nm ASE Broadband Light Source?

The light source offers excellent stability, with short-term (15 minutes) output fluctuation of ≤ ±0.02 dB and long-term (8 hours) stability of ≤ ±0.05 dB, ensuring reliable performance for sensitive measurements and testing.

What are the available package types and control options for this broadband light source?

The 1060nm ASE Broadband Light Source is available in two package types: a desktop version with button control and a module version with RS232 communication interface (DB9 Female). The desktop version operates on 100~240V AC, while the module version uses 5V DC power.

What fiber type and optical connector does the DK Photonics 1060nm ASE Broadband Light Source use?

This light source uses HI1060 fiber and is equipped with an FC/APC optical connector, which is standard for high-quality, low-reflection fiber optic connections.

Can the 1060nm ASE Broadband Light Source be customized for specific requirements?

Yes, DK Photonics offers customization for the 1060nm ASE Broadband Light Source. Customers can specify wavelength range, output power, package type, and other parameters to meet their unique application needs. It is recommended to provide detailed requirements when inquiring for custom solutions.
