Description
The VENUS series 1250-1650nm high-power SLD (SLED) light source of Connet is a high-stability source designed for scientific research and industrial production with the high-power, broadband SLD (SLED) module being installed internally. It covers different intervals within the scope of 1250~1650nm.
The output power and the spectral width are optional to meet the requirements of customers in different application areas.
The control system based on advanced microprocessors, combined with high-precision ATC and ACC (APC) control circuits, achieves a high and stable output of the laser, while ensuring fast and intuitive control of the light source.
Connet can offer the corresponding communication interface and control software according to the requirement of the user in order to achieve computer control.
Aiming at special characteristics of SLD (SLED) laser, the SLD (SLED) light source of Connet employs the specialized protective measurement on circuit design and optical path processing in order to protect the laser from the reflected light and the surge of current or voltage, thus ensuring that the light source can be operated safely and stably in a long time.

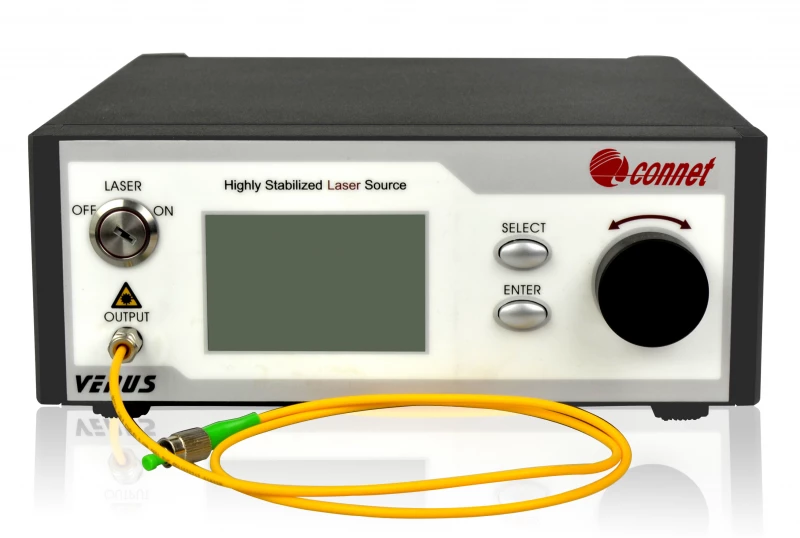

The VENUS series SLD (SLED) light sources of Connet are the highly integrated systems. The benchtop sources use the high-definition LCD which can display the current and the voltage synchronously and the output power also can be continuously tunable. They are suitable for scientific research and industrial production.
1250-1650nm High Power SLD Broadband Light Source
Specifications
| Bandwidth: | 400 nm |
|---|---|
| Center Wavelength: | 1450 nm |
| Output Power: | 10 mW |
| Polarization: | Random |
| Dimensions: | 430(L) x 450(W) x 105(H) mm |
| Optical Connector: | FC/APC (other options available) |
| Output Fiber Length: | >1 m |
| Output Fiber Type: | SMF-28e |
| Storage Temperature: | -40 to +85 ℃ |
| Operating Temperature: | 0 to +50 ℃ |
| Power Consumption: | 5 W |
| Operating Voltage: | 100 to 240 V AC |
| Output Power Tunable Mode: | Coarse / Fine |
| Output Power Tunable Range: | 0 to 100% |
| Output Power Stability (8h): | ±1.5% |
| Output Power Stability (15mins): | ±0.5% |
| Output Isolation: | 30 dB |

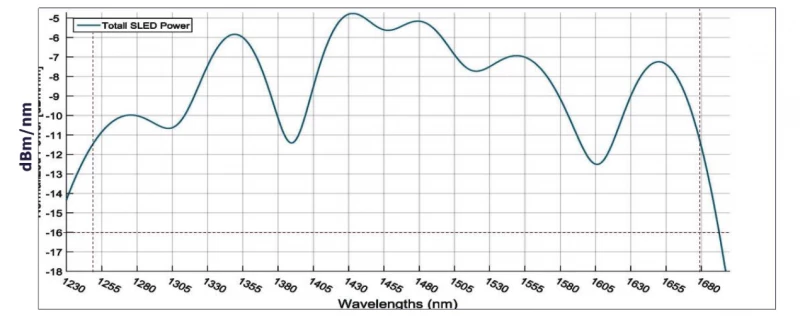

| Spectral Flatness: | 10 dB |
| Spectral Density: | -30 dBm/nm |
| Operating Wavelength Range: | 1250 to 1650 nm |
| Output Power Range: | 0.2 to 10 mW |
| Part No.: | VSLS-1250~1650-B |
Download Data Sheet
Features
- Output power up to 10mW
- Operating wavelength range: 1250-1650nm
- Multiple safety protection
- High stability and high reliability
- LCD display
- High precision ATC and ACC control circuit
Applications
- Fiber optic device testing
- Fiber optic sensing
- Optical Coherence Tomography(OCT)
- Biochemical medical imaging equipment
- Other lab applications
Frequently Asked Questions
What is the output power range of the VENUS series SLD light source?
The output power range of the VENUS series SLD light source is 0.2-10mW.
What is the wavelength range of the VENUS series SLD light source?
The wavelength range of the VENUS series SLD light source is 1250-1650nm.
What kind of applications is the VENUS series SLD light source suitable for?
The VENUS series SLD light source is suitable for fiber optic device testing, fiber optic sensing, optical coherence tomography (OCT), biochemical medical imaging equipment, and other lab applications.
What kind of control system does the VENUS series SLD light source have?
The VENUS series SLD light source has a control system based on advanced microprocessors, combined with high-precision ATC and ACC (APC) control circuits.
What kind of safety protection does the VENUS series SLD light source have?
The VENUS series SLD light source has multiple safety protection measures, including specialized protective measurement on circuit design and optical path processing to protect the laser from reflected light and surges of current or voltage.
