Description
980 to 1080nm High Power SM Fiber Fused Coupler utilizes a unique fusing technique to construct the 980~1080nm. These couplers are designed to split off a portion of light for optical monitoring and feedback purposes.
980 to 1080nm High Power SM Fiber Fused Couplers are extensively used in fiber amplifier power control, as well as in transmission equipment for performance monitoring and feedback control. The High Power SM Fiber Fused Coupler is widely employed in High Power Fiber Lasers and High-Power Fiber Amplifiers.

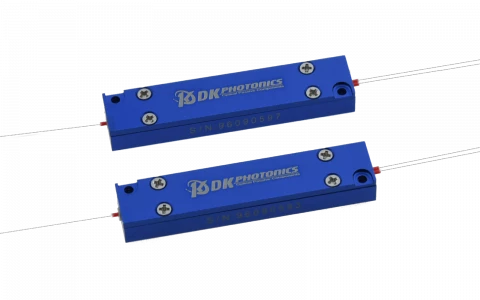

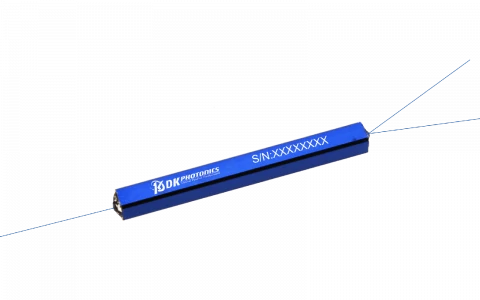

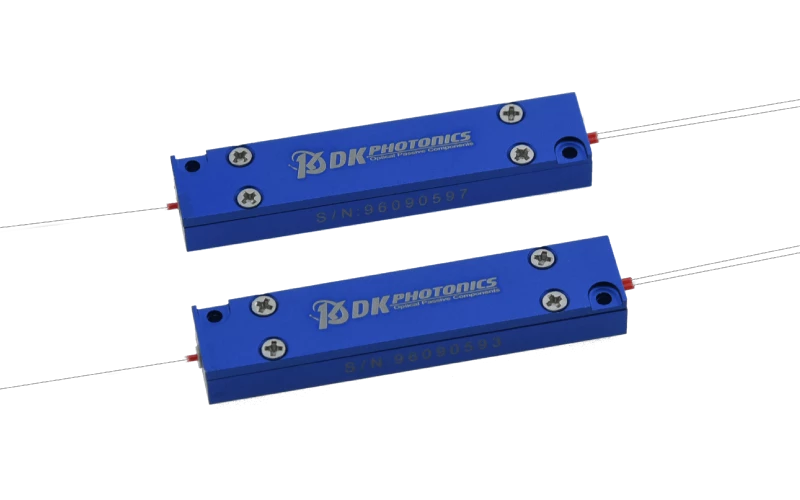

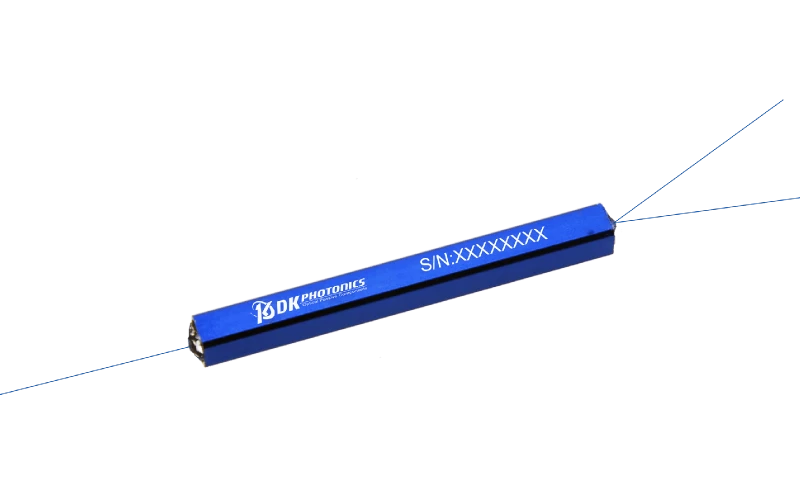

980 to 1080nm High Power SM Fiber Fused Coupler
Specifications
| Type: | Other / Not Specified |
|---|---|
| Configuration: | 1x2, 2x2 |
| Splitting Ratio: | 50/50 |
| Wavelength: | 980 nm |
| Fiber Type: | Single-mode (SM) |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Operating Bandwidth: | ± 15 nm |
| Coupling Ratio: | 1-50 % |
| Typical Excess Loss: | 0.10 dB |
| Max. Excess Loss: | 0.20 dB |
| Return Loss: | ≥ 50 dB |
| Max. Optical Power: | 50 W |
| Fiber Type: | 1060-XP, LMA-GSF-10/125-M, LMA-GDF-10/125-M |
| Operating Temperature: | -20 to +75 °C |
| Storage Temperature: | -40 to +85 °C |
Download Data Sheet
Features
- Low Insertion Loss
- Low Polarization-Dependent Loss (PDL)
- All Split Ratios Available
- High Stability and Reliability
Applications
- High Power Fiber Lasers
- High Power Fiber Amplifiers
- Test and Measurement
- Instrumentation
Frequently Asked Questions
What is the DK Photonics High Power Fused Coupler used for?
The DK Photonics High Power Fused Coupler is used for fiber laser, fiber sensors, and research applications.
What are some key features of the DK Photonics High Power Fused Coupler?
Some key features of the DK Photonics High Power Fused Coupler include low excess loss, low insertion loss, low polarization dependent loss, all split ratios available, high stability and reliability, and high power handling.
What are some applications for the DK Photonics High Power Fused Coupler?
The DK Photonics High Power Fused Coupler is used extensively in fiber amplifier power control and in transmission equipment for performance monitoring and feedback control.
Can the DK Photonics High Power Fused Coupler be customized?
Yes, requests for custom fiber pigtails, different wavelengths, tap ratio and handling power of operation, or other specific needs will be readily addressed.
What is the ordering information for custom parts of the DK Photonics High Power Fused Coupler?
To customize other specifications, please provide a detailed description for your requirement.
