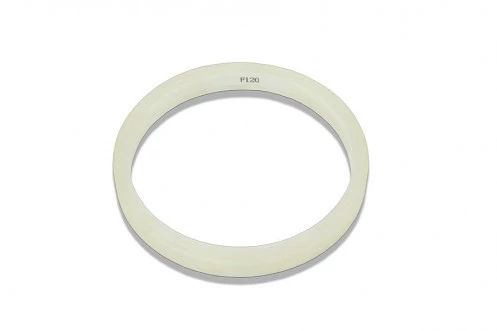

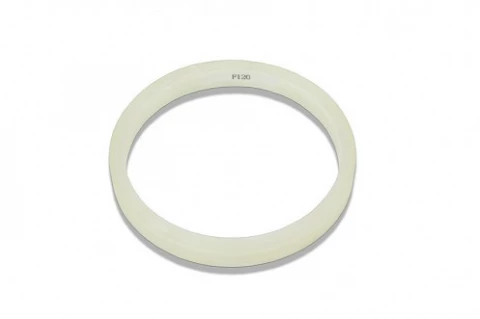

Free Standing SM 1550nm Fiber Coil 8km

Name: Free Standing SM 1550nm Fiber Coil 8km
Brand: CSRayzer Optical Technology
Availability: InStock

Description

CSRayzer's Free Standing SM 1550nm Fiber Coil is expertly crafted with precision winding technology, resulting in a high-performance solution for fiber optic distributing sensing, FOG, college and university research, and beyond.

With a maximum length of 8km and an insertion loss of ≤ 2.0dB, this coil offers exceptional performance and reliability. Designed for use with Corning SMF-28 Ultra 200 fiber, this coil also features an FC/APC connector and single-polar winding method. Whether you require a free-standing or framed structure, CSRayzer has the expertise and equipment to deliver a customized solution to meet your specific needs.

Specifications

Winding Layers:	76
Winding Length:	7980 – 8020 m
Fiber Type:	SMF-28
Operating Wavelength:	1550 nm
Insertion Loss:	2.0 dB
Fiber Coil Inner Diameter:	125 ± 0.2 mm
Fiber Coil Outer Diameter:	≤ 158 mm
Coil Height:	≤ 63.5 mm
Winding Layers:	76 Layer
Winding Length:	8000 ± 20 m
Fiber Type:	Corning SMF-28 Ultra 200
Adhesive:	Yes
Insertion Loss:	≤ 2.0 dB
Pigtail Fiber Length:	1 ± 0.1 m
Connector:	FC/APC
Winding Method:	Single Polar Winding

Download Data Sheet

Features

Designed for single mode fiber optic applications at 1550nm wavelength
Free standing design with a maximum winding length of 8km
Uses Corning SMF-28 Ultra 200 fiber type for high performance
Low insertion loss of ≤ 2.0 dB for minimal signal attenuation
Adhesive included for secure winding and stability
Winding method is single polar winding for enhanced performance
Connector type is FC/APC for easy integration into existing systems
Pigtail fiber length of 1±0.1m for flexible connectivity options
Suitable for fiber optic distributed sensing, fiber optic gyroscopes, and research applications

Applications

Fiber optic sensing systems
Interferometric fiber optic gyroscopes
Distributed fiber optic temperature and strain sensing
Fiber optic communication systems
Fiber optic test and measurement equipment
Research and development in fiber optics and photonics

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

CSRayzer Optical Technology

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the maximum length of the fiber coil?

The maximum length of the fiber coil is 8km.

What is the fiber type used in the coil?

The fiber type used in the coil is Corning SMF-28 Ultra 200.

What is the operating wavelength of the fiber coil?

The operating wavelength of the fiber coil is 1550nm.

What is the insertion loss of the fiber coil?

The insertion loss of the fiber coil is ≤ 2.0 dB.

Can CSRayzer customize the fiber coil according to specific requirements?

Possibly, CSRayzer can customize the fiber coil according to specific requirements, including the winding length, connector type, pigtail fiber length, and winding method, among others.

What are the typical applications of the Single Mode 1550nm Fiber Coil?

The Single Mode 1550nm Fiber Coil can be used in fiber optic distributing sensing, fiber optic gyroscope (FOG), and in college, university, and research institutes, among others.

What is the maximum length of the Free Standing SM 1550nm Fiber Coil?

The maximum length of the coil is 8km.

What is the insertion loss of the coil?

The insertion loss of the coil is ≤ 2.0dB.

What type of fiber is used in this coil?

This coil uses Corning SMF-28 Ultra 200 fiber.

What is the connector type of the coil?

The connector type of the coil is FC/APC.

What applications is this coil suitable for?

This coil is suitable for fiber optic distributed sensing, fiber optic gyroscopes, and research applications.
