Fiber Coil 2km PM FOG

Name: Fiber Coil 2km PM FOG
Brand: CSRayzer Optical Technology
Availability: InStock

Description

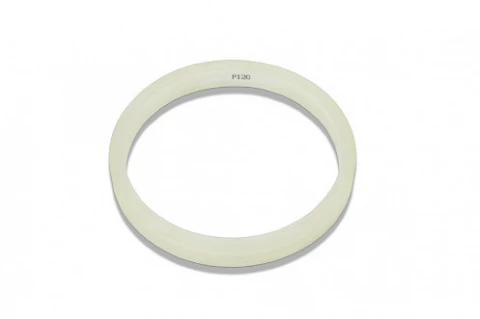

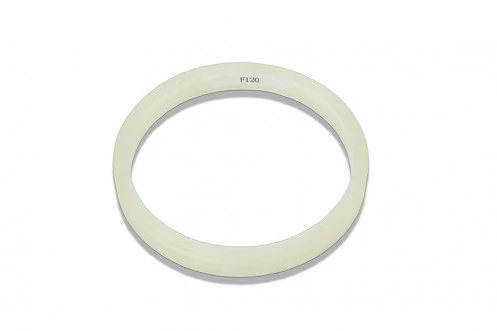

CSRayzer's F120 FOG Fiber Coil is a high-precision component designed for use in closed-loop ɸ120 Fiber Optic Gyroscope applications.

With excellent bias stability and scale factor, this fiber coil delivers outstanding performance in demanding environments. Made with PM1550/80/135 fiber type, the Fiber Coil 2km PM FOG is built to last and delivers reliable, accurate results.

Ideal for inertial navigation systems in combat aircraft, UAVs, drones, missiles, land vehicles, and air freighters, this UV adhesive-coated fiber coil offers unparalleled precision and reliability. Choose the CSRayzer F120 FOG Fiber Coil for your high-precision requirements.

Specifications

Winding Layers:	48
Winding Length:	2178 – 2278 m
Fiber Type:	PM1550/980/780/etc.
Operating Wavelength:	1550 nm
Coil Inner Diameter:	70±0.1 mm
Fiber Type:	PM1550/80/135
Height(Exclude Boss):	26±0.1 mm

Download Data Sheet

Features

High-precision fiber coil designed for closed-loop ɸ120 Fiber Optic Gyroscope applications
Excellent bias stability and scale factor for reliable and accurate results
Made with PM1550/80/135 fiber type for long-lasting performance
UV adhesive coating for durability and protection
Winding length range of 2178 - 2278 meters with 48 winding layers
Inner diameter of 70±0.1 mm and height (excluding boss) of 26±0.1 mm

Applications

Inertial navigation systems in combat aircraft, UAVs, drones, missiles, land vehicles, and air freighters
High-precision applications that require reliable and accurate results
Ideal for use in demanding environments with extreme temperatures, vibration, and shock
Suitable for use in research and development, as well as commercial and military applications.

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

CSRayzer Optical Technology

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the CSRayzer F120 FOG Fiber Coil used for?

The CSRayzer F120 FOG Fiber Coil is specifically designed for use in closed-loop ɸ120 Fiber Optic Gyroscope (FOG) applications, where high precision, good bias stability, and scale factor are required.

What is the fiber type used in the Fiber Coil 2km PM FOG?

The Fiber Coil 2km PM FOG uses PM1550/80/135 fiber type.

What is the inner diameter of the Fiber Coil 2km PM FOG?

The inner diameter of the Fiber Coil 2km PM FOG is 70±0.1 mm.

What is the height of the Fiber Coil 2km PM FOG?

The height (excluding the boss) of the Fiber Coil 2km PM FOG is 26±0.1 mm.

What applications is the Fiber Coil 2km PM FOG suitable for?

The Fiber Coil 2km PM FOG is suitable for use in various applications that require high precision, such as inertial navigation systems in combat aircraft, UAVs, drones, missiles, land vehicles, and air freighters.

What is the Fiber Coil 2km PM FOG used for?

The Fiber Coil 2km PM FOG is designed for use in closed-loop ɸ120 Fiber Optic Gyroscope applications.

What are the features of the Fiber Coil 2km PM FOG?

The Fiber Coil 2km PM FOG offers excellent bias stability and scale factor, is made with PM1550/80/135 fiber type, and has a UV adhesive coating for durability and protection.

What is the winding length range of the Fiber Coil 2km PM FOG?

The winding length range of the Fiber Coil 2km PM FOG is 2178 - 2278 meters with 48 winding layers.

What are the applications of the Fiber Coil 2km PM FOG?

The Fiber Coil 2km PM FOG is ideal for inertial navigation systems in combat aircraft, UAVs, drones, missiles, land vehicles, and air freighters. It is also suitable for high-precision applications that require reliable and accurate results.

What is the working temperature range of the Fiber Coil 2km PM FOG?

The Fiber Coil 2km PM FOG has a working temperature range of -40℃ to 65℃.
