Description
The F50 Fiber Gyro Coil by CSRayzer Optical Technology Co., Ltd. is a specialized component designed for small closed-loop ɸ50 Fiber Optic Gyroscopes. This product is crafted to meet the demands of low and medium precision applications, making it an ideal choice for customers seeking compact fiber coils and optical devices. Its design is particularly beneficial for projects where space is at a premium, such as in the development of small-space Fiber Optic Gyroscopes.
CSRayzer leverages its robust research and development capabilities to produce the F50 Fiber Gyro Coil. Utilizing the in-house designed high-performance Fiber Coil Winding Machine ZKRZ-RHJ4.0, the company offers tailored solutions that include specific winding frame designs and customized fiber coils. This ensures that each coil meets the unique requirements of the customer, providing flexibility and precision in the fiber coil winding process.
The F50 Fiber Gyro Coil is engineered with meticulous attention to detail, ensuring optimal performance across a range of conditions. It is built to withstand a wide operating temperature range from -40℃ to 65℃, ensuring reliability in various environments. The product's specifications, including its fiber type and operating wavelength, are designed to deliver consistent performance, making it a reliable component for advanced optical systems.
CSRayzer Optical Technology Co., Ltd. is committed to innovation and quality, offering products that are customizable to meet evolving technological needs. The F50 Fiber Gyro Coil exemplifies this commitment, providing a high-quality solution for specialized optical applications.

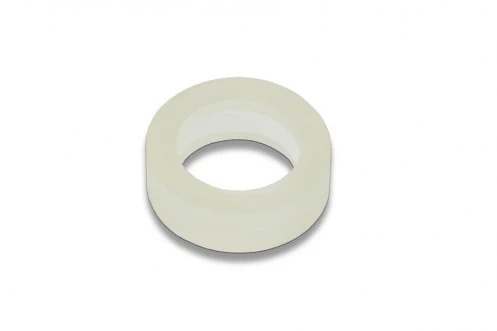

Free Standing PM Fiber Coil F50 FOG component
Specifications
| Winding Layers: | 36 |
|---|---|
| Winding Length: | 270 – 280 m |
| Fiber Type: | PM1550/980/780/etc. |
| Operating Wavelength: | 1310 nm |
| Fiber Inner Diameter: | 24±0.1 mm |
| Height (Exclude Boss): | 11.6±0.1 mm |
| Outer Diameter: | 36 mm |
| Number Of Turns: | 85±1 T |
| Fiber Type: | PM1310/80/135 |
| Polarization CrossTalk @ Room Temperature: | ≤-22 dB |
| Polarization CrossTalk Variation @ Full Temperature: | ≤4 dB |
| Insertion Loss: | ≤ 0.25 dB |
| Insertion Loss Variation @Full Temp.: | ≤ 0.1 dB |
| Working Temperature: | -40℃~65℃ |
Download Data Sheet
Features
- Low Shape Error: The winding layers and number of turns are tightly controlled to reduce shape error, ensuring consistent and accurate performance.
- Low Thermal Stress: The fiber coil is designed to minimize thermal stress, which can affect performance in temperature-varying environments.
- High Anti-vibration Ability: The F50 Fiber Gyro Coil is designed to withstand vibration, which makes it suitable for use in applications where vibration is a concern.
- Low Insertion Loss: The insertion loss of the fiber coil is kept low to minimize signal loss and ensure accurate measurements.
Applications
- Various Type of Missile Guider
- Aircraft and vehicle Platform Stability
- Small Tactical Robot
