Description
CSRAYZER’s FOG Fiber Coil is the core sensitive component of Fiber Optic Gyroscope (FOG). The quality of winding process directly determines the accuracy of FOG. With strong R&D capability and our own designed high performance Fiber Coil Winding Machine ZKRZ-RHJ4.0, we provide the design of the winding frame, Customized Fiber Coil, and also the fiber coil winding process service, according to customer’s specific requirements.

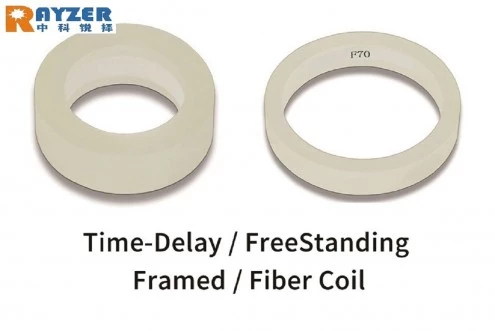

Free Standing Customized Polarization Maintaining Fiber Coil - Fiber Optic Gyroscope Components
Specifications
| Accepted Fiber Diameter: | 100 – 250 um |
|---|---|
| Inner Diameter Range: | 15-150 mm |
| Coil Height Range: | 5-55 mm |
| Winding Fiber Length Range: | 50-10000 meter |
| Wavelength Range: | 1310/1550 nm |
| Operating Temperature: | -45-75 ℃ |
Download Data Sheet
Features
- Low Shupe error
- Low thermal stress
- High anti-vibration ability
- Low Insertion Loss
Applications
- Fiber Optic Gyroscope
- Fiber Sensor
- Fiber Optic Distributing System
Frequently Asked Questions
What is the purpose of CSRAYZER's FOG Fiber Coil?
CSRAYZER's FOG Fiber Coil is the core sensitive component of Fiber Optic Gyroscope (FOG).
How does the quality of the winding process affect the accuracy of FOG?
The quality of the winding process directly determines the accuracy of FOG.
What features does the FOG Fiber Coil have?
The FOG Fiber Coil has low Shupe error, low thermal stress, high anti-vibration ability, and low insertion loss.
What are the applications of the FOG Fiber Coil?
The FOG Fiber Coil is used in Fiber Optic Gyroscope, Fiber Sensor, and Fiber Optic Distributing System.
What customization options are available for the FOG Fiber Coil?
Customization is available for the FOG Fiber Coil according to customer's specific requirements.
