Slits

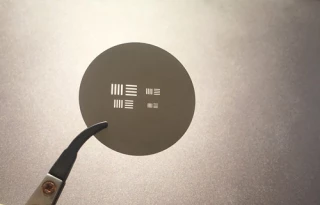

Targets

Targets

Walthy Precision Co., Ltd. offers a diverse range of custom targets designed for the characterization of visible and infrared optronic systems. These targets are meticulously crafted to meet specific requirements, ...

Sold by: Walthy Precision Co., Ltd. Ships from: China
Specifications
Slit Width: 5 um
Slit Length: 3 mm
Mounting: Mounted, Unmounted
Part Diameter: 25.4 mm
Material: 304 stainless steel or Customized

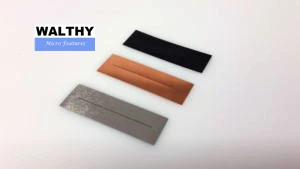

Custom Air slit

Custom Air slit

Walthy Precision Co., Ltd. offers custom high power precision air slits, ideal for optical systems, educational optical experiments, and spectrophotometer image analysis. Available in widths ranging from 10 to 1000 ...

Sold by: Walthy Precision Co., Ltd. Ships from: China
Specifications
Slit Width: 5 um
Slit Length: 0 mm
Mounting: Unmounted
Part Diameter: 0 mm
Material: Alumina Ceramic,Gold,Copper,Tungsten,Molybdenumd

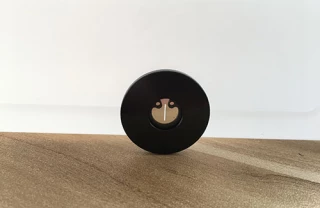

Mounted Precision Air Slits/Pinholes

Mounted Precision Air Slits/Pinholes

Walthy Precision Co., Ltd. specializes in creating custom shapes and patterns for optical, laser, astronomy, and other scientific applications. Utilizing high-quality 304 stainless steel and advanced fabrication ...

Sold by: Walthy Precision Co., Ltd. Ships from: China
Specifications
Slit Width: 5 um
Slit Length: 1 mm
Mounting: Mounted
Part Diameter: 25.4 mm
Typical Material: 304 Stainless Steel

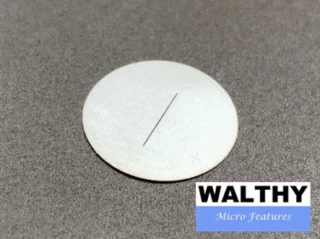

Air Slit

Air Slit

Walthy Precision Co., Ltd. offers high-quality unmounted optical slits ideal for optical systems, educational experiments, and spectrophotometer image analysis. Our slits are available in widths ranging from 10 ...

Sold by: Walthy Precision Co., Ltd. Ships from: China
Specifications
Slit Width: 5 um
Slit Length: 3 mm
Mounting: Mounted, Unmounted
Part Diameter: 9.5 mm
Material: 304 stainless steel Becu, Nickel, Copper etc

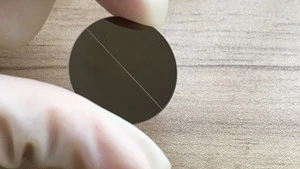

Optical Slits

Optical Slits

Walthy Precision Co., Ltd. presents custom optical slits engineered for precision and versatility. These slits, meticulously crafted from high-quality materials like glass, quartz, or 304 stainless steel, offer ...

Sold by: Walthy Precision Co., Ltd. Ships from: China
Specifications
Slit Width: 5 um
Slit Length: 25.4 mm
Mounting: Mounted, Unmounted
Part Diameter: 9.5 mm
Small Quantity: Acceptable

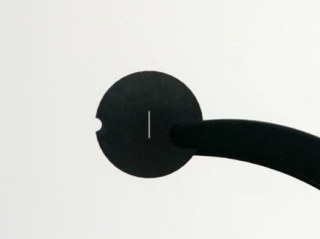

Blacked Air Slits

Blacked Air Slits

Walthy Precision Co., Ltd. specializes in manufacturing high-precision custom shapes and patterns tailored for optical, laser, astronomy, and various scientific applications. Utilizing top-grade materials like 304 ...

Sold by: Walthy Precision Co., Ltd. Ships from: China
Specifications
Slit Width: 5 um
Slit Length: 3 mm
Mounting: Unmounted
Part Diameter: 9.5 mm
Finish: Can be blacked or not

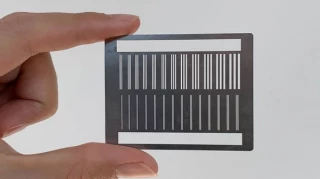

Customized Precision Air Slits

Customized Precision Air Slits

Enhance your optical, laser, and scientific applications with precision-crafted custom shapes and patterns from Walthy Precision Co., Ltd. Our expertise in producing high-quality patterns from 304 stainless steel ...

Sold by: Walthy Precision Co., Ltd. Ships from: China
Specifications
Slit Width: 5 um
Slit Length: 1 mm
Mounting: Unmounted
Part Diameter: 9.5 mm

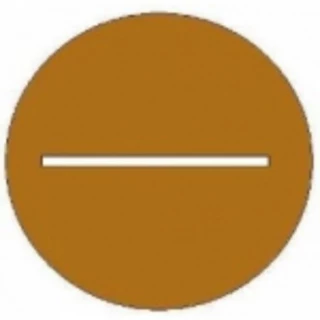

Graticules Optics, 10mm diameter electroformed air slit, 100µm x 7.5mm aperture - LW100

Graticules Optics, 10mm diameter electroformed air slit, 100µm x 7.5mm aperture - LW100

The LW100 Electroformed Metal Foil Aperture is a precision-engineered component designed for applications requiring high accuracy and reliability. This product features a meticulously crafted aperture measuring ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 100 um
Slit Length: 7.5 mm
Mounting: Unmounted
Part Diameter: 10 mm
Blackened: Yes, one side

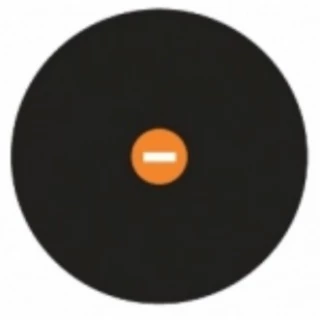

Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 2µm x 1mm – L2

Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 2µm x 1mm – L2

Introducing the L2 Metal Foil Mounted Aperture, a precision-engineered component designed for applications requiring the utmost accuracy. This aperture features a slit that is meticulously crafted to be 0.002mm ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 2 um
Slit Length: 1 mm
Mounting: Mounted
Part Diameter: 12.7 mm
Material: Copper Foil, Blackened one side
Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 5µm x 1mm – L5

Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 5µm x 1mm – L5

Introducing the L5 Mounted Rectangular Slit Aperture, a precision-engineered component designed to meet the exacting standards of scientific and industrial applications. This aperture features a slit that is 0.005mm ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 5 um
Slit Length: 1 mm
Mounting: Mounted
Part Diameter: 12.7 mm
Material: Copper Foil, Blackened one side
Graticules Optics,  3mm diameter Mounted Rectangular Foil Slits, 100µm x 2mm – L100

Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 100µm x 2mm – L100

The L100 Mounted Rectangular Slit Aperture is a precision-engineered component designed for applications requiring high accuracy and reliability. This product features a slit aperture that is 0.1mm (100μm) wide and ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 100 um
Slit Length: 2 mm
Mounting: Mounted
Part Diameter: 12.7 mm
Aperture Width: 0.1mm (100μm)

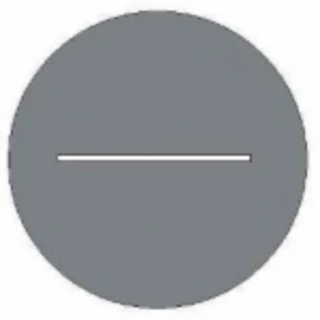

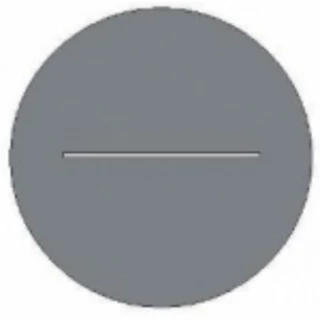

Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.025mm (25μm) x 10mm - LG25

Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.025mm (25μm) x 10mm - LG25

The LG25 Rectangular Optical Slit on Chrome Coated Glass is a precision-engineered component designed for applications requiring high accuracy and reliability. This optical slit features a width of 0.025mm (25μm) ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 25 um
Slit Length: 10 mm
Mounting: Unmounted
Part Diameter: 12.7 mm
Material: Low reflective chrome on B270 Glass

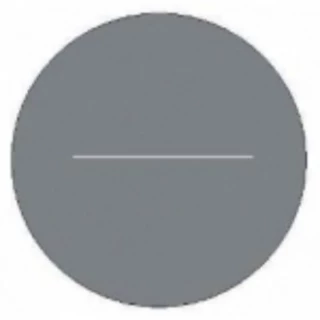

Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.005mm (5μm) x 10mm - LG5

Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.005mm (5μm) x 10mm - LG5

The LG5 Rectangular Optical Slit on Chrome Coated Glass is a precision-engineered component designed for applications requiring high accuracy and reliability. This optical slit features a meticulously crafted ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 12.7 um
Slit Length: 10 mm
Mounting: Unmounted
Part Diameter: 12.7 mm
Material: Low reflective chrome on B270 Glass

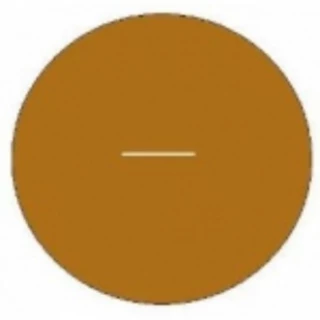

Graticules Optics, 10mm diameter electroformed air slit, 0.005mm (5μm) x 3mm aperture - LW5

Graticules Optics, 10mm diameter electroformed air slit, 0.005mm (5μm) x 3mm aperture - LW5

Introducing the LW5 Electroformed Metal Foil Aperture, a precision-engineered component designed to meet the most demanding specifications. This aperture features an exceptionally narrow slit, measuring just 0.005mm ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 5 um
Slit Length: 3 mm
Mounting: Unmounted
Part Diameter: 10 mm
Aperture Size: 0.005mm (5μm) wide x 3mm long
Graticules Optics, 10mm diameter electroformed air slit,, 0.01mm (10μm) x 3mm aperture - LW10

Graticules Optics, 10mm diameter electroformed air slit,, 0.01mm (10μm) x 3mm aperture - LW10

Introducing the LW10 Electroformed Metal Foil Aperture, a precision-engineered component designed to meet the highest standards of quality and performance. This aperture features a meticulously crafted slit ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 10 um
Slit Length: 3 mm
Mounting: Unmounted
Part Diameter: 10 mm
Aperture Size: 0.01mm (10μm) wide x 3mm long

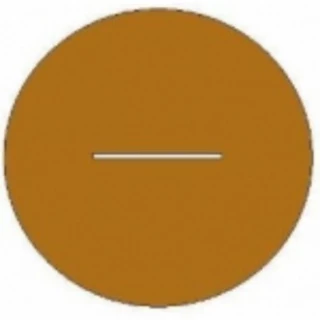

Graticules Optics, 10mm diameter electroformed air slit, 0.025mm (25μm) x 5mm aperture - LW25

Graticules Optics, 10mm diameter electroformed air slit, 0.025mm (25μm) x 5mm aperture - LW25

Introducing the LW25 Electroformed Metal Foil Aperture, a precision-engineered component designed to meet the highest standards of accuracy and reliability. This aperture features a meticulously crafted slit ...

Sold by: Graticules Optics Limited Ships from: United Kingdom
Specifications
Slit Width: 25 um
Slit Length: 5 mm
Mounting: Unmounted
Part Diameter: 10 mm
Aperture Width: 0.025mm (25μm)
Precision Air Slit - 50um / 12mm

Precision Air Slit - 50um / 12mm

Introducing our Precision Air Slit, a meticulously engineered component designed to meet the highest standards of precision and reliability. With a width of 50 µm, this air slit is crafted to deliver exceptional ...

Sold by: DIY-Optics GmbH Ships from: Switzerland
Specifications
Slit Width: 50 um
Slit Length: 12 mm
Mounting: Unmounted
Part Diameter: 25.4 mm
Thickness: 0.2 mm
Precision Air Slit - 50um / 6mm

Precision Air Slit - 50um / 6mm

Introducing the Precision Air Slit, a meticulously engineered component designed to meet the highest standards of optical performance. This precision air slit features a width of 50 µm, ensuring unparalleled ...

Sold by: DIY-Optics GmbH Ships from: Switzerland
Specifications
Slit Width: 50 um
Slit Length: 6 mm
Mounting: Unmounted
Part Diameter: 25.4 mm
Thickness: 0.2 mm
Precision Air Slit - 50um / 3mm

Precision Air Slit - 50um / 3mm

Introducing our high-quality Precision Air Slit, meticulously engineered to meet the demanding requirements of optical applications. This precision component is designed with a width of 50 µm and a length of 3 mm, ...

Sold by: DIY-Optics GmbH Ships from: Switzerland
Specifications
Slit Width: 50 um
Slit Length: 3 mm
Mounting: Unmounted
Part Diameter: 25.4 mm
Thickness: 0.2 mm
Precision Air Slit - 25um / 12mm

Precision Air Slit - 25um / 12mm

Introducing our Precision Air Slit, a meticulously crafted component designed to meet the highest standards of precision and reliability. This air slit is engineered with a width of 25 µm, ensuring exceptional ...

Sold by: DIY-Optics GmbH Ships from: Switzerland
Specifications
Slit Width: 25 um
Slit Length: 12 mm
Mounting: Unmounted
Part Diameter: 25.4 mm
Thickness: 0.05 mm

Did You Know?

Optical slits, essential in precision applications, offer customizable dimensions for enhanced versatility across various scientific and educational experiments. With slit widths ranging from 5 to 1000 micrometers and lengths up to 30 millimeters, these components are crucial for spectrophotometer image analysis and optical system calibration. Available in materials like 304 stainless steel and alumina ceramic, each slit is designed to meet rigorous standards for durability and performance. Explore the wide range of mounted and unmounted options to find the perfect fit for your specific requirements at FindLight.net.

Precision Slits: Optimal Beam Shaping & Spatial Filtering

Optical slits are fundamental components in opto‑mechanical systems, offering precise control over beam dimensions and spatial filtering. Whether you’re refining a laser beam profile, conducting spectroscopy, or building imaging setups, precision slits deliver enhanced accuracy and repeatability for demanding applications.

What Are Optical Slits?

Optical slits are narrow openings - either fixed or adjustable - etched or machined into thin metal plates. These slits allow users to define beam widths, block stray light, and slice beam cross-sections for analysis. With micrometer-scale precision and durable finishing, slits support stable optical performance across labs and industrial environments.

Fixed vs Adjustable Slits

  • Fixed slits provide consistent, precise widths ideal for setups demanding reproducibility. Machined from stainless steel or nickel-iron alloys, they offer thermal stability and minimal line-edge roughness, ensuring clean beam edges.

  • Adjustable slits feature motorized or manual translation stages that allow dynamic control of slit width - ranging from a few micrometers to millimeters. These are crucial for applications requiring variable spatial filtering, beam profile optimization, or automation.

Key Applications

  1. Spectroscopy & Monochromators
    Achieve sharp spectral resolution by controlling beam width with high‑precision slits. Adjustable slits offer flexibility in tuning resolution versus throughput.

  2. Beam Shaping & Spatial Filtering
    Use slits to refine beam profiles, reduce aberrations, and generate top-hat shapes - valuable in microscopy and lithography.

  3. Laser System Optimization
    Adjust slit openings to limit stray light and protect optics, helping to maintain beam quality throughout experiments or industrial processes.

  4. High‑Resolution Imaging
    In optical scanning and imaging, slits can block side lobes or off‑axis rays, improving contrast and resolution.

Choosing the Right Slit

  • Width Range & Accuracy: Fixed options offer specific micrometer widths; adjustable versions allow continuous tuning from µm to mm range.

  • Material & Finish: Opt for stainless steel or black-anodized aluminum to minimize reflections and thermal expansion.

  • Mounting & Integration: Look for SM-compatible housings, dovetail mounts, and motorization options for lab automation.

  • Resolution vs Throughput: Wider slits yield higher throughput but lower resolution—select accordingly to your experimental needs.

Why FindLight’s Slits Stand Out

  • High Precision Fabrication: Tolerances down to ±1 µm ensure consistent slit openings and reliable beam shaping.

  • Broad Width Selection: Choose from fixed slits (e.g., 10 µm, 50 µm, 100 µm) or adjustable slits with continuous ranges up to 10 mm.

  • Modular Integration: Compatible with optical tables, cage systems, and monochromator assemblies for easy integration.

  • Durable & Clean: Blackened finishes reduce stray light; quality coatings enhance longevity in high-power or UV applications.

Explore Optical Slits on FindLight

Upgrade your optical setups with beam-shaping tools engineered for precision performance. Whether you need fixed‑width slits for spectroscopy or adjustable slits for dynamic beam control, FindLight’s collection offers the range, accuracy, and build quality your photonics applications demand.

Discover aperture solutions tailored to your system - shop precision slits on FindLight today.
