Mounted Precision Air Slits/Pinholes
OVERVIEW

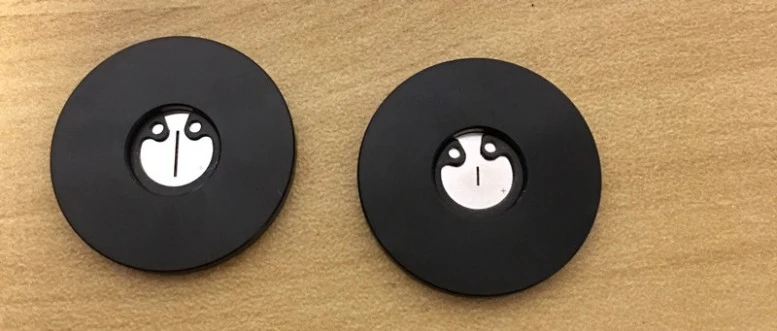

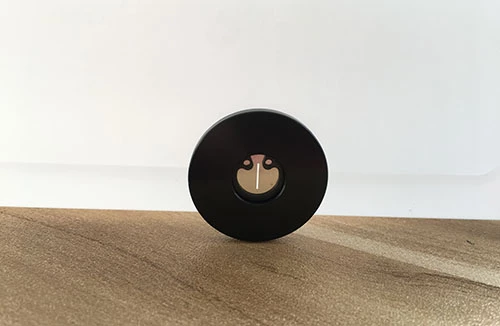

Our slits and pinholes can be pre-mounted in black-anodized aluminum housing for a secure mechanical support. The mounts also fit into various optical assemblies. Mount can be clearly labeled with aperture/slit size for easy identification.
Slit Widths Available: 5 – 1000 µm
Slit Length: 3 mm or customized
Slit Material: 304 Stainless Steel, or 304 Stainless Steel with Black Oxide Finish
Housing: Black-Anodized Aluminum with Ø1″ (25.4mm) Outer Diameter x 0.10″ (2.5mm)Thick
Unmounted Slit Diameter: Ø9.5 mm
Pinholes are available: 5um-1000um
Unmounted slits or unmounted pinholes are also available.
The slits or pinholes can be taken out of their housings by removing the retaining ring.
SPECIFICATION
- Slit Width: 5-1000 um
- Slit Length: 1-9 mm
- Mounting: Mounted
- Part Diameter: 25.4 mm
- Typical Material: 304 Stainless Steel
- Thickness: 0.05mm or customized
- Ourter Shape: Black-Anodized Aluminum with Ø1″ (25.4mm) Outer Diameter x 0.10″ (2.5mm)Thick
- Micro Patterns: Round, square, rectangular, slit, arc, hexagon, octagon, annular, etc. and combinations of patterns or arrays
- Pinholes: 5um-1000um
Applications
1. Optical Systems and Various Educational Optical Experiments.
2.For Spectrophotometer Image Analysis
KEY FEATURES
Custom Made.
Small quantity are acceptable.
Competitive Price:30USD/pc
