Description
Introducing the Precision Air Slit, a meticulously engineered component designed to meet the highest standards of optical performance. With a width of 200 µm and a length of 6 mm, this air slit is crafted to deliver exceptional precision and reliability in various optical applications. The dimensions are carefully calibrated to ensure optimal performance, making it an ideal choice for professionals seeking accuracy and consistency in their optical setups.
The substrate of this precision air slit is made from high-quality aluminium, known for its durability and excellent thermal conductivity. The substrate has a diameter of 25.4 mm and a thickness of 0.2 mm, providing a robust yet lightweight foundation that supports the slit’s precision alignment. This combination of materials and dimensions ensures that the air slit maintains its structural integrity while delivering superior optical performance.
Manufactured by DIY-Optics GmbH, a trusted name in the optics industry, this precision air slit exemplifies the company's commitment to quality and innovation. Located in Sarnen, Switzerland, DIY-Optics GmbH is renowned for its cutting-edge optical components that cater to a wide range of professional needs. This precision air slit is a testament to their expertise and dedication to advancing optical technology.

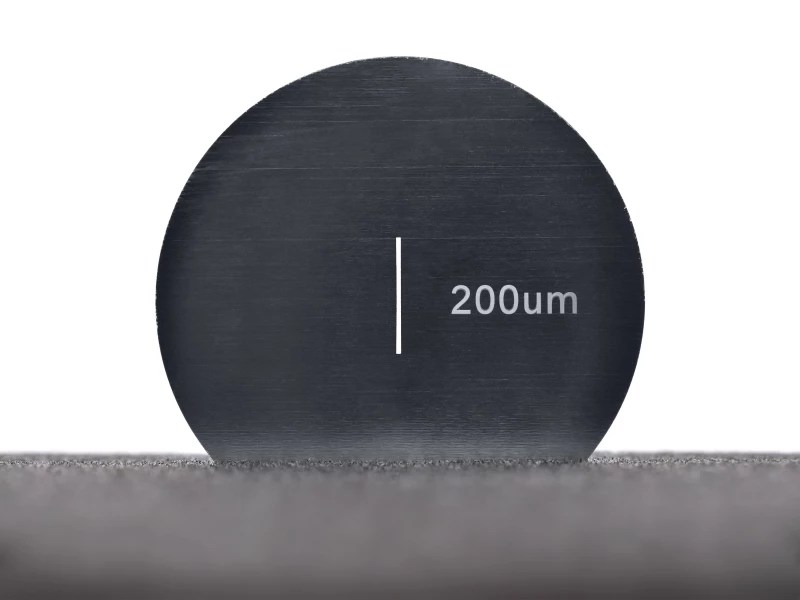

Precision Air Slit - 200um / 6mm
Specifications
| Slit Width: | 200 um |
|---|---|
| Slit Length: | 6 mm |
| Mounting: | Unmounted |
| Part Diameter: | 25.4 mm |
| Thickness: | 0.2 mm |
Download Data Sheet
Features
- Precision Air Slit: Designed for high-accuracy applications requiring precise air slits.
- Width: 200 µm - Ensures optimal performance with a finely tuned width.
- Length: 6 mm - Suitable for various optical setups and configurations.
- Substrate Diameter: 25.4 mm - Standard size for compatibility with a wide range of optical systems.
- Substrate Thickness: 0.2 mm - Provides a lightweight yet durable structure.
- Substrate Material: Aluminium - Offers excellent thermal conductivity and resistance to corrosion.
Applications
- High-Precision Optical Experiments: Ideal for use in laboratory settings where precise control of light is required.
- Laser Beam Profiling: Suitable for shaping and profiling laser beams in research and industrial applications.
- Spectroscopy: Can be used in spectrometers to improve resolution and accuracy by controlling the light path.
- Optical Alignment: Useful in aligning optical systems with high precision due to its consistent slit width.
- Microscopy: Enhances imaging quality by controlling the illumination in advanced microscopy techniques.
- Educational Demonstrations: Perfect for teaching optics and photonics concepts in educational institutions.
- Custom Optical Setups: Can be integrated into custom optical setups for specialized applications.
Frequently Asked Questions
What is the width of the Precision Air Slit?
What is the length of the Precision Air Slit?
What is the diameter of the substrate for the Precision Air Slit?
What is the thickness of the substrate for the Precision Air Slit?
What material is the substrate of the Precision Air Slit made from?
Where is DIY-Optics GmbH located?
What type of product is this datasheet describing?
