Description

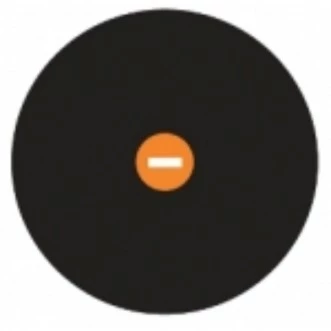

Introducing the L2 Metal Foil Mounted Aperture, a precision-engineered component designed for applications requiring the utmost accuracy. This aperture features a slit that is meticulously crafted to be 0.002mm (2μm) wide and 1mm long, ensuring exceptional precision in your projects. The aperture is constructed from high-quality copper foil, with one side expertly blackened to minimize reflections and enhance performance.
The L2 aperture is securely mounted in a circular holder made from black anodized aluminum, providing both durability and a sleek appearance. The foil itself has a diameter of 3mm, making it compact yet highly effective. This product is available in various mount diameters, including 12.7mm, 16mm, and 25mm, allowing for flexibility in integration with different systems.
With a tolerance of +/-0.5μm, the L2 Metal Foil Mounted Aperture guarantees consistent and reliable results, making it an ideal choice for precision-focused applications. Whether you are working in scientific research, industrial settings, or any field that demands high accuracy, this aperture is designed to meet your needs with excellence.
Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 2µm x 1mm – L2
Specifications
| Slit Width: | 2 um |
|---|---|
| Slit Length: | 1 mm |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
| Material: | Copper Foil, Blackened one side |
| Aperture Size: | 0.002mm (2μm) wide and 1mm long |
| Tolerance: | +/-0.5μm |
| Foil Dimension: | 3mm Diameter |
| Available Mount Diameters: | 12.7mm, 16mm or 25mm |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High Precision Aperture: The L2 Metal Foil Mounted Aperture features an ultra-narrow slit that is 0.002mm (2μm) wide and 1mm long, ensuring precise measurements and applications.
- Material Quality: Constructed from copper foil, with one side blackened to reduce reflections and enhance performance.
- Exacting Tolerance: Manufactured with a tolerance of +/-0.5μm, providing reliable and consistent results.
- Durable Mount: Comes with a circular holder made from black anodised aluminium, offering robust support and easy integration into various setups.
- Compact Foil Dimension: The foil has a diameter of 3mm, making it suitable for compact and precise applications.
- Versatile Mount Diameters: Available in multiple mount diameters of 12.7mm, 16mm, or 25mm to fit different equipment and requirements.
- Comprehensive Product Range: Part of a full range of L products, including:
- L2 Mounted Rectangular Slit, 0.002mm wide 1.0mm long - 04D00950
- L5 Mounted Rectangular Slit, 0.005mm wide 1.0mm long - 04D00951
- L10 Mounted Rectangular Slit, 0.01mm wide x 1.5mm long - 04D00952
- L25 Mounted Rectangular Slit, 0.025mm wide x 1.5mm long - 04D00953
- L50 Mounted Rectangular Slit, 0.05mm wide x 2mm long - 04D00954
- L100 Mounted Rectangular Slit, 0.1mm wide x 2mm long - 04D00955
- L250 Mounted Rectangular Slit, 0.25mm wide x 2mm long - 04D00956
Applications
- High-Precision Optical Experiments: The L2 Metal Foil Mounted Aperture is ideal for experiments requiring precise control of light passage, such as diffraction and interference studies.
- Laser Beam Shaping: Use the aperture to shape and size laser beams for various applications in research and development.
- Microscopy: Enhance imaging techniques by controlling the illumination and improving contrast in microscopic observations.
- Spectroscopy: The aperture can be used to limit the light entering a spectrometer, improving measurement accuracy.
- Calibration and Testing: Suitable for calibrating optical instruments and testing the resolution of imaging systems.
- Photonics Research: Essential for experiments in photonics where precise light manipulation is required.
- Educational Demonstrations: Perfect for demonstrating optical principles in educational settings, providing a hands-on learning experience.
Frequently Asked Questions
What is the material of the L2 Metal Foil Mounted Aperture?
What are the dimensions of the aperture in the L2 Metal Foil Mounted Aperture?
What is the tolerance of the L2 Metal Foil Mounted Aperture?
What is the size of the foil dimension in the L2 Metal Foil Mounted Aperture?
What are the available mount diameters for the L2 Metal Foil Mounted Aperture?
What is the material of the mount for the L2 Metal Foil Mounted Aperture?
What are some other products available in the L series?
