Targets

Description

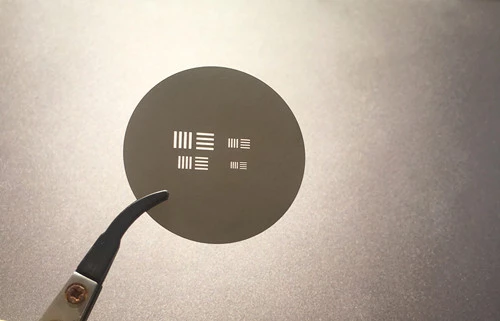

Walthy Precision Co., Ltd. offers a diverse range of custom targets designed for the characterization of visible and infrared optronic systems. These targets are meticulously crafted to meet specific requirements, with options for various patterns, sizes, and materials.

Whether mounted or unmounted, our targets provide reliable performance for thermal imagers, FLIR, and electro-optical testing applications. With customizable features such as slit width, length, diameter, and finish, we ensure precise results tailored to your needs.

Specifications

Slit Width:	5 um
Slit Length:	3 mm
Mounting:	Mounted, Unmounted
Part Diameter:	25.4 mm
Material:	304 stainless steel or Customized
Thickness:	0.05mm or customized
Slit Width Available:	5-1000um
Outer Diameter:	25.4mm or customized
Finish:	Blacked Or customized
Pinholes And Aperture:	Available

Download Data Sheet

Features

Custom Made: Targets available in a wide range of patterns and sizes

Flexible Specifications: Slit width ranging from 5 to 1000 μm, slit length of 3 mm

Mounting Options: Can be mounted or left unmounted for versatility

High-Quality Material: Constructed from 304 stainless steel or customized materials

Adjustable Thickness: Thickness of 0.05 mm or customized for optimal performance

Customizable Finish: Choose between blacked or customized finishes

Pinholes and Aperture: Available for additional testing versatility

Acceptable for Small Quantities: Ideal for projects of varying scales

Competitive Pricing: Affordable options without compromising quality

Applications

Used for testing thermal imagers and FLIR systems

Suitable for electro-optical testing and characterization

Ideal for research and development in the visible and infrared spectrum

Commonly employed in military, aerospace, and scientific applications

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Walthy Precision Co., Ltd.

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

Can the slits and pinholes be customized?

Yes, the slits and pinholes can be customized in terms of material, thickness, width, length, and finish.

What are the applications of the precision slits?

The precision slits can be used for optical systems, educational optical experiments, spectrophotometer image analysis, and spatial filtering.

What are the dimensions of the mounted slits and pinholes?

The mounted slits and pinholes have a slit width ranging from 5-1000µm and a slit length of 3mm or customized. The housing is black-anodized aluminum with Ø1″(25.4mm) outer diameter x 0.10″ (2.5mm) thick, but can be customized.

What are the optical slits/pinholes made of?

The optical slits/pinholes are photo-etched on a chromium-coated optical glass substrate and come in widths ranging from 5-1000μm. The substrate diameter is 25.4mm (1.0inch) and the thickness is 1.5mm or customized.

What are the targets made of?

The targets are made of various materials and come in different patterns and sizes, depending on the customer's needs.
