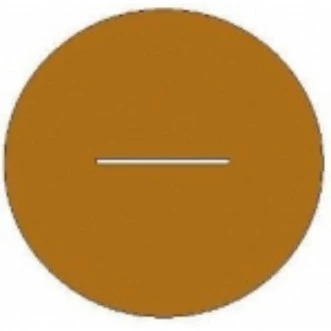

Graticules Optics, 10mm diameter electroformed air slit, 0.025mm (25μm) x 5mm aperture - LW25

Specifications

Slit Width: 25 um
Slit Length: 5 mm
Mounting: Unmounted
Part Diameter: 10 mm
Aperture Width: 0.025mm (25μm)
Aperture Length: 5mm
Material Diameter: 10mm
Material: Copper Foil
Tolerance: +/-1μm
Mount: Unmounted
Document icon Download Data Sheet Download icon

Features


  • High Precision Aperture: The LW25 Electroformed Metal Foil Aperture features a precise slit size of 0.025mm (25μm) wide x 5mm long, ensuring accurate and reliable performance in various applications.

  • Premium Material: Constructed from 10mm diameter copper foil, blackened on one side to enhance durability and reduce reflection.

  • Exacting Tolerances: Manufactured with a tolerance of +/-1μm, providing exceptional precision for demanding tasks.

  • Unmounted Design: The aperture is supplied unmounted, offering flexibility for integration into custom setups or existing systems.

  • Comprehensive Product Range: Part of the LW series, which includes a variety of foil slits with different dimensions to suit diverse requirements:

    • LW5 Foil Slit: 0.005mm wide x 3mm long

    • LW10 Foil Slit: 0.01mm wide x 3mm long

    • LW25 Foil Slit: 0.025mm wide x 5mm long

    • LW50 Foil Slit: 0.05mm wide x 5mm long

    • LW100 Foil Slit: 0.1mm wide x 7.5mm long

    • LW250 Foil Slit: 0.25mm wide x 7.5mm long

    • LW500 Foil Slit: 0.5mm wide x 7.5mm long

    • LW1000 Foil Slit: 1.0mm wide x 7.5mm long



Applications


  • Precision Optical Systems: The LW25 Electroformed Metal Foil Aperture is ideal for use in high-precision optical systems where exact aperture dimensions are critical.

  • Scientific Research: Suitable for scientific experiments requiring precise light control and measurement, such as spectroscopy and photonics research.

  • Laser Applications: Can be used in laser systems for beam shaping and control, ensuring accurate and consistent laser output.

  • Microscopy: Useful in microscopy applications where controlled illumination and precise aperture sizes are necessary for high-resolution imaging.

  • Calibration Tools: Acts as a calibration standard for optical instruments, providing a known aperture size for testing and alignment purposes.

  • Industrial Inspection: Employed in industrial settings for quality control and inspection processes that require precise light filtering and measurement.
