Description

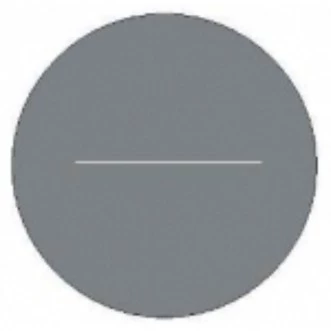

The LG5 Rectangular Optical Slit on Chrome Coated Glass is a precision-engineered component designed for applications requiring high accuracy and reliability. This optical slit features a meticulously crafted aperture size of 0.005mm (5μm) in width and 10mm in length, ensuring exceptional performance in various optical systems. The slit is manufactured using low reflective chrome on B270 glass, providing a robust and stable platform for precise optical measurements.
With a glass thickness of 1.52mm and a tolerance of +/-0.1mm, the LG5 slit offers a durable and consistent structure, essential for maintaining accuracy in demanding environments. The chrome coating boasts an optical density of OD4.0+, ensuring minimal light transmission and optimal performance in high-precision optical applications. Available in diameters of 12.7mm, 16mm, and 25.4mm, this optical slit can be seamlessly integrated into a variety of setups, accommodating diverse requirements and preferences.
The LG5 Rectangular Optical Slit is part of a comprehensive range of LG products, each designed to meet specific optical needs. This product line includes various slit sizes, such as the LG10, LG25, LG100, and LG200, each offering unique dimensions and specifications to cater to different applications. The LG5 slit stands out for its ultra-narrow width, making it an ideal choice for tasks that demand the highest level of precision and detail.
Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.005mm (5μm) x 10mm - LG5
Specifications
| Slit Width: | 12.7 um |
|---|---|
| Slit Length: | 10 mm |
| Mounting: | Unmounted |
| Part Diameter: | 12.7 mm |
| Material: | Low reflective chrome on B270 Glass |
| Aperture Size: | 0.005mm (5μm) wide and 10mm long |
| Tolerance: | +/-1.5μm |
| Glass Thickness: | 1.52mm, +/-0.1mm |
| Chrome Optical Density: | OD4.0+ |
| Available Diameters: | 12.7mm, 16mm + 25.4mm |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Material: Low reflective chrome on B270 glass ensures durability and precision.
- Aperture Size: 0.005mm (5μm) wide and 10mm long for high-resolution applications.
- Tolerance: +/-1.5μm, providing exceptional accuracy in measurements.
- Glass Thickness: 1.52mm with a tolerance of +/-0.1mm, offering robust support.
- Chrome Optical Density: OD4.0+ for superior light blocking capabilities.
- Available Diameters: Choose from 12.7mm, 16mm, and 25.4mm to fit various setups.
Applications
- Optical Calibration: The LG5 Rectangular Optical Slit is ideal for calibrating optical instruments due to its precise aperture size and high optical density.
- Spectroscopy: Use in spectroscopic applications where precise light control is necessary, thanks to its narrow 0.005mm slit width.
- Laser Beam Profiling: Suitable for laser beam profiling, allowing for accurate measurement of beam characteristics.
- Microscopy: Enhances microscopy techniques by providing a controlled light path, improving image clarity and resolution.
- Research and Development: Essential for R&D labs focusing on optics and photonics, offering reliable performance in experimental setups.
- Quality Assurance: Useful in quality assurance processes for testing and verifying optical components and systems.
