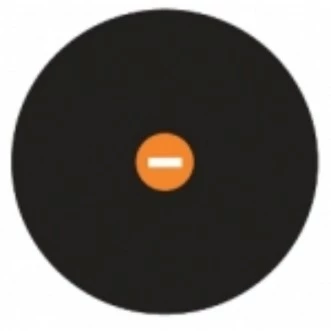

Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 100µm x 2mm – L100
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2019
Description
The L100 Mounted Rectangular Slit Aperture is a precision-engineered component designed for applications requiring high accuracy and reliability. This product features a slit aperture that is 0.1mm (100μm) wide and 2mm long, crafted from high-quality copper foil. One side of the foil is blackened to minimize reflections and enhance performance in optical systems. The meticulous construction ensures a tolerance of +/-3μm, making it suitable for demanding environments where precision is paramount.
The aperture is securely mounted in a circular holder made from black anodised aluminium, providing durability and a sleek appearance. The foil itself has a diameter of 3mm, ensuring a compact form factor that integrates seamlessly into various setups. The L100 is available in multiple mount diameters, including 12.7mm, 16mm, and 25mm, offering flexibility to fit different system requirements.
As part of a comprehensive range of mounted rectangular slits, the L100 stands out for its balance of size and precision. This product is ideal for users who need a reliable and consistent aperture size for their optical applications. Whether you are upgrading an existing system or designing a new one, the L100 provides the quality and performance you need.
Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 100µm x 2mm – L100
Specifications |
|
|---|---|
| Slit Width: | 100 um |
| Slit Length: | 2 mm |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
| Aperture Width: | 0.1mm (100μm) |
| Aperture Length: | 2mm |
| Material: | Copper Foil, Blackened one side |
| Tolerance: | +/-3μm |
| Foil Dimension: | 3mm Diameter |
| Available Mount Diameters: | 12.7mm, 16mm or 25mm |
Features
- High Precision Aperture: The L100 Mounted Rectangular Slit Aperture features a precise slit size of 0.1mm (100μm) wide by 2mm long, ensuring accurate and consistent performance.
- Material Quality: Constructed from copper foil with one side blackened, this aperture minimizes reflections and enhances measurement accuracy.
- Dimensional Accuracy: The aperture size is manufactured with a tolerance of +/-3μm, providing reliable and repeatable results.
- Durable Mounting: The aperture is securely mounted in a circular holder made of black anodised aluminium, offering durability and stability.
- Compact Foil Dimension: The foil has a diameter of 3mm, making it suitable for various applications requiring compact components.
- Versatile Mount Diameters: Available in three mount diameters: 12.7mm, 16mm, or 25mm, allowing for flexible integration into different systems.
- Comprehensive Product Range: Part of a full range of L products, including various slit sizes to meet diverse application needs, such as L2, L5, L10, L25, L50, and L250 models.
Applications
- Optical Experiments: Ideal for precision optical experiments requiring controlled light passage.
- Laser Applications: Suitable for laser beam shaping and alignment tasks.
- Microscopy: Useful in microscopy for controlling light exposure and enhancing image quality.
- Spectroscopy: Can be used in spectroscopic applications to isolate specific wavelengths.
- Calibration: Perfect for calibrating optical instruments due to its precise dimensions.
- Research and Development: Essential for R&D projects that require precise light control.
Frequently Asked Questions
The L100 Mounted Rectangular Slit Aperture is made of copper foil, blackened on one side.
The L100 aperture is 0.1mm (100μm) wide and 2mm long.
The tolerance for the L100 aperture size is +/-3μm.
The mount for the L100 aperture is made from black anodised aluminium.
The available mount diameters for the L100 aperture are 12.7mm, 16mm, or 25mm.
The foil dimension of the L100 aperture is 3mm in diameter.
Other products in the L series include L2, L5, L10, L25, L50, and L250, each with different slit dimensions.
