Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 25µm x 1.5mm – L25
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2019
Description
Introducing the L25 Mounted Rectangular Slit Aperture, a precision-engineered component designed to meet the exacting standards of scientific and industrial applications. This slit aperture features a meticulously crafted opening measuring 0.025mm (25μm) in width and 1.5mm in length, ensuring unparalleled accuracy and performance. The aperture is constructed from high-quality copper foil, which is blackened on one side to minimize reflections and enhance optical clarity.

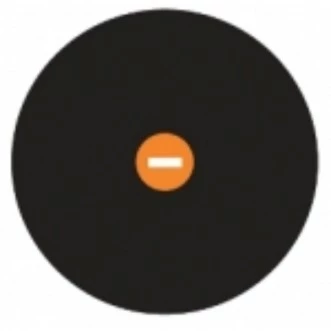

The L25 slit aperture is securely mounted in a circular holder made from black anodized aluminum, providing robust support and ease of integration into various systems. The foil itself has a diameter of 3mm, allowing for compatibility with a range of setups. The mount is available in three different diameters: 12.7mm, 16mm, and 25mm, offering flexibility to suit diverse mounting requirements.
Part of a comprehensive lineup of precision slit apertures, the L25 model stands out for its precise dimensions and reliable construction. Whether you are conducting high-precision experiments or require dependable components for industrial applications, the L25 Mounted Rectangular Slit Aperture delivers consistent performance and durability. Explore the full range of L products to find the perfect fit for your specific needs.
Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 25µm x 1.5mm – L25
Specifications |
|
|---|---|
| Slit Width: | 25 um |
| Slit Length: | 1.5 mm |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
Features
- Precision Aperture: The L25 Mounted Rectangular Slit Aperture features a precise slit size of 0.025mm (25μm) wide and 1.5mm long, ideal for high-precision applications.
- Material: Constructed from durable copper foil with a blackened finish on one side to minimize reflections and enhance performance.
- High Tolerance: Offers a tight tolerance of +/-1μm, ensuring reliable and consistent results in demanding environments.
- Robust Mounting: Comes with a circular holder made from black anodized aluminum, providing a sturdy and secure mount for the aperture.
- Foil Dimension: The aperture is mounted on a 3mm diameter foil, ensuring compactness and ease of integration into various systems.
- Versatile Mount Diameters: Available in multiple mount diameters of 12.7mm, 16mm, or 25mm to suit different equipment and setups.
- Comprehensive Product Range: Part of a full range of mounted rectangular slits, including options from 0.002mm to 0.25mm wide, catering to diverse application needs.
Applications
- Precision Optical Experiments: Ideal for applications requiring precise control of light passage, such as spectroscopy and laser experiments.
- Beam Shaping: Used in optical systems to shape and define laser beams for various scientific and industrial applications.
- Calibration Tools: Serves as a calibration standard for optical instruments that require high precision and accuracy.
- Microscopy: Enhances imaging techniques by controlling the amount and shape of light entering the microscope.
- Photolithography: Utilized in semiconductor manufacturing processes where precise light patterning is essential.
- Optical Alignment: Assists in aligning optical components by providing a defined light path.
- Research and Development: Supports R&D activities in fields such as physics, engineering, and material sciences where controlled light manipulation is necessary.
Frequently Asked Questions
The L25 Mounted Rectangular Slit Aperture is a precision aperture with a slit size of 0.025mm (25μm) wide and 1.5mm long, mounted in a circular holder made of black anodised aluminium.
The L25 aperture is made of copper foil, which is blackened on one side.
The foil used in the L25 aperture has a diameter of 3mm.
The available mount diameters for the L25 aperture are 12.7mm, 16mm, and 25mm.
The tolerance of the L25 aperture size is +/-1μm.
Blackening one side of the copper foil helps to reduce reflections and improve the aperture's performance in optical applications.
Other products in the L series include L2, L5, L10, L50, L100, and L250 mounted rectangular slits, each with different slit dimensions.
