Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 50µm x 2mm – L50
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2019
Description

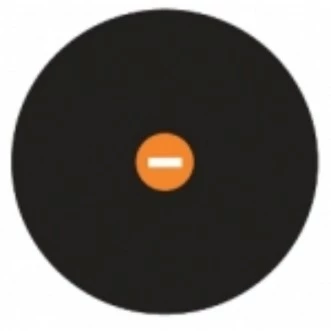

The L50 Mounted Rectangular Slit Aperture is a precision-engineered component designed for applications requiring high accuracy and reliability. This aperture features a slit that is 0.05mm (50μm) wide and 2mm long, making it ideal for tasks that demand fine resolution and precision. The slit is crafted from high-quality copper foil, which is blackened on one side to minimize reflections and enhance performance in optical setups.
Encased in a robust circular holder made from black anodized aluminum, the L50 aperture is both durable and lightweight. The foil itself has a diameter of 3mm, ensuring a compact form factor that is easy to integrate into various systems. The aperture is available in multiple mount diameters, including 12.7mm, 16mm, and 25mm, providing flexibility to suit different mounting requirements.
With a tolerance of +/-2μm, the L50 Mounted Rectangular Slit Aperture guarantees precise measurements and consistent results. This product is part of a comprehensive range of mounted rectangular slits, each designed to meet specific needs. Whether you require a smaller or larger aperture size, the L series offers a variety of options to accommodate diverse applications.
Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 50µm x 2mm – L50
Specifications |
|
|---|---|
| Slit Width: | 50 um |
| Slit Length: | 2 mm |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
Features
- Precision Aperture: The L50 Mounted Rectangular Slit Aperture features a precise slit size of 0.05mm (50μm) wide and 2mm long, ideal for high-accuracy applications.
- High-Quality Material: Constructed from copper foil with one side blackened to minimize reflections and enhance performance.
- Exacting Tolerance: Manufactured with a tolerance of +/-2μm, ensuring consistent and reliable results.
- Durable Mounting: Comes with a circular holder made from black anodised aluminium, providing robust support and easy integration.
- Compact Foil Dimension: The foil is designed with a 3mm diameter, making it suitable for various setups.
- Versatile Mount Diameters: Available in three different mount diameters: 12.7mm, 16mm, and 25mm, offering flexibility for different equipment and setups.
- Comprehensive Product Range: Part of a full range of mounted rectangular slits, including sizes from 0.002mm to 0.25mm wide, catering to diverse application needs.
Applications
- Optical Experiments: Ideal for use in optical experiments where precise light control is necessary.
- Laser Applications: Suitable for laser beam shaping and profiling due to its precise slit dimensions.
- Microscopy: Can be used in microscopy setups to control the illumination path and enhance image contrast.
- Spectroscopy: Useful in spectroscopic applications for controlling the light entering the spectrometer.
- Calibration: Acts as a calibration tool for optical instruments requiring high precision.
- Research and Development: Applicable in R&D settings for experiments requiring controlled light passage.
Frequently Asked Questions
The L50 Mounted Rectangular Slit Aperture is made of copper foil, blackened on one side.
The L50 aperture is 0.05mm (50μm) wide and 2mm long.
The tolerance of the L50 aperture size is +/-2μm.
The mount for the L50 aperture is made of black anodised aluminium.
The available mount diameters for the L50 aperture are 12.7mm, 16mm, or 25mm.
The foil dimension of the L50 aperture is 3mm in diameter.
Other products in the L series include L2, L5, L10, L25, L100, and L250 mounted rectangular slits with varying dimensions.
