Description

Introducing the LG10 Rectangular Optical Slit on Chrome Coated Glass, a precision-engineered component designed to meet the highest standards of optical performance. This slit features a meticulously crafted aperture measuring 0.01mm (10μm) wide by 10mm long, making it ideal for applications requiring exceptional accuracy and consistency. The slit is constructed from low reflective chrome on B270 glass, ensuring minimal light interference and optimal clarity.

The LG10 slit is manufactured with a tolerance of +/-1.5μm, guaranteeing precise measurements and reliable results in demanding optical environments. The glass substrate has a thickness of 1.52mm, with a tolerance of +/-0.1mm, providing a robust and stable platform for the chrome coating. With an optical density of OD4.0+, this slit offers superior light attenuation, making it suitable for a wide range of optical applications.

Available in diameters of 12.7mm, 16mm, and 25.4mm, the LG10 slit can be easily integrated into various optical systems. Its versatility and precision make it an essential component for professionals in fields such as spectroscopy, photonics, and optical engineering. Experience the quality and reliability of the LG10 Rectangular Optical Slit on Chrome Coated Glass, and elevate your optical projects to new levels of excellence.

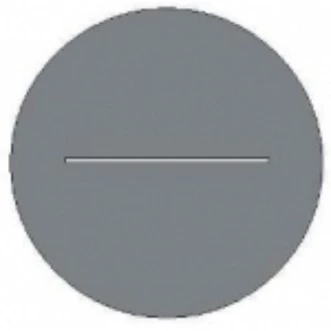

Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.01mm (10μm) x 10mm - LG10

Specifications

Slit Width: 12.7 um
Slit Length: 10 mm
Mounting: Unmounted
Part Diameter: 12.7 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Material: Low reflective chrome on B270 Glass
  • Aperture Size: 0.01mm (10μm) wide and 10mm long
  • Tolerance: +/-1.5μm
  • Glass Thickness: 1.52mm, +/-0.1mm
  • Chrome Optical Density: OD4.0+
  • Available Diameters: 12.7mm, 16mm, and 25.4mm

Applications

  • Optical Calibration: The LG10 Rectangular Optical Slit is ideal for calibrating optical instruments due to its precise aperture size and low reflective chrome coating.
  • Spectroscopy: Use in spectroscopic applications where precise light control and measurement are required.
  • Laser Beam Profiling: Suitable for profiling laser beams, ensuring accurate beam width and alignment.
  • Microscopy: Enhance microscopy techniques by providing a controlled light path for better image clarity.
  • Research and Development: Essential for R&D applications that require precise optical components for experimental setups.
  • Quality Control: Implement in quality control processes to ensure the accuracy and precision of optical systems.

Frequently Asked Questions

What is the LG10 Rectangular Optical Slit?
The LG10 Rectangular Optical Slit is a slit made of low reflective chrome on B270 glass, measuring 0.01mm (10μm) wide and 10mm long.
What are the dimensions of the LG10 slit?
The LG10 slit is 0.01mm (10μm) wide and 10mm long.
What is the tolerance of the LG10 slit?
The tolerance of the LG10 slit is +/-1.5μm.
What is the thickness of the glass used in the LG10 slit?
The glass thickness for the LG10 slit is 1.52mm, with a tolerance of +/-0.1mm.
What is the optical density of the chrome coating on the LG10 slit?
The chrome coating on the LG10 slit has an optical density of OD4.0+.
What are the available diameters for the LG10 slit?
The available diameters for the LG10 slit are 12.7mm, 16mm, and 25.4mm.
What other similar products are available in the LG series?
Other products in the LG series include the LG5 (0.005mm wide), LG25 (0.025mm wide), LG100 (0.1mm wide), and LG200 (0.2mm wide) chrome on glass slits.
