Description
Introducing the L10 Mounted Rectangular Slit Aperture, a precision-engineered component designed to meet the exacting standards of modern optical applications. This slit aperture features a meticulously crafted opening measuring 0.01mm (10μm) wide by 1.5mm long, ensuring unparalleled accuracy and performance. The aperture is constructed from high-quality copper foil, with one side expertly blackened to minimize reflections and enhance optical clarity.

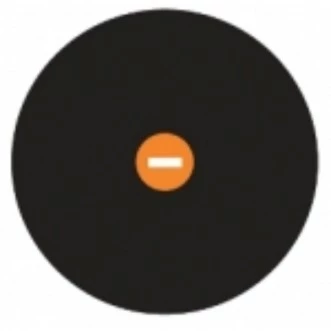

The L10 slit aperture is securely mounted in a circular holder made from black anodised aluminium, providing robust support and durability. The foil itself has a diameter of 3mm, making it suitable for a variety of precision applications. The mount is available in three different diameters: 12.7mm, 16mm, and 25mm, offering flexibility to fit various setups and requirements.
With a tolerance of +/-0.5μm, the L10 Mounted Rectangular Slit Aperture is designed to deliver consistent and reliable performance. This product is part of a comprehensive range of mounted rectangular slits, each offering unique specifications to cater to diverse needs. Whether you require the ultra-fine precision of the L2 model or the larger dimensions of the L250, our selection ensures you can find the perfect solution for your optical challenges.
Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 10µm x 1.5mm – L10
Specifications |
|
|---|---|
| Slit Width: | 10 um |
| Slit Length: | 1.5 mm |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
Features
- Precision Aperture: The L10 Mounted Rectangular Slit Aperture features a precise size of 0.01mm (10μm) wide and 1.5mm long, ideal for high-precision applications.
- Material: Constructed from durable copper foil, blackened on one side to minimize reflections and enhance performance.
- Tolerance: Offers a tight tolerance of +/-0.5μm, ensuring consistent and reliable results.
- Mounting: Comes with a circular holder made from black anodized aluminum, providing robust support and easy integration into systems.
- Foil Dimension: The foil is mounted on a 3mm diameter holder, ensuring stability and precision.
- Available Mount Diameters: Choose from 12.7mm, 16mm, or 25mm to suit various equipment and setups.
- Product Range: Part of a comprehensive range of mounted rectangular slits, including options from 0.002mm to 0.25mm wide, catering to diverse application needs.
Applications
- Optical Experiments: Ideal for precision optical experiments requiring controlled light passage.
- Laser Beam Shaping: Useful in shaping and defining laser beams for various applications.
- Spectroscopy: Can be used in spectroscopic instruments to control light entry.
- Microscopy: Enhances imaging by controlling light exposure in microscopic applications.
- Calibration: Suitable for calibrating optical instruments due to precise aperture dimensions.
- Research and Development: Essential for R&D projects that require precise light manipulation.
Frequently Asked Questions
The L10 Mounted Rectangular Slit Aperture is a precision aperture with a slit size of 0.01mm (10μm) wide and 1.5mm long, made from copper foil that is blackened on one side.
The L10 aperture is made from copper foil, which is blackened on one side.
The L10 aperture slit is 0.01mm (10μm) wide and 1.5mm long.
The tolerance of the L10 aperture slit size is +/-0.5μm.
The available mount diameters for the L10 aperture are 12.7mm, 16mm, or 25mm.
The foil dimension of the L10 aperture is 3mm in diameter.
The circular holder of the L10 aperture is made from black anodised aluminium.
