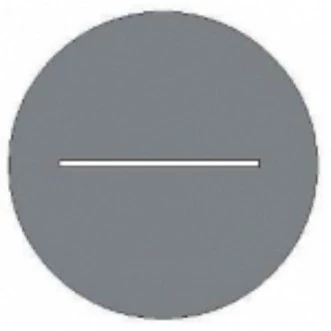

Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.025mm (25μm) x 10mm - LG25
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2019
Description
The LG25 Rectangular Optical Slit on Chrome Coated Glass is a precision-engineered component designed for applications requiring high accuracy and reliability. This optical slit features a width of 0.025mm (25μm) and a length of 10mm, making it ideal for precise optical measurements and experiments. The slit is crafted from low reflective chrome on B270 glass, ensuring minimal light interference and maximum performance in demanding optical environments.
Manufactured with meticulous attention to detail, the LG25 slit boasts a tolerance of +/-1.5μm, providing exceptional precision for scientific and industrial applications. The glass substrate has a thickness of 1.52mm with a tolerance of +/-0.1mm, offering a robust and stable platform for the optical slit. The chrome coating achieves an optical density of OD4.0+, ensuring superior light blocking capabilities and enhanced contrast for accurate measurements.
Available in diameters of 12.7mm, 16mm, and 25.4mm, the LG25 slit offers versatility to suit various optical setups and configurations. This product is part of a comprehensive range of LG optical slits, each designed to meet specific requirements and applications. Whether for research, development, or production, the LG25 Rectangular Optical Slit on Chrome Coated Glass provides the precision and reliability needed for cutting-edge optical work.
Graticules Optics, Rectangular Optical Slit on Chrome Coated Glass – 0.025mm (25μm) x 10mm - LG25
Specifications |
|
|---|---|
| Slit Width: | 25 um |
| Slit Length: | 10 mm |
| Mounting: | Unmounted |
| Part Diameter: | 12.7 mm |
| Material: | Low reflective chrome on B270 Glass |
| Aperture Size: | 0.025mm (25μm) wide and 10mm long |
| Tolerance: | +/-1.5μm |
| Glass Thickness: | 1.52mm, +/-0.1mm |
| Chrome Optical Density: | OD4.0+ |
| Available Diameters: | 12.7mm, 16mm + 25.4mm |
Features
- Material: Low reflective chrome on B270 Glass
- Aperture Size: 0.025mm (25μm) wide and 10mm long
- Tolerance: +/-1.5μm
- Glass Thickness: 1.52mm, +/-0.1mm
- Chrome Optical Density: OD4.0+
- Available Diameters: 12.7mm, 16mm, and 25.4mm
Applications
- Optical Experiments: Ideal for precision optical experiments requiring narrow slits.
- Spectroscopy: Used in spectroscopic applications to isolate specific wavelengths of light.
- Calibration: Serves as a calibration standard for optical instruments.
- Microscopy: Enhances contrast and resolution in microscopic imaging.
- Laser Applications: Suitable for laser beam shaping and alignment.
- Educational Purposes: Useful in educational settings for demonstrating optical principles.
- Research and Development: Essential for R&D in fields requiring precise optical components.
Frequently Asked Questions
The aperture size of the LG25 Rectangular Optical Slit is 0.025mm (25μm) wide and 10mm long.
The LG25 Rectangular Optical Slit is made from low reflective chrome on B270 glass.
The tolerance for the aperture size of the LG25 is +/-1.5μm.
The glass thickness of the LG25 is 1.52mm, with a tolerance of +/-0.1mm.
The chrome optical density on the LG25 is OD4.0+.
The available diameters for the LG25 are 12.7mm, 16mm, and 25.4mm.
Other available LG products include LG5 (0.005mm wide), LG10 (0.01mm wide), LG100 (0.1mm wide), and LG200 (0.2mm wide).
