Description
Introducing the L5 Mounted Rectangular Slit Aperture, a precision-engineered component designed to meet the exacting standards of scientific and industrial applications. This aperture features a slit that is 0.005mm (5μm) wide and 1mm long, providing unparalleled accuracy and consistency. Crafted from high-quality copper foil, it is blackened on one side to minimize reflections and enhance performance in optical systems.
The L5 aperture is securely mounted in a circular holder made from black anodized aluminum, ensuring durability and stability. The foil itself has a diameter of 3mm, while the mount is available in three different diameters: 12.7mm, 16mm, or 25mm, allowing for versatile integration into various setups. The precise manufacturing process ensures a tolerance of +/-0.5μm, making it ideal for applications requiring high precision.
This product is part of a comprehensive range of mounted rectangular slits, each designed to cater to different specifications and requirements. Whether you need a slit as narrow as 0.002mm or as wide as 0.25mm, our selection provides the flexibility to choose the perfect fit for your needs. The L5 Mounted Rectangular Slit Aperture stands out for its meticulous construction and reliable performance, making it an essential component for professionals seeking precision and quality.

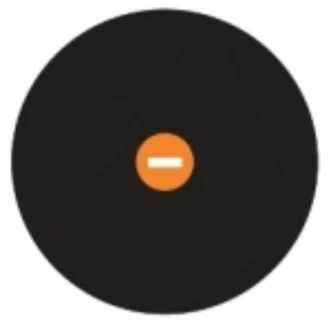

Graticules Optics, 3mm diameter Mounted Rectangular Foil Slits, 5µm x 1mm – L5
Specifications
| Slit Width: | 5 um |
|---|---|
| Slit Length: | 1 mm |
| Mounting: | Mounted |
| Part Diameter: | 12.7 mm |
| Material: | Copper Foil, Blackened one side |
| Aperture Size: | 0.005mm (5μm) wide and 1mm long |
| Tolerance: | +/-0.5μm |
| Mount: | Circular Holder in Black Anodised Aluminium |
| Foil Dimension: | 3mm Diameter |
| Available Mount Diameters: | 12.7mm, 16mm or 25mm |
Download Data Sheet
Features
- High Precision Aperture: The L5 Mounted Rectangular Slit Aperture features a precise slit size of 0.005mm (5μm) wide and 1mm long, ideal for applications requiring high accuracy.
- Material: Constructed from durable copper foil, blackened on one side to minimize reflections and enhance performance.
- Tight Tolerance: Offers a tolerance of +/-0.5μm, ensuring reliable and consistent results.
- Robust Mounting: Comes with a circular holder made from black anodized aluminum, providing a sturdy and secure mount.
- Foil Dimension: The aperture is mounted on a 3mm diameter foil, ensuring compact and efficient design.
- Versatile Mount Diameters: Available in three different mount diameters: 12.7mm, 16mm, or 25mm, to suit various equipment and setups.
- Comprehensive Product Range: Part of a full range of mounted rectangular slits, including:
- L2 Mounted Rectangular Slit, 0.002mm wide 1.0mm long - 04D00950
- L5 Mounted Rectangular Slit, 0.005mm wide 1.0mm long - 04D00951
- L10 Mounted Rectangular Slit, 0.01mm wide x 1.5mm long - 04D00952
- L25 Mounted Rectangular Slit, 0.025mm wide x 1.5mm long - 04D00953
- L50 Mounted Rectangular Slit, 0.05mm wide x 2mm long - 04D00954
- L100 Mounted Rectangular Slit, 0.1mm wide x 2mm long - 04D00955
- L250 Mounted Rectangular Slit, 0.25mm wide x 2mm long - 04D00956
Applications
- Precision Optical Experiments: Ideal for applications requiring precise control over light passage, such as diffraction experiments and optical alignment.
- Laser Beam Shaping: Useful in shaping laser beams for specific applications, ensuring a narrow and controlled beam profile.
- Spectroscopy: Can be used in spectroscopic setups to isolate specific wavelengths or to control the light path.
- Microscopy: Enhances imaging techniques by providing a controlled aperture for light entry, improving resolution and contrast.
- Calibration: Serves as a standard for calibrating optical instruments and ensuring measurement accuracy.
- Research and Development: Essential for R&D in fields like photonics, where precise light manipulation is crucial.
Frequently Asked Questions
What material is the L5 Mounted Rectangular Slit Aperture made of?
What are the dimensions of the L5 aperture?
What is the tolerance of the L5 aperture size?
What is the foil dimension of the L5 aperture?
What are the available mount diameters for the L5 aperture?
What is the material of the mount for the L5 aperture?
What are some other products in the L series?
