Description
Our premium selection of optical materials is crafted to meet the highest standards of precision and quality, offering exceptional performance across a wide range of applications. Each material is meticulously manufactured to ensure a diameter tolerance of +0.0''/-.010'' and a thickness tolerance of ±.010''. This precise engineering guarantees that our products deliver reliable and consistent results, no matter the complexity of your optical system.
Featuring an outstanding wedge surface figure of less than 3 arc minutes and a surface quality of 40/20 or better, these materials provide superior optical clarity and minimal distortion. The impressive surface flatness of λ/40 at 10.6µm for infrared wavelengths further enhances their performance. With a surface quality exceeding 85%, you can trust in the exceptional light transmission and minimal scattering offered by these optical components.
Our collection includes a variety of materials such as ZnSe, ZnS, Ge, Silicon, CaF2, Sapphire, Fused Silica, SF, and BK7. Each material is designed to cater to specific wavelength ranges and is available with a CA chamfer of .01'' to .03'' at 45°, ensuring a perfect fit for your optical assembly. Whether you require spherical lenses, cylindrical lenses, or flats/plano surfaces, our products are engineered to meet your precise specifications.
For specialized applications, our coatings offer narrowband and broadband options across infrared (IR), ultraviolet (UV), visible (VIS), and near-infrared (NIR) spectra. These coatings deliver exceptional anti-reflective properties, with reflectance values as low as R ≤ 0.25% for narrowband UV/VIS/NIR and R ≤ 0.5% for broadband VIS/NIR. Laserline coatings are also available, providing reflectance levels of R ≥ 99.5% in IR and R ≥ 99.7% in UV/VIS/NIR, ensuring optimal performance for laser applications.
Please note that the specifications provided are intended for reference only and may vary based on dimensions and specific customer requirements. Our commitment to quality and precision ensures that each optical component is tailored to meet the unique demands of your project.
RMI Parallel Windows - CaF2 - IR Grade CaF2 - MgF2 - BaF2
Specifications |
|
|---|---|
| Substrate Material: | CaF2, IR Grade CaF2, MgF2, BaF2 |
| Antireflection Coating: | Coated, Uncoated |
| Surface Quality: | 20-10 scratch-dig |
| Surface Flatness: | lambda/4 |
| Diameter And Thickness: | Custom |
Features
- Wide Material Selection: ZnSe, ZnS, Ge, Si, CaF2, Sapphire, Fused Silica, SF, BK7 for versatile applications
- High Surface Accuracy: Up to λ/40 @ 10.6 µm ensuring precise wavefront control
- Excellent Surface Quality: 10/5 to 40/20 scratch-dig for low scatter and high optical performance
- Tight Dimensional Tolerances: Diameter +0.0”/-0.010”; thickness ±0.010” for manufacturing precision
- Low Wedge Error: Less than 3 arc minutes for beam deviation control
- Broad Coating Options: AR, HR, metal, dichroic coatings from UV to IR with R ≥ 99.7% reflectivity
- High Transmission Efficiency: >85% typical across material and coating combinations
- Custom Coating Types: Narrowband, broadband, laser line, SWP/LWP, beam splitters, polarizers, and retarders available
Applications
- Laser Optics: Ideal for high-reflectivity or low-loss transmission in IR and VIS laser systems
- Infrared Imaging Systems: Suitable for thermal imaging and sensing applications using ZnSe, Ge, or Si optics
- Spectroscopy: Provides precise optical performance for UV, VIS, and IR spectroscopy instruments
- Beam Manipulation: Used in polarizers, phase retarders, and beam splitters for beam control
- Optical Instrumentation: Integrated into precision metrology, measurement, and analytical devices
- Research and Development: Enables advanced optical experiments with tight tolerances and custom coatings
Frequently Asked Questions
Parallel Windows are well suited for applications in which angular deviation of the transmitted beam must be kept as small as possible.

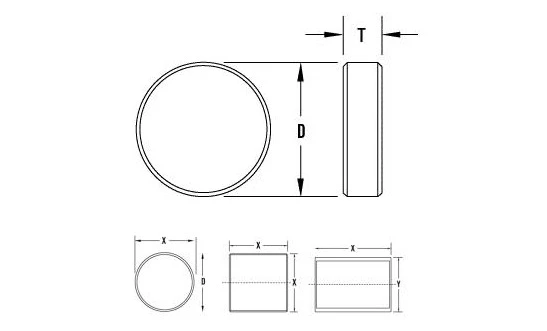

Round, square, and rectangular windows are available in a wide range of size and shape specifications.
Parallel Windows are similar to Plane Windows, but with parallel surfaces.
The surface quality of CaF2 Parallel Windows is greater than 85%.
The thickness tolerance of the Parallel Windows is ±.010''.
