Description
The High-Precision MgF₂ (Magnesium Fluoride) Window is an essential optical component designed for both UV and infrared (IR) applications. With exceptional transmission properties across a wide spectral range, from ultraviolet (UV) to infrared (IR), this window is ideal for use in spectroscopic instruments, laser systems, and advanced optical imaging. MgF₂ offers excellent durability, resistance to mechanical and thermal stress, and minimal birefringence, making it an excellent choice for high-performance optical systems.
The windows can be customized with diameters up to 160 mm and thicknesses up to 50 mm to suit specific application requirements. With options for crystallographic orientations (<100>, <111>, <110>) and surface flatness polished to Lambda/10, these windows provide the precision and quality needed for critical optical applications. The MgF₂ window is widely used in UV lasers, IR spectroscopy, and imaging systems for both research and industrial applications.

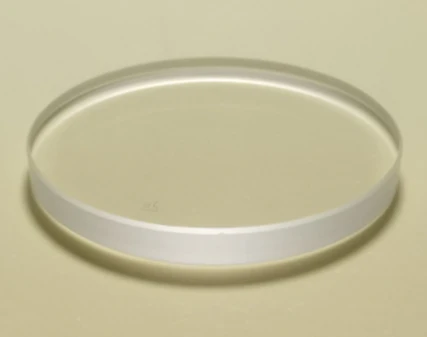

High-Precision MgF₂ Window for UV and IR Optics
Specifications
| Substrate Material: | MgF2 |
|---|---|
| Antireflection Coating: | Coated, Uncoated |
| Diameter: | 160 mm |
| Surface Quality: | 10-5 scratch-dig, 20-10 scratch-dig |
| Surface Flatness: | lambda/10, lambda/8, lambda/6, lambda/4, lambda/2, 1 lambda |
| Thickness: | Not Specified |
| Applications: | UV Optics, IR Optics, Spectroscopy, Laser Systems, Imaging |
Download Data Sheet
Features
- Wide Spectral Range: Excellent transmission from UV to IR, making it suitable for a variety of optical systems
- Customizable Dimensions: Diameters available up to 160 mm and thicknesses up to 50 mm to meet specific design needs
- Durable MgF₂ Material: Manufactured from high-purity MgF₂ (Magnesium Fluoride) for superior mechanical and thermal stability
- Multiple Orientations: Available in crystallographic orientations <100>, <111>, and <110> for optimized performance
- High Surface Flatness: Polished to Lambda/10 flatness for minimal distortion and high accuracy in precision optics
- Low Birefringence: Low birefringence properties ensure clarity and accuracy in imaging and laser systems
Applications
- UV Optics: Ideal for ultraviolet (UV) optical systems where high transmission and minimal absorption are critical
- Infrared Optics: Provides excellent performance in infrared (IR) applications such as spectroscopy and thermal imaging
- Laser Systems: Suitable for use in UV and IR laser systems where durability and high transmission are required
- Spectroscopy Instruments: Perfect for both UV and IR spectroscopy, offering high optical clarity across the wavelength range
- Aerospace and Defense: Used in high-performance optical systems in aerospace and defense, requiring radiation resistance and thermal stability
- R&D Applications: Commonly used in research labs for high-precision optical experiments involving UV and IR wavelengths
Frequently Asked Questions
What is the main use of MgF₂ windows?
MgF₂ windows are primarily used in UV and IR optics, including spectroscopy, laser systems, and imaging applications.
What is the spectral range of MgF₂ windows?
MgF₂ windows offer excellent transmission from ultraviolet (UV) to infrared (IR) wavelengths, making them highly versatile for optical systems.
What are the available size options for MgF₂ windows?
MgF₂ windows are available in custom diameters up to 160 mm and thicknesses up to 50 mm to fit specific optical requirements.
What is the flatness specification of the MgF₂ windows?
These windows are polished to a Lambda/10 flatness, ensuring minimal distortion and high precision in demanding optical applications.
What crystallographic orientations are available?
MgF₂ windows are available in crystallographic orientations <100>, <111>, and <110> to meet different application needs.
Are MgF₂ windows suitable for high-power laser systems?
Yes, MgF₂ windows are ideal for UV and IR laser systems due to their low birefringence and excellent optical properties across a wide spectral range.
What makes MgF₂ windows resistant to environmental stress?
MgF₂ is known for its mechanical and thermal stability, making it durable in harsh environments, including temperature fluctuations and radiation exposure.
What industries commonly use MgF₂ windows?
MgF₂ windows are used in industries such as aerospace, defense, research & development, spectroscopy, and laser systems.
How does MgF₂ compare to other optical materials for UV/IR optics?
MgF₂ provides superior transmission in UV and IR, and its low birefringence and durability make it an excellent choice for high-precision optics.
