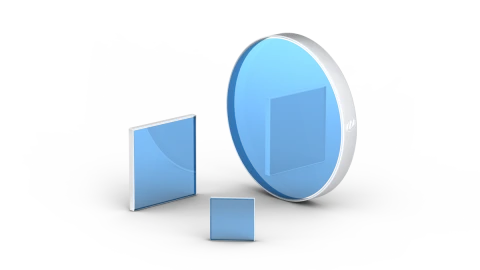

Thumbnail of PP-UVFS-25.4-6.35-AR43-AR43 UVFS Fused Silica Laser Window 25.4mm photo 1
Thumbnail of PP-UVFS-25.4-6.35-AR43-AR43 UVFS Fused Silica Laser Window 25.4mm photo 2

Description

The OPTOMAN PP-UVFS-25.4-6.35-AR43-AR43 is a precision UV fused silica optical window designed for 355 nm ultraviolet laser systems. Manufactured from Corning 7980 0F substrate, this 25.4 mm diameter, 6.35 mm thick window combines excellent optical quality with an IBS anti-reflective coating on both surfaces.

The AR43 coating provides less than 0.1% reflectance at 355 nm at normal incidence, while the 10-5 scratch-dig finish, λ/10 surface flatness, low transmitted wavefront distortion, and parallelism below 3 arcmin support accurate UV beam transmission. With a specified LIDT of 7.5 J/cm² at 355 nm for 20 ns pulses, it is suitable for demanding third-harmonic Nd:YAG and other 355 nm laser applications.

PP-UVFS-25.4-6.35-AR43-AR43 UVFS Fused Silica Laser Window 25.4mm

Visit the Optoman Store

Specifications

Substrate Material: UV Grade Fused Silica (UVFS))
Design Wavelength 1: 355 nm
Diameter (or Largest Dimension): 25.4 mm
Thickness: 6.35 mm
Clear Aperture (CA): 22.36 %
Antireflection Coating: Coated
Surface Quality (Scratch-Dig): 10-5
Surface Flatness: <= Lambda/10
Transmitted Wavefront Distortion (TWFD) @ 633nm Or Per Manufacturer: <= Lambda/10
Manufacturer Part Number (MPN): PP-UVFS-25.4-6.35-AR43-AR43
FindLight SKU: FL-24775

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Corning 7980 0F UV fused silica substrate
  • 25.4 mm nominal optical diameter
  • 6.35 mm nominal thickness
  • IBS anti-reflection coating on both surfaces
  • Optimized for 355 nm ultraviolet lasers
  • Less than 0.1% reflectance at 355 nm
  • 10-5 scratch-dig surface quality
  • Surface flatness of λ/10 or better at 633 nm
  • Transmitted wavefront distortion of λ/10 or better
  • Parallelism below 3 arcmin

Applications

  • 355 nm UV Laser Systems
  • Third-Harmonic Nd:YAG Laser Systems
  • UV Laser Beam Delivery
  • UV Beam Conditioning
  • Ultraviolet Laser Micromachining
  • Precision UV Material Processing
  • Laser-Based Semiconductor Processing
  • UV Optical Diagnostics
  • Scientific UV Instrumentation
  • Photonics Research and Development

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.9000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the PP-UVFS-25.4-6.35-AR43-AR43?
The PP-UVFS-25.4-6.35-AR43-AR43 is a UV fused silica laser window with a 25.4 mm diameter, 6.35 mm thickness, and dual-sided IBS anti-reflective coating optimized for 355 nm laser transmission.
What wavelength is this UVFS optical window optimized for?
The AR43 coating is optimized for 355 nm ultraviolet laser applications, providing less than 0.1% reflectance on each surface at 0° angle of incidence.
What material is used for the optical window?
The window uses Corning 7980 0F fused silica, selected for high-quality UV optical transmission and demanding laser applications.
What is the laser damage threshold of this 355 nm window?
The specified laser-induced damage threshold is 7.5 J/cm² at 355 nm for 20 ns pulses at 20 Hz under the stated S-on-1 test conditions.
Which laser systems can use this 355 nm optical window?
This UVFS window is suitable for third-harmonic Nd:YAG laser systems, UV beam delivery and conditioning systems, micromachining equipment, and scientific photonics applications operating at 355 nm.

Got more questions? Use the inquiry form to ask the supplier directly.
